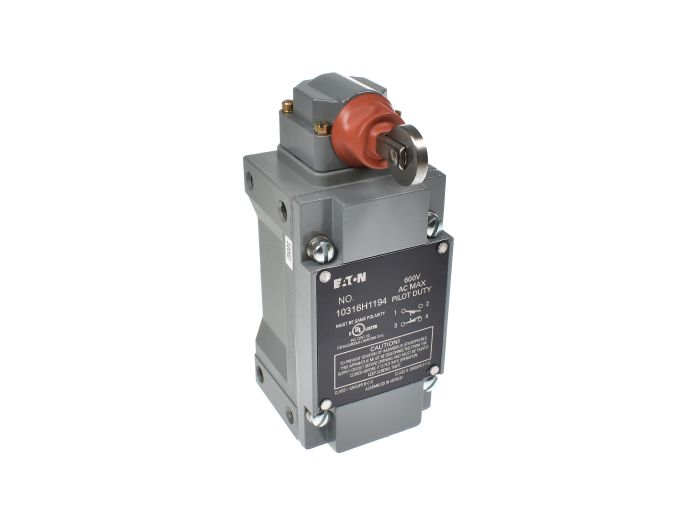

Eaton 10316H1194 Hazardous Location Limit Switch Side Push Vertical Roller

Product Description

The Eaton 10316H1194 hazardous location limit switch features a side push vertical roller and a die-cast aluminum enclosure. It supports a maximum AC current of 10A and a maximum DC current of 0.2A, with a 1NO-1NC contact configuration. This switch is suitable for hazardous environments requiring robust and reliable performance.

• Die-cast aluminum enclosure for durability
• Maximum AC current: 10A, Maximum DC current: 0.2A
• 1NO-1NC contact configuration with screw terminals

Product Highlights

Hazardous location limit switch with side push vertical roller and die-cast aluminum enclosure. Ideal for environments requiring robust and reliable performance.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: 10316H1194

Technical Specifications

• Product Name: Eaton 10316 hazardous location limit switch
• Catalog Number: 10316H1194
• UPC: 782113451732
• Product Length/Depth: 3.22 in
• Product Height: 5 in
• Product Width: 2.25 in
• Product Weight: 1.6813 lb
• Warranty: 1 year
• Compliances: CE Marked
• Certifications: UL Listed CSA Certified
• Catalog Notes: 1N.O.-1N.C. contacts must be same polarity when both circuits are used - 1N.O.-1N.C. contacts have isolated poles and may be used on opposite polarity. Contact factory for availability of CSA & CE approval status.
• Product Type: Hazardous location limit switch
• Contact Rating: 10A at 600Vac, 0.2A at 125Vdc
• Enclosure material: Die cast aluminum
• Connection: Screw terminal
• Contact configuration: 1 NO-1 NC
• Switch type: Side push vertical roller
• Operating temperature - max: 200 °F
• Operating temperature - min: -20 °F
• Environmental rating: NEMA 7 Division I Class I BCD, NEMA 9 Division I Class II EFG
• Maximum AC current: 10 A
• Maximum DC current: 0.2 A
• Component: Limit Switch
• (Instrument-Sensor) NEMA Protection: NEMA 9
• Manufacturer: Eaton
• Product Series: 10316
• Family Series: Eaton Limit Switches, 10316 Series
• Actuator Type: Side Roller Plunger
• Contacts: 1NO/1NC
• Connection Type: Screw Terminals
• Material: Aluminum
• Net Weight: 1.765 lbs
• Gross Weight: 1.905 lbs
