Eaton 10316H119 Cutler Hammer Limit Switch

Product Description

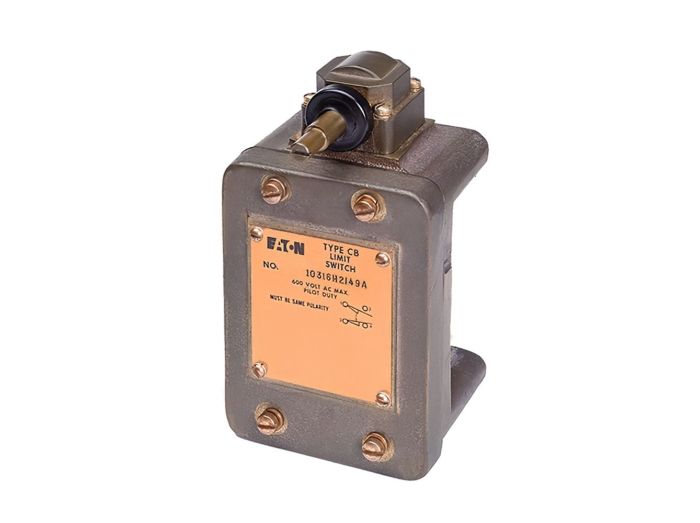

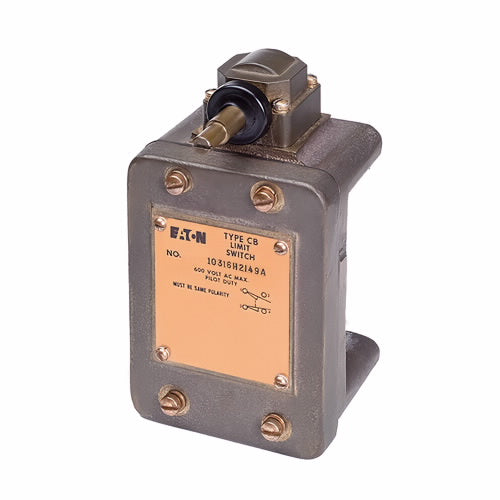

The EATON 10316H119 Cutler Hammer Limit Switch is a type PS precision limit switch with a roller lever and a zinc-plated steel enclosure. It is designed for various special-purpose industrial applications. The switch features a 1NO-1NC contact configuration and screw terminals.

• Roller lever with top and right-hand mounting bracket
• 40A Make, 15A Break max AC, 0.5A Make, 0.5A Break max DC
• Steel, Zinc Plated enclosure

Product Highlights

This precision limit switch is suitable for cabinet door interlock and heavy-duty special-purpose applications.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: 10316H119
• Country of Origin: US

Technical Specifications

• Alternate Mfr Part Number: 10316H119
• Brand: Eaton - Cutler Hammer
• Manufacturer Part Number: 10316H119
• Action: Snap
• Connection Type: Screw
• Contact Rating: 40/15 A at 120 VAC, 0.5 A at 120 VDC
• Finish: Zinc Plated
• Material: Steel
• Power Rating: 1/2 hp
• Series: 10316
• Size: 2.19 in L x 0.97 in W x 2.81 in H
• Type: Type PS Cabinet Door Interlock Heavy Duty Special Purpose
• Voltage Rating: 600 VAC/VDC
• Actuator: Roller Lever
• Contact Configuration: 1NO-1NC
• Number of Poles: 1
• Family Series: Eaton Limit Switches
• Contacts: 1NO/1NC
• Net Weight: 0.2 lbs
• Gross Weight: 0.25 lbs
• Product Length/Depth: 2.25 in
• Product Height: 5.79 in
• Product Width: 2.25 in
• Product Weight: 1.6813 lb
• Warranty: 1 year
• Compliances: CE Marked
• Certifications: UL Listed CSA Certified
• Catalog Notes: 1N.O.-1N.C. contacts must be same polarity when both circuits are used - 1N.O.-1N.C. contacts have isolated poles and may be used on opposite polarity. Contact factory for availability of CSA & CE approval status.
• Product Type: Hazardous location limit switch
• Enclosure material: Die cast aluminum
• Switch type: Adjustable top pushbutton
• Operating temperature - max: 200 °F
• Operating temperature - min: -20 °F
• Environmental rating: NEMA 7 Division I Class I BCD, NEMA 9 Division I Class II EFG
• Maximum AC current: 10 A
• Maximum DC current: 0.2 A
• Max. Ac Amps: 40A Make, 15A Break
• Max. Dc Amps: 0.5A Make, 0.5A Break
• Connection: Screw terminal
