Eaton 10250TS37 10250T Standard Legend Plate Square

Product Description

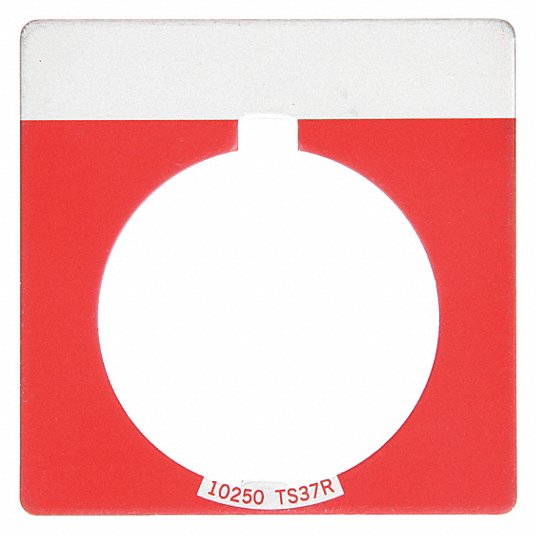

The EATON 10250TS37 standard legend plate is designed for use with the 10250T series of pushbutton operators and indicating lights. This square legend plate features a blank legend and a red field with white lettering. It is suitable for heavy-duty, watertight, and oiltight applications.

• Used with 10250T Series, Pushbutton Operators and Indicating Lights
• Square plate shape
• Made of aluminum

Product Highlights

The EATON 10250TS37 legend plate is ideal for industrial control panels requiring durable and clearly marked components.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: 10250TS37
• Country of Origin: Dominican Republic

Technical Specifications

• Product Name: Eaton 10250T pushbutton legend plate
• Catalog Number: 10250TS37
• UPC: 782113360560
• Product Length/Depth: 1.7 in
• Product Height: 1.7 in
• Product Width: 1.7 in
• Compliances: CE Marked
• Certifications: UL Listed CSA Certified
• Catalog Notes: Has a satin aluminum field. Color is on lower portion.
• Product Type: Legend Plate
• Used with: 10250T series, pushbutton operators and indicating lights
• Special features: Used with 10250T Series, Pushbutton Operators and Indicating Lights
• Type: Standard
• Series: 10250T
• Field color: Red
• Legend: Blank
• Lettering color: White
• Size: Square
• Height: 1.77 in
• Legend Color: White
• Material: Aluminum
• Plate Shape: Square
• Standard & Approvals: ARRA Compliant, Buy American Act Compliant, RoHS Compliant, UL 508 E131568, CSA C22.2 No. 14 - LR68551, CE EN 60947-5-1 and 60947-5-5
• Catalog ID: C-H10250TS37
• Operator Type: Pushbutton/Indicating Light
• Application: Heavy Duty Watertight/Oiltight Applications
• Overall Height: 1-3/4 in
• Overall Width: 1-3/4 in
• Panel Mounting Hole Diameter: 30 mm
• Shape: Square
• Manufacturer: Eaton Electrical
• Accessory Type: Legend Plate
• For Use With/Related Products: 10250T Series
• Packaging: Bag
• Brand: EATON
• UNSPSC: 39121512
• Primary Type: Pushbutton
• UPC Code: 782113360560
• Compatible with Series: 10250T
• Background Color: Red
• Keyway Type: Notch
• Part Status: Active
