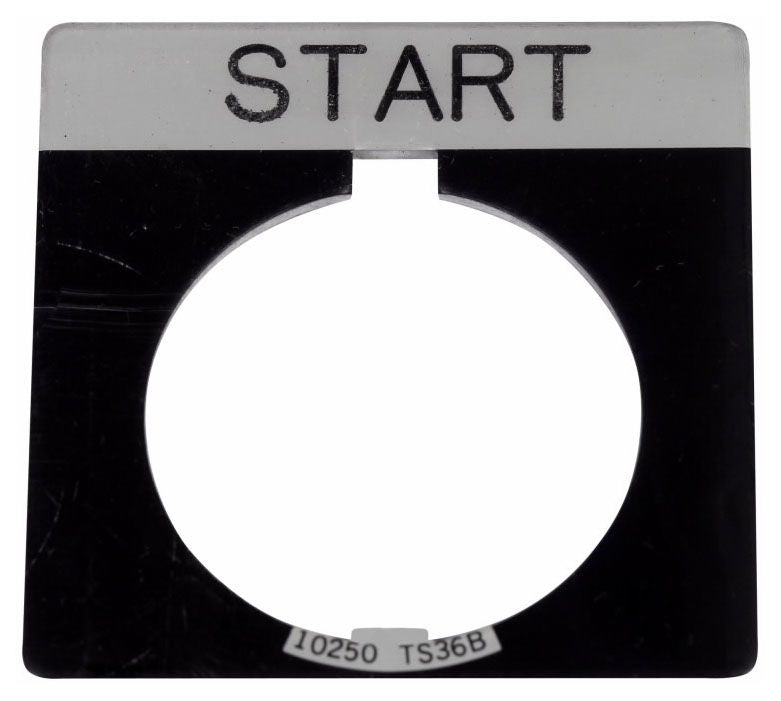

Eaton 10250TS36 Standard Type Legend Plate 30.5mm

Product Description

The EATON 10250TS36 is a standard-type legend plate designed for use with 30.5mm push button operator stations. This small but essential panel component provides a labeled identification surface on control station assemblies, helping operators and technicians quickly identify switch functions in industrial and commercial electrical control enclosures. The plate is engineered to fit within the 10250T series push button family and is installed by electricians and panel builders during control station assembly or field service. Its compact profile keeps flush-mounted stations clean and clearly marked on the panel face.

This legend plate is suited for use in industrial control panels, motor control centers, and operator interface stations in commercial and light industrial environments. It is a standard fitment component used during new panel builds as well as replacement service when existing legend plates are damaged, faded, or need relabeling for updated equipment functions. Panel shops and field electricians working on 30.5mm push button stations will encounter this part frequently.

Key Features

• Standard-type legend plate for 30.5mm push button operator stations
• Compact low-profile form factor at 0.1 inches depth
• Part of the EATON 10250T series control station accessory family
• Designed for easy installation without special tooling
• Clear identification surface for control panel operator guidance

Compatibility

Designed as a standard-type legend plate replacement for 30.5mm push button operator stations in the EATON 10250T series control station product family.

Installation Notes

Installation is performed by a licensed electrician or qualified panel technician. Always de-energize and lockout/tagout the control panel before servicing any push button station components, in accordance with NFPA 70E safe work practices. The legend plate snaps or secures into the operator station housing and requires no special tooling. Verify the plate seats flush against the panel surface before returning the station to service.

Technical Specifications

• Series: 10250T Standard Type
• Operator Size: 30.5mm
• Dimensions (L x W x H): 1.7 inches x 1.7 inches x 0.1 inches
• Weight: 0.01 pounds
• UPC: 78211336055

Standard Information

• Brand: EATON
• Manufacturer Part Number: 10250TS36
