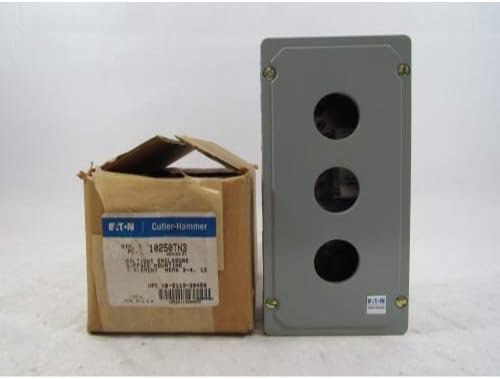

Eaton 10250TN3 Enclosure 3 Element

Product Description

The Eaton 10250TN3 is a push button enclosure with a heavy-duty rating. It features a 30.5 mm, heavy-duty watertight/oiltight design and a die-cast bus. This enclosure is surface mounted and contains three elements. It has a NEMA rating of 4, 4X, 12, and 13.

• Heavy duty rating
• Surface mounting type
• Nema rating of 4, 4X, 12, 13

Product Highlights

The Eaton 10250TN3 enclosure is ideal for industrial applications requiring robust and reliable push button solutions.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: 10250TN3
• Country of Origin: USA

Technical Specifications

• Product Name: Eaton 10250T pushbutton
• Catalog Number: 10250TN3
• UPC: 782113204581
• Product Length/Depth: 8.1 in
• Product Height: 4.2 in
• Product Width: 4.4 in
• Product Weight: 1.75 lb
• Compliances: CE Marked
• Certifications: CSA Certified UL Listed
• Product Type: Pushbutton
• Type: 30.5 mm, Heavy-Duty Watertight/Oiltight
• Bus material: Zinc die cast
• Series: 10250T Series
• Mounting method: Surface
• Rating: NEMA 12 NEMA 4 NEMA 13 NEMA 4X
• Number of elements: 3
• Product category: Enclosure
• Brand: Eaton
• Style: Compact
• Finish Type: Painted
• Item Weight: 1.8 Pounds
• Specification Met: NEMA 4
• Material: 10250TN3
• Mounting Type: Surface Mount
• Approval: UL, CSA, CE
• Nema Rating: 4, 4X, 12, 13
• Length (in): 8.1
• Width (in): 4.4
• Height (in): 4.2
• Standards: EN60947-5-1
• Duty Rating: Heavy-Duty
• Mpn: 10250TN3
• Upc: 782113204581
• Gtin: 00782113204581
• Approximate Height: 4 in
• Approximate Width: 8.00 in
• Configuration: 3 Hole
• Cover Mounting: Lift-Off
• Dimensions: 4.20 in H X 1.75 in W X 8.10 in L
• Enclosure Mounting: Desktop
• Hole Size: 30 mm
• Manufacturer Part Number: 10250TN3
• Aluminum: Aluminum
• Number of Holes: 3
• Size: Small in
• Weight: 1.75 lb
• IP/NEMA Rating: NEMA 4X, NEMA 12, NEMA 13, NEMA 4
