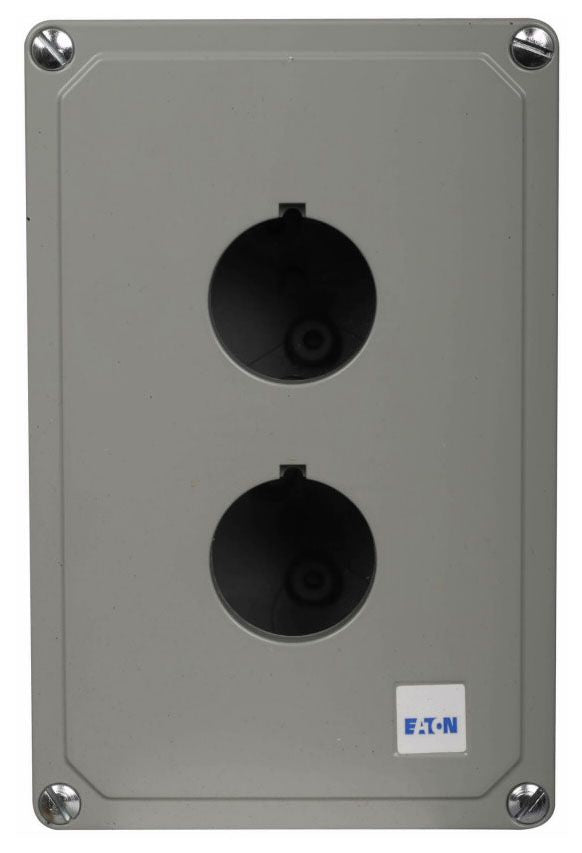

Eaton 10250TN2 Die-cast Enclosure

Product Description

The EATON 10250TN2 is a die-cast enclosure designed for industrial control and electrical applications. Built from die-cast material, it provides a rugged housing suitable for mounting pilot devices, pushbuttons, and related control components in demanding environments. At 2.5 pounds and measuring 6.2 inches by 5.2 inches by 3.9 inches, it offers a compact, solid-construction form factor. Licensed electricians and industrial maintenance technicians are the primary installers of this type of enclosure.

This enclosure is suited for use in industrial, commercial, and heavy-duty electrical control panel applications. It is typically installed where a durable, rigid housing is required to protect control devices from mechanical impact, vibration, or environmental exposure. The die-cast construction makes it appropriate for both indoor and select outdoor installations where a robust enclosure is specified.

Key Features

• Die-cast construction provides high mechanical strength and durability
• Compact footprint at 6.2 inches x 5.2 inches x 3.9 inches
• Lightweight at 2.5 pounds for easier handling during installation
• Designed to house pilot devices and industrial control components

Compatibility

Designed as an OEM-style replacement or direct-fit enclosure for industrial control stations requiring die-cast housing in standard configurations.

Installation Notes

Installation should be performed by a qualified electrician in accordance with applicable NEC requirements. Disconnect and lock out all power to the control circuit before mounting or wiring components inside the enclosure. Use appropriate hardware to secure the enclosure to its mounting surface, ensuring a flush and stable fit. Verify that all conduit entries and fittings are properly sealed per job specifications before energizing the circuit.

Technical Specifications

• Material: Die-Cast
• Dimensions (L x W x H): 6.2 inches x 5.2 inches x 3.9 inches
• Weight: 2.5 pounds
• UPC: 78211320457

Standard Information

• Brand: EATON
• Manufacturer Part Number: 10250TN2
