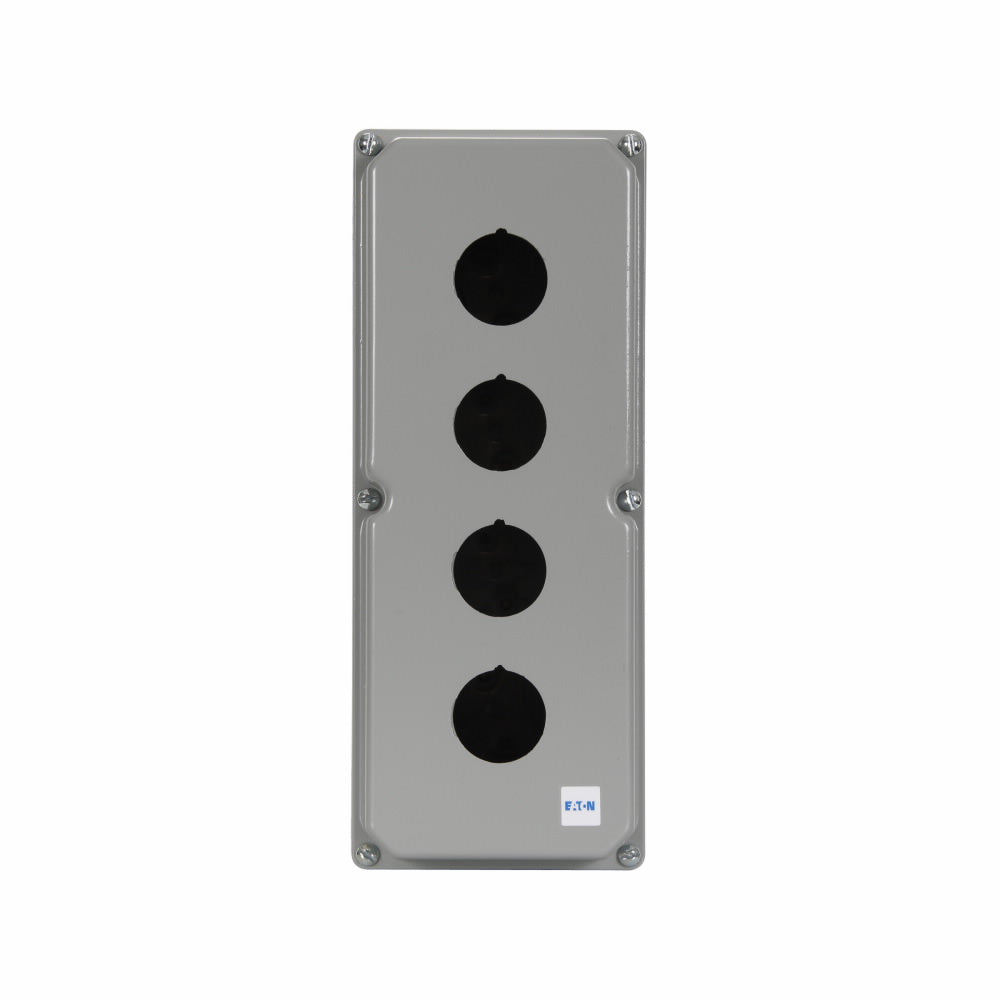

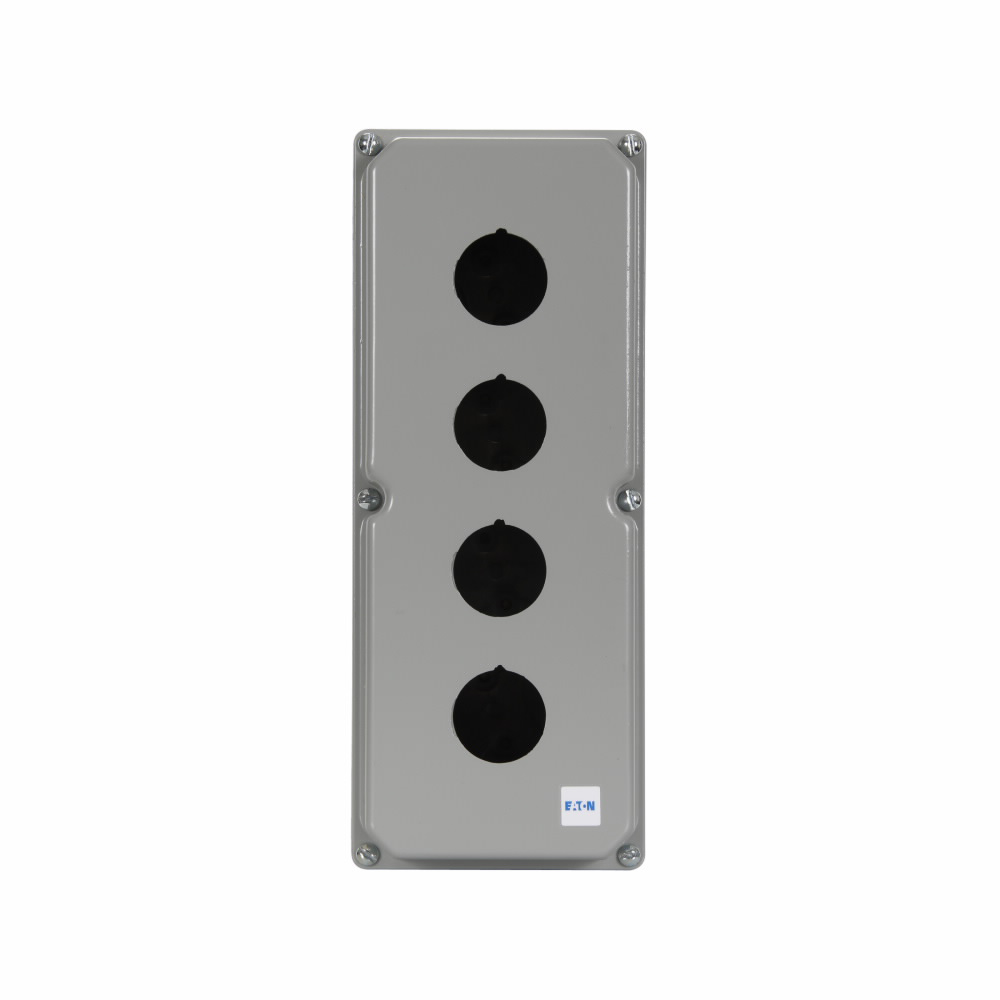

EATON 10250TN14 ENCLOSURE PUSHBUTTON 4-ELEMENT OILTIGHT/WATERTIGHT NEMA 4/4X/12/13

Product Description

The EATON 10250TN14 enclosure is a pushbutton device designed for harsh environments. It features a robust heavy-duty oiltight and watertight construction. This enclosure is suitable for use in various applications including automation and control equipment.

• Dimensions: 9.9 inches long, 5.9 inches wide, 5.1 inches deep
• Meets NEMA 4, 4X, 12, and 13 ratings for water and dust resistance
• Constructed from die cast zinc for durability

Product Highlights

This EATON pushbutton enclosure is ideal for protecting electrical components in outdoor and industrial settings. The zinc die cast body adds strength while ensuring reliable performance.

Product Information

Standard Information

• Manufacturer: EATON
• MPN: 10250TN14

Technical Specifications

• Type: 4-Element Heavy Duty Oiltight/Watertight
• Length: 9.9 inches
• Width: 5.9 inches
• Depth: 5.1 inches
• NEMA Rating: NEMA 4/4X/12/13
• Material: Die Cast Zinc
• Mounting Type: Surface
• Temperature Rating: 1 to 150 deg F
