Eaton 10250TM29 Legend Plate RESET

Product Description

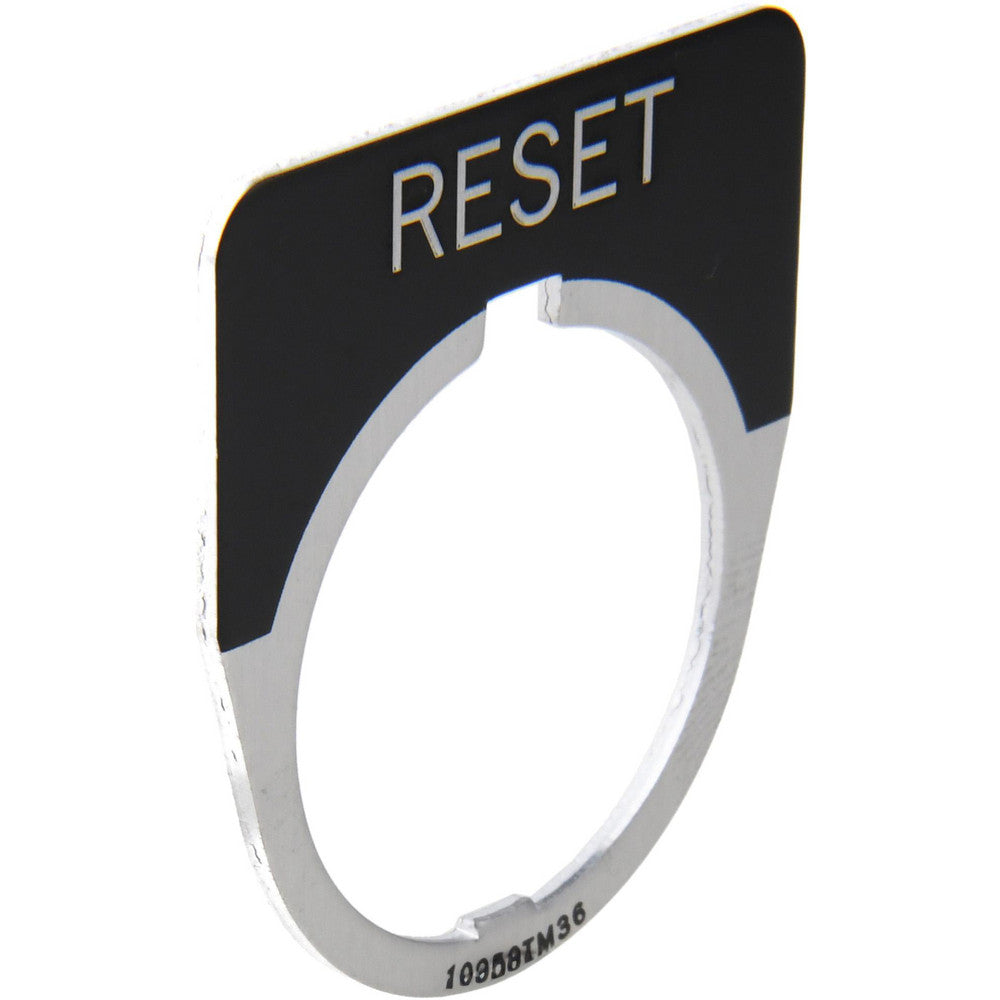

The Eaton 10250TM29 is a pushbutton legend plate from the 10250T series. This standard, half-round black plate features a "RESET" legend in white letters. It is designed for use with 10250T series pushbutton operators and indicating lights. The plate's reliability nibs improve contact reliability, even under dry circuit and fine dust conditions.

• Used with 10250T Series, Pushbutton Operators and Indicating Lights
• Features enclosed silver contacts with pointed reliability nibs
• 3/16 in H letter

Product Highlights

The EATON 10250TM29 legend plate is a half round plate for 30.5mm selector switches and roto-push operators.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: 10250TM29
• Country of Origin: Dominican Republic

Technical Specifications

• Catalog Number: 10250TM29
• UPC: 782113203621
• Product Length/Depth: 1.7 in
• Product Height: 0.1 in
• Product Width: 1.7 in
• Product Type: Pushbutton accessory
• Used with: 10250T series, pushbutton operators and indicating lights
• Special features: Used with 10250T Series, Pushbutton Operators and Indicating Lights
• Type: Standard
• Series: 10250T
• Field color: Black
• Legend: RESET
• Letter size: 3/16 in high
• Lettering color: White
• Product category: Legend plate
• Size: 1/2 round
• Brand: Eaton
• Model: 10250TM29
• MPN: 10250TM29
• Legend Plate Type: Legend Plate
• Legend Markings: Reset
• Legend Plate Shape: Half-Round
• Background Color: Black
• For Use With: Indicating Lights; Pushbutton Operators
• UNSPSC Code: 39122216
• Country of Origin: Dominican Republic
• Material: Aluminum
• Application: For use with 10250T Series, pushbutton operators and indicating lights, automation and logic control equipment applications
• Legend Color: White
• Operator Type: Pushbutton
• Width: 1.7
• Height: 0.1
• UNSPSC: 39122221
• Compatible with Series: 10250T
• Keyway Type: Notch
• Language: English
• Overall Height: 1-3/4 in
• Overall Width: 1-3/4 in
• Panel Mounting Hole Diameter: 30 mm
• Shape: Half-Round
