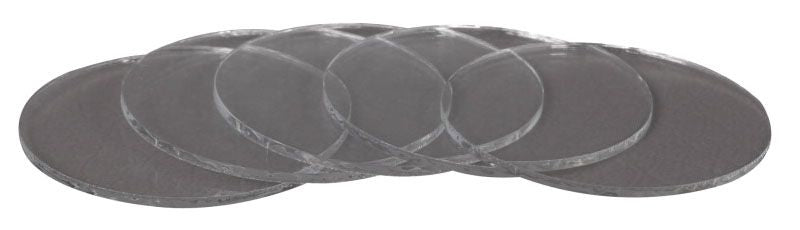

Eaton 10250TGL Break Glass Type Actuator

Product Description

The EATON 10250TGL is a break glass type actuator designed for use in emergency control and safety interlock applications. This device requires the operator to break a protective glass element to activate the switch mechanism, providing a clear physical indication that the control has been used. It is commonly installed in industrial and commercial control panels where emergency stop or access control functions require a tamper-evident, single-use activation method. Electricians and controls technicians are the primary installers of this device.

The 10250TGL is suited for industrial control stations, machine panels, and safety circuits in commercial or light industrial environments. It functions as a push-button actuator replacement or addition within the Eaton 10250T operator series control station lineup, where a break glass mechanism is required by site safety protocols or code compliance.

Key Features

• Break glass activation provides tamper-evident, single-use emergency operation
• Compact form factor fits standard 10250T series control station cutouts
• Lightweight construction at 0.04 pounds for easy panel integration
• Physical indication of prior activation aids post-incident inspection
• Designed for emergency stop and safety interlock control applications

Compatibility

Designed as an OEM-style actuator replacement or addition compatible with Eaton 10250T series control stations and operator enclosures.

Installation Notes

Installation should be performed by a qualified electrician in accordance with applicable NEC requirements and local codes. De-energize the control panel and lock out or tag out all power sources before installing or replacing the actuator. Verify that the replacement glass element, if required, is properly seated before returning the station to service. Do not bypass or modify the break glass mechanism.

Technical Specifications

• Weight: 0.04 pounds
• Length: 2.0 inches
• Width: 1.9 inches
• Height: 2.2 inches

Standard Information

• Brand: EATON
• Manufacturer Part Number: 10250TGL
