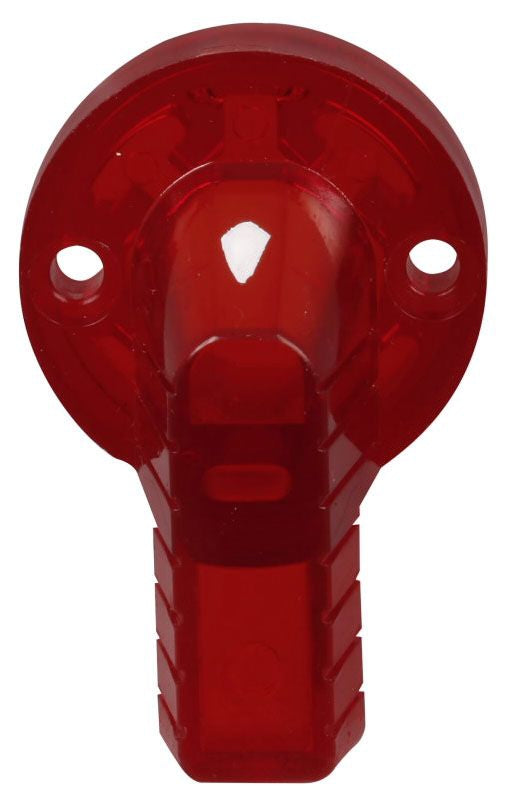

Eaton 10250TFR Cap Type 30.5mm Pilot Device Cap

Product Description

The EATON 10250TFR is a cap-type pilot device accessory designed for 30.5mm operator assemblies used in industrial control panels and operator interface stations. This protective cap fits over push button or selector switch operators to provide a physical guard against accidental actuation and environmental contamination. Electricians and panel builders install this component during new panel construction or as a retrofit on existing operator stations. It is a compact, lightweight fitting suited for demanding industrial environments where reliable operator protection is required.

The 10250TFR is used in industrial and commercial control panel applications where 30.5mm pilot device operators are installed. Typical installations include motor control centers, machine control panels, and operator interface enclosures. The cap style designation indicates it is intended as an accessory overlay for compatible 30.5mm operator bodies in the EATON 10250T series pilot device family.

Key Features

• Cap-type design provides physical protection for 30.5mm pilot device operators
• Lightweight construction at 0.010 pounds for minimal added load on operator assemblies
• Compact footprint measuring 1.7 inches long by 1.1 inches wide by 0.8 inches tall
• Designed for use with 30.5mm operator series pilot devices in industrial control applications

Compatibility

Designed as an OEM-style accessory cap for 30.5mm pilot device operators in industrial control panel assemblies.

Installation Notes

Installation is performed by a qualified electrician following applicable NFPA 79 or NEC guidelines for industrial control panel wiring. De-energize and lock out the control panel before servicing or replacing any pilot device components. Ensure the cap seats fully and securely on the operator body before returning the panel to service.

Technical Specifications

• Operator Size: 30.5mm
• Length: 1.7 inches
• Width: 1.1 inches
• Height: 0.8 inches
• Weight: 0.010 pounds
• UPC: 78211330196

Standard Information

• Brand: EATON
• Manufacturer Part Number: 10250TFR
