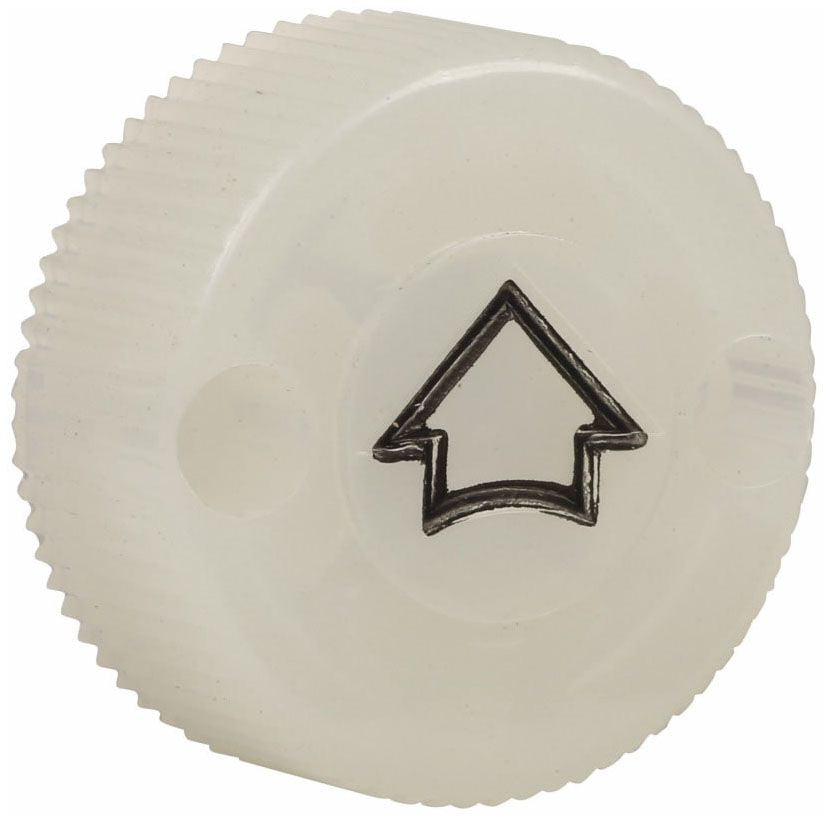

Eaton 10250TEW Operator Legend Plate

Product Description

The EATON 10250TEW is an operator legend plate designed for use with industrial control devices. Legend plates provide clear labeling for pushbutton operators, selector switches, and similar control station components, helping technicians and operators quickly identify control functions on panels and enclosures. This part is a direct accessory component typically installed by electricians and industrial maintenance personnel during control station assembly or retrofit work.

This legend plate is suited for use in industrial and commercial control panel applications where clear operator identification is required. It is compatible with the 10250T series control station product line, fitting standard 30mm operator cutouts used in machine control, motor control centers, and similar panel configurations.

Key Features

• Designed for use with 10250T series industrial control station operators
• Provides clear labeling for pushbutton or selector switch functions
• Supports organized, code-compliant panel layouts
• Lightweight construction for easy installation on control enclosures

Compatibility

Designed as an OEM-style accessory for use with EATON 10250T series control station operators in industrial panel applications.

Installation Notes

Installation should be performed by a qualified electrician. De-energize and lock out the control panel before servicing or replacing any operator components. Legend plates are typically snapped or fastened into the operator assembly without special tools. Follow applicable NEC requirements for industrial control panel labeling and wiring practices.

Technical Specifications

• Weight: 0.01 pounds
• UPC: 78211322388

Standard Information

• Brand: EATON
• Manufacturer Part Number: 10250TEW
