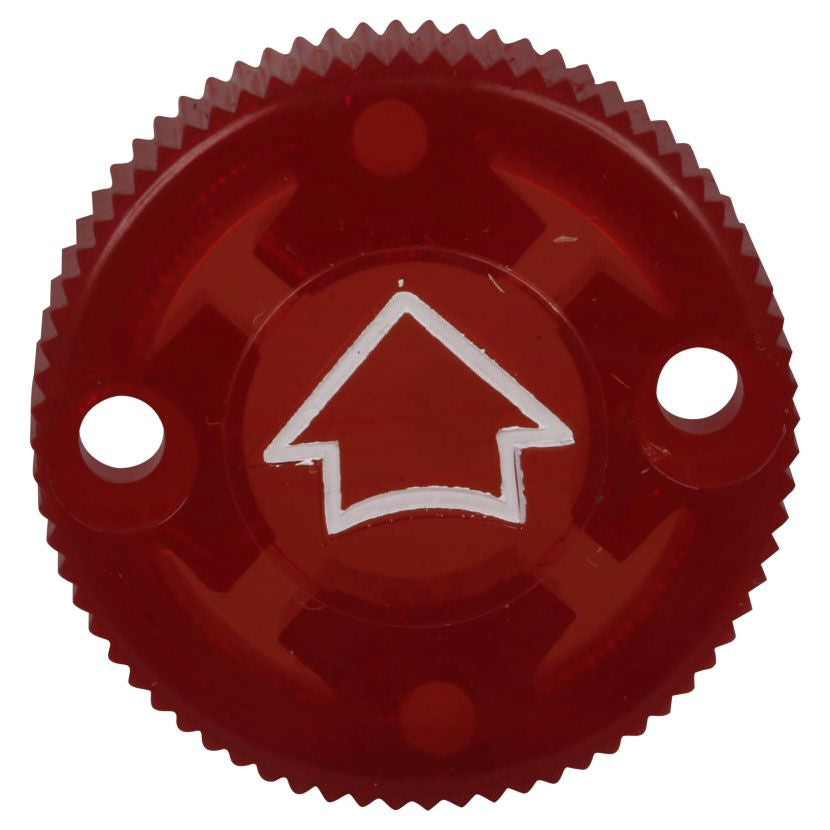

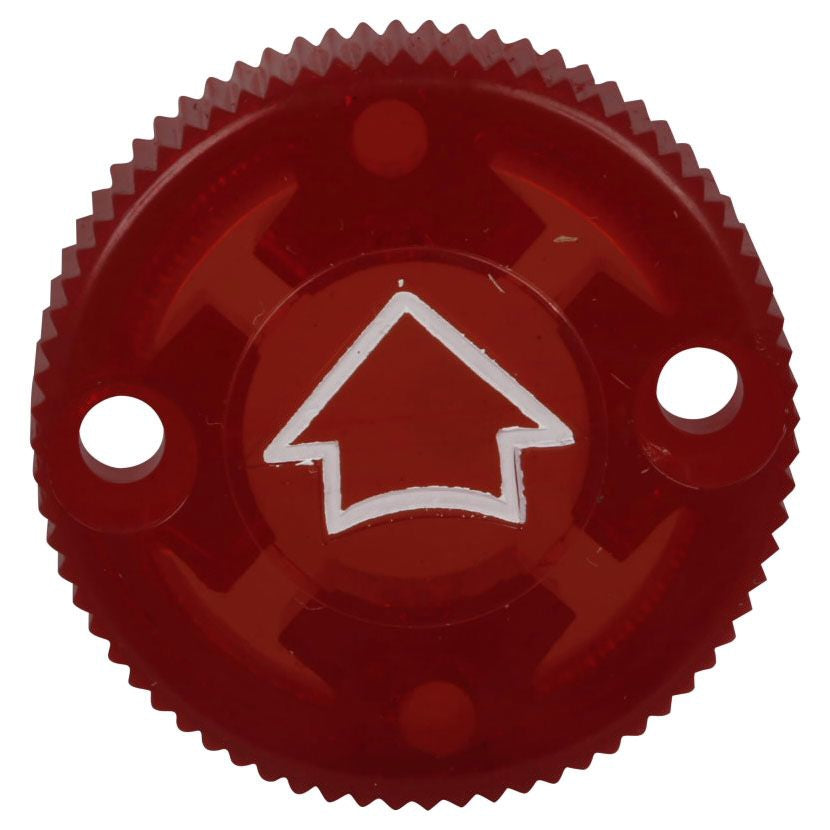

Eaton 10250TER Pilot Light Lens 30.5 Mm Red

Product Description

The EATON 10250TER is a 30.5 mm red replacement lens for pilot lights and indicating lights in the 10250T series operator interface product line. This lens fits into standard 30.5 mm cutout assemblies and provides a durable, color-coded visual indicator for control panel and machine status applications. It is a compact, low-profile component installed by electricians and control panel builders during new construction or service replacement work. The red color coding follows standard industrial convention for fault, stop, or alarm indication.

The 10250TER is suited for use in industrial control panels, operator stations, and machine control enclosures where 30.5 mm pilot light assemblies are specified. It is a direct-fit replacement lens for existing 10250T series pilot light bodies in manufacturing, process control, and utility environments. Both commercial and industrial applications benefit from this standardized 30.5 mm format component.

Key Features

• 30.5 mm standard mounting size for broad panel compatibility
• Red lens color for fault, stop, or alarm indication per common industrial convention
• Compact profile at 1.1 x 1.1 x 0.5 inches overall envelope
• Lightweight construction at 0.01 pounds
• Designed as a replacement or spare lens for 10250T series pilot light assemblies

Compatibility

Designed as an OEM-style replacement lens for 30.5 mm pilot light assemblies in the EATON 10250T series operator interface product line.

Installation Notes

Installation should be performed by a qualified electrician with the control panel de-energized and locked out per NFPA 70E lockout/tagout procedures before servicing any pilot light assembly. The lens typically snaps or threads into the pilot light body — consult the assembly documentation for the specific body style before removal. No special tools are required for lens replacement in most 10250T series configurations.

Technical Specifications

• Lens Color: Red
• Mounting Size: 30.5 mm
• Dimensions (L x W x H): 1.1 x 1.1 x 0.5 inches
• Weight: 0.01 pounds
• UPC: 78211322387

Standard Information

• Brand: EATON
• Manufacturer Part Number: 10250TER
