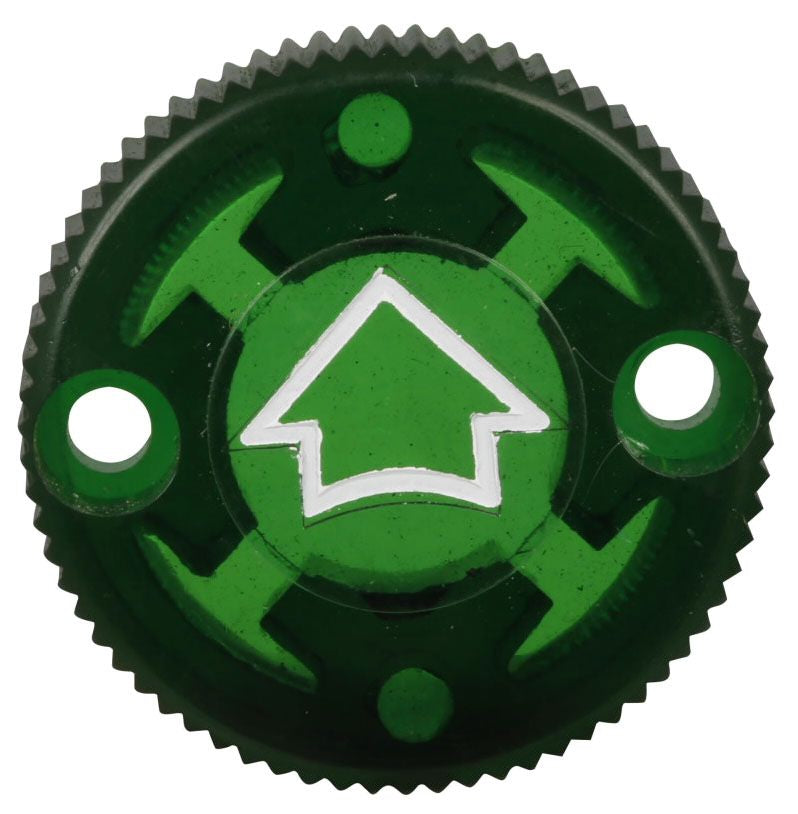

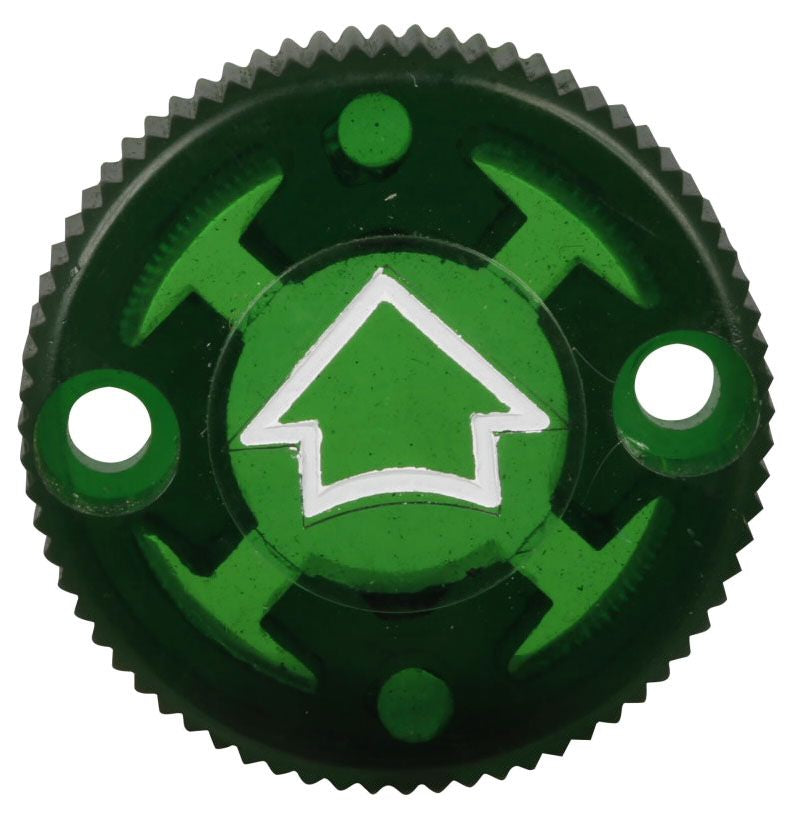

Eaton 10250TEG Pilot Light Lens 30.5mm Green

Product Description

The EATON 10250TEG is a 30.5mm green lens and cap assembly designed for use with 10250T series pilot lights and indicating lights. It provides a color-coded visual status indicator for control panels, motor control centers, and industrial machinery. Electricians and control panel builders install this lens when replacing damaged or discolored indicator light covers or when building new panels that require standardized color coding. The green color conventionally signals a run, on, or normal operating condition in industrial control circuits.

This lens is used in commercial and industrial electrical control panel applications wherever 30.5mm pilot light assemblies are installed. It fits into existing 10250T series operator housings, making it a direct service replacement for field repair or panel renovation work. Typical installations include motor control centers, machine control panels, and operator interface stations requiring reliable visual indication.

Key Features

• Green lens color for standard run or normal-condition indication
• 30.5mm mounting size fits 10250T series pilot light bodies
• Compact profile at approximately 1.1 x 1.1 x 0.4 inches
• Lightweight construction at 0.01 pounds for easy panel integration
• Designed as a direct replacement lens for 10250T series indicating lights

Compatibility

Designed as an OEM-style replacement lens for 30.5mm industrial pilot light and indicating light assemblies in the EATON 10250T series product family.

Installation Notes

Installation is performed by licensed electricians or qualified control panel technicians. Always de-energize and lockout/tagout the control panel before servicing any pilot light or indicating light assembly in accordance with NFPA 70E safe work practices. Snap or thread the lens onto the pilot light body per the existing assembly design, ensuring full seating before restoring power.

Technical Specifications

• Mounting Size: 30.5mm
• Lens Color: Green
• Dimensions (L x W x H): 1.1 x 1.1 x 0.4 inches
• Weight: 0.01 pounds
• UPC: 78211322385

Standard Information

• Brand: EATON
• Manufacturer Part Number: 10250TEG
