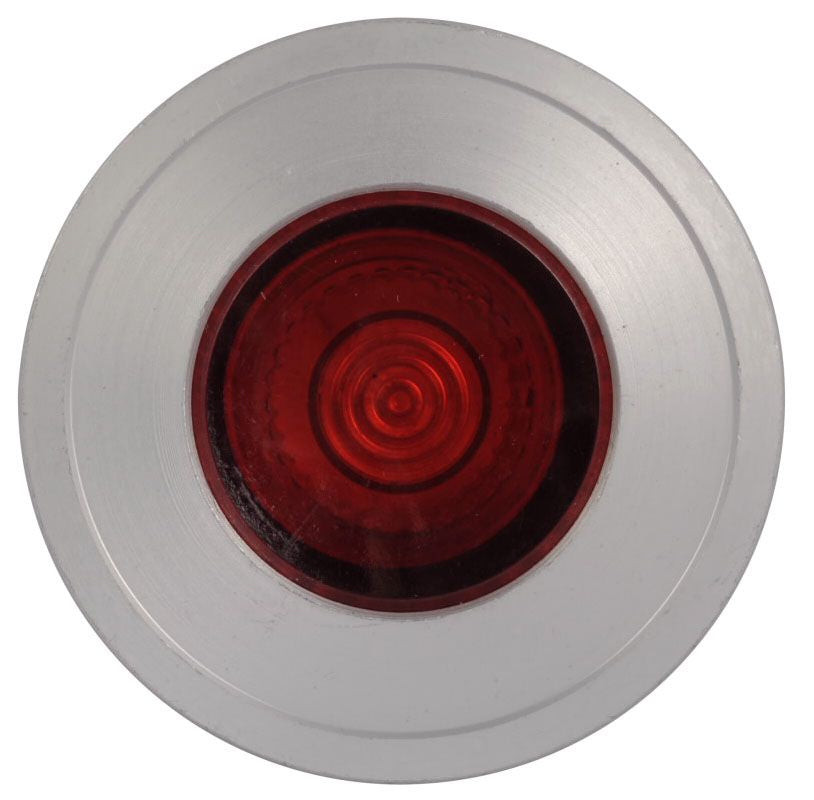

Eaton 10250TC57 Anodized Lens Cap Pushbutton

Product Description

The EATON 10250TC57 is an anodized lens cap designed for use with 10250T series pushbutton operator assemblies found in industrial control panels and machine control stations. The lens cap serves as the transparent or colored cover that protects the operator contact block and provides visual indication of button function. It is installed by electricians and industrial maintenance technicians during panel assembly or field replacement. At 0.030 pounds and a compact footprint of 1.600 x 1.600 x 0.600 inches, it fits neatly into standard 30 mm operator cutouts.

This lens cap is suited for industrial environments where pushbutton stations require durable, anodized components that resist corrosion and wear. Typical applications include motor control centers, machine tool panels, and process control stations in light manufacturing and heavy industrial settings. The anodized finish provides an additional layer of surface protection suited to demanding shop-floor conditions.

Key Features

• Anodized finish for corrosion resistance in industrial environments
• Compact dimensions of 1.600 x 1.600 x 0.600 inches for standard operator cutouts
• Lightweight at 0.030 pounds for easy handling during panel assembly
• Designed as a lens-type cap providing visual identification of pushbutton function
• Part of the EATON 10250T series operator component family

Compatibility

Designed as a replacement or assembly lens cap for EATON 10250T series pushbutton operator stations commonly used in industrial control panel applications.

Installation Notes

Installation of this lens cap should be performed by a qualified electrician following applicable NEC guidelines. De-energize and lock out the control panel before servicing any pushbutton operator assembly. The lens cap is typically pressed or threaded onto the operator body — consult the 10250T series assembly documentation for the correct seating procedure. Do not overtighten or force the cap, as this may crack the lens or damage the operator housing.

Technical Specifications

• Finish: Anodized
• Dimensions (L x W x H): 1.600 x 1.600 x 0.600 inches
• Weight: 0.030 pounds
• UPC: 78211320061

Standard Information

• Brand: EATON
• Manufacturer Part Number: 10250TC57
