Eaton 10250TC49 30.5 Mm Pilot Light Lens

Product Description

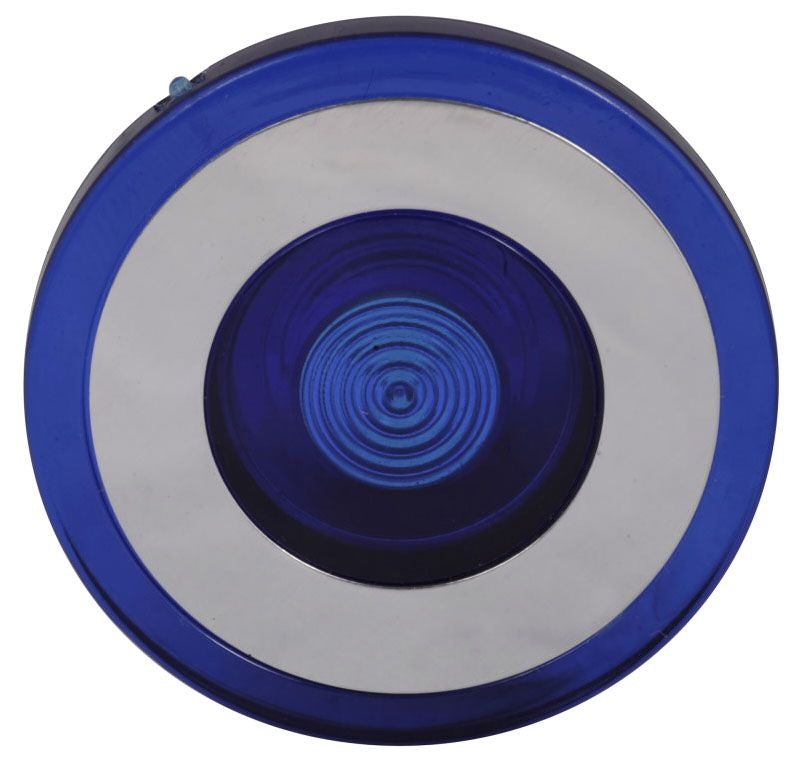

The EATON 10250TC49 is a replacement lens for 30.5 mm pilot light and pushbutton operator assemblies used in industrial control panels and machine control stations. This lens type component fits into the operator housing and provides the colored light-diffusing cover that allows operators to visually confirm system status at a glance. Compact in size at 1.6 inches long by 1.6 inches wide by 0.5 inches tall, it weighs approximately 0.02 pounds. Electricians and industrial control technicians install this lens as part of a complete pilot device assembly on control stations, enclosures, and panel boards.

This lens is designed for use with 30.5 mm pilot light and operator assemblies in industrial and commercial control panel applications. It is a direct-fit replacement component suited for machine control, motor control centers, and similar hardwired control station installations where operator interface devices require servicing or lens replacement.

Key Features

• 30.5 mm mounting diameter for standard industrial operator cutouts
• Lens-type design diffuses indicator light for clear status visibility
• Compact profile at 1.6 x 1.6 x 0.5 inches
• Lightweight construction at 0.02 pounds for easy handling during panel service
• Replacement-ready component for pilot light operator assemblies

Compatibility

Designed as an OEM-style replacement lens for 30.5 mm pilot light and pushbutton operator assemblies in industrial control panel applications.

Installation Notes

Installation of pilot device components should be performed by a qualified electrician in accordance with applicable NEC requirements. De-energize the control panel and verify the circuit is locked out and tagged out before servicing any operator or lens assembly. Lens components typically snap or thread into the operator body without special tooling. Confirm the replacement lens matches the original mounting diameter and operator series before installation.

Technical Specifications

• Mounting Diameter: 30.5 mm
• Dimensions (L x W x H): 1.6 inches x 1.6 inches x 0.5 inches
• Weight: 0.02 pounds
• UPC: 78211331013

Standard Information

• Brand: EATON
• Manufacturer Part Number: 10250TC49
