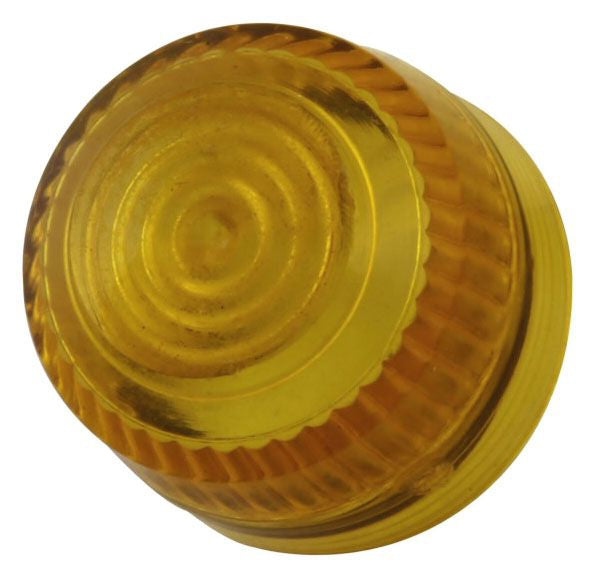

Eaton 10250TC3N Plastic Lens Pilot Light

Product Description

The EATON 10250TC3N is a plastic lens pilot light indicator designed for use in industrial control panel applications. This lens-type indicator mounts into standard 30mm operator cutouts and provides a visible signal for equipment status, fault conditions, or process states. The plastic lens construction keeps weight low while offering adequate durability for indoor control environments. Electricians and control panel builders install this unit during panel assembly or as a direct replacement for a worn or broken lens assembly.

The 10250TC3N fits into the EATON 10250T series operator interface product family, which is commonly found in industrial and commercial control panels. Typical applications include machine control stations, motor control centers, and operator interface panels in manufacturing, processing, and building automation environments. This lens-type indicator is installed wherever a clear or colored visual status signal is required at a control panel or push-button station.

Key Features

• Plastic lens construction for lightweight, cost-effective status indication
• Lens-type design compatible with 10250T series pilot light assemblies
• Suitable for use in industrial and commercial control panel enclosures
• Compact form factor designed for standard 30mm operator cutouts

Compatibility

Designed as an OEM-style replacement lens for EATON 10250T series pilot light and indicator assemblies used in industrial control panel applications.

Installation Notes

Installation is typically performed by a licensed electrician or qualified control panel technician. De-energize the control panel and follow lockout/tagout procedures before servicing any indicator or lens component. Ensure the replacement lens is fully seated and secured before restoring power to the panel.

Technical Specifications

• Lens Material: Plastic
• Lens Type: Indicator lens
• Weight: 0.45 pounds
• UPC: 78211314804

Standard Information

• Brand: EATON
• Manufacturer Part Number: 10250TC3N
