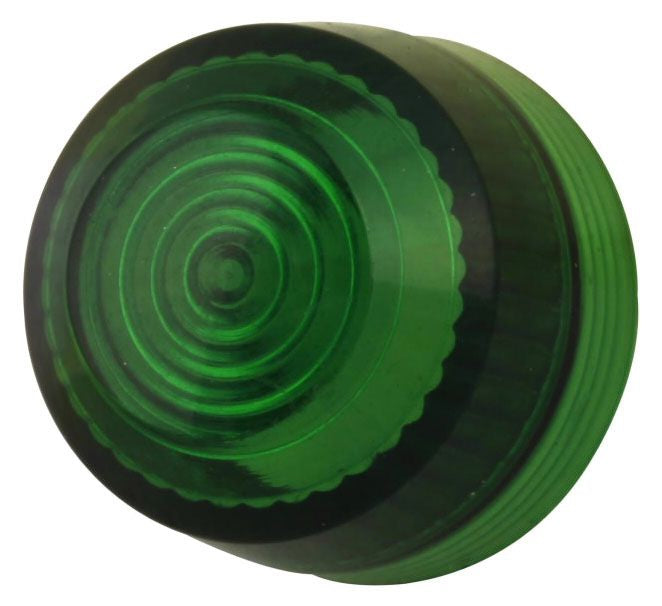

Eaton 10250TC2N Plastic Lens Cap

Product Description

The EATON 10250TC2N is a plastic lens cap designed for use with 10250T-series pilot light and pushbutton operator assemblies. This lens type component provides a clear or colored transparent cover over the lamp element, protecting the light source while allowing visual indication of circuit status. It is a direct-replacement accessory commonly installed by licensed electricians and control panel technicians during new builds or field repairs on industrial control stations.

The 10250TC2N is suited for industrial and commercial control panel applications where 10250T-series operator hardware is in use. Typical install scenarios include machine control stations, motor control centers, and panel-mounted operator interfaces where a replacement or spare lens cap is needed to restore a pilot light assembly to service. Its lightweight plastic construction keeps overall operator weight low and simplifies field swapping without specialized tooling.

Key Features

• Plastic lens construction for lightweight, low-profile pilot light coverage
• Designed for 10250T-series pilot light and pushbutton operator assemblies
• Direct-replacement lens cap for field repair or spare-parts stocking
• Allows clear visual indication of lamp or indicator status

Compatibility

Designed as an OEM-style replacement lens cap for EATON 10250T-series pilot light and pushbutton operator assemblies used in industrial control station applications.

Installation Notes

Installation should be performed by a qualified electrician. De-energize the control circuit and verify zero voltage at the operator station before disassembling any pilot light components. The lens cap is typically hand-pressed or threaded onto the operator body and requires no special tools. Follow applicable NEC guidelines for control panel maintenance and reassembly.

Technical Specifications

• Lens Material: Plastic
• Weight: 0.01 pounds
• UPC: 78211314809

Standard Information

• Brand: EATON
• Manufacturer Part Number: 10250TC2N
