Eaton 10250TC26 Plastic Lens Push Button Indicator

Product Description

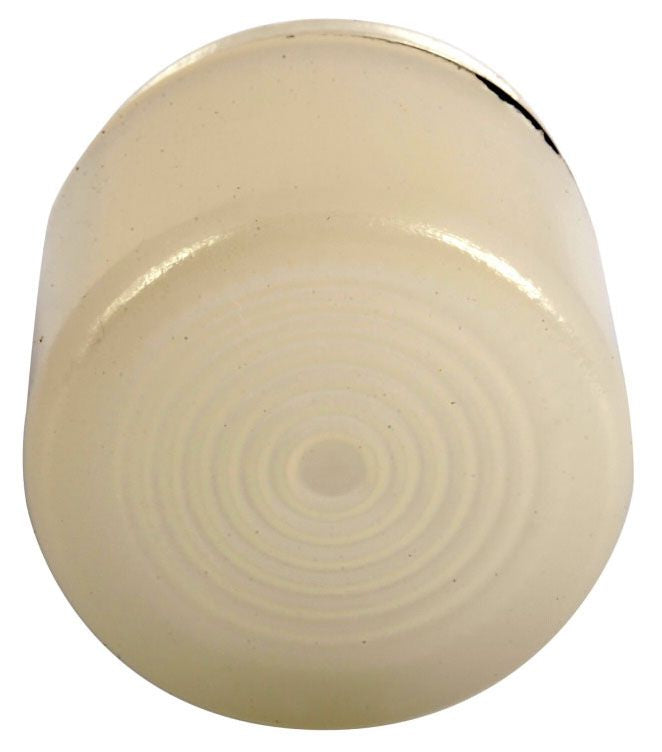

The EATON 10250TC26 is a plastic replacement lens designed for use with 10250T series push button operators and pilot light assemblies. This lens fits directly into compatible operator heads, providing a clear or colored light-transmitting cover for indicator and pilot light applications. The part is compact, measuring 0.9 inches by 0.9 inches by 0.8 inches, and weighs 0.01 pounds. Electricians and industrial maintenance technicians install this lens as part of routine control station servicing or when replacing a cracked or damaged lens on an existing operator assembly.

The 10250TC26 lens is suited for industrial control panels, machine tool operator stations, and heavy-duty push button enclosures that use the 10250T series hardware. It is appropriate for both light-duty maintenance replacement and original equipment assembly applications. Facilities with existing 10250T series push button stations will find this a direct-fit service part requiring no modification to the operator head or mounting hardware.

Key Features

• Plastic construction for durability and light transmission in indicator applications
• Compact form factor: 0.9 inches x 0.9 inches x 0.8 inches
• Lightweight at 0.01 pounds for easy handling during servicing
• Designed for direct replacement in 10250T series operator heads
• UPC: 78211320378

Compatibility

Designed as a replacement lens for EATON 10250T series push button operators and pilot light assemblies. Verify the specific operator head model before installation to confirm lens fitment.

Installation Notes

Installation is typically performed by a licensed electrician or qualified industrial maintenance technician. De-energize the control panel and follow lockout/tagout procedures per NFPA 70E before servicing any operator station. The lens typically snaps or threads into the operator head without special tools. Inspect the lens retainer and operator housing for damage before installing the new lens.

Technical Specifications

• Material: Plastic
• Dimensions (L x W x H): 0.9 inches x 0.9 inches x 0.8 inches
• Weight: 0.01 pounds
• UPC: 78211320378

Standard Information

• Brand: EATON
• Manufacturer Part Number: 10250TC26
