Eaton 10250TC22 Plastic Pilot Light Lens

Product Description

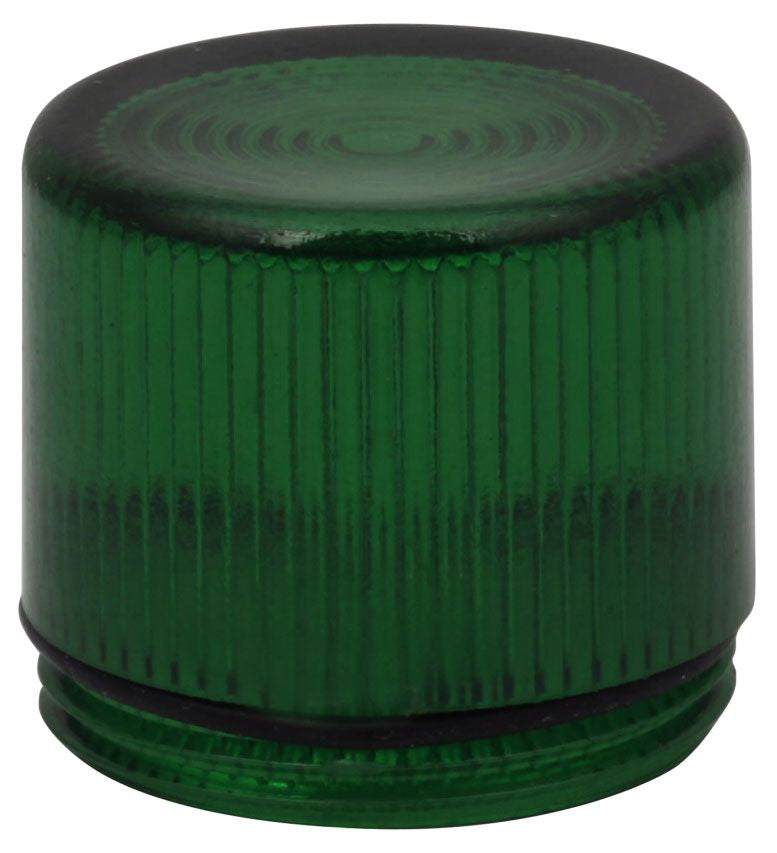

The EATON 10250TC22 is a plastic lens designed for use with 10250T series pilot lights and indicating devices. The lens serves as the light-transmitting cover on a pilot light assembly, allowing operators to visually confirm machine or panel status. It is a replacement or spare component suited for industrial control panels, motor control centers, and operator interface stations. Installation is handled by electricians and panel technicians working on control station assemblies. The compact form factor fits within the 10250T series mounting footprint.

This lens component is used in industrial and commercial electrical control applications where 10250T series pilot light assemblies are installed. Common environments include manufacturing equipment panels, conveyor systems, pump control stations, and HVAC unit control panels. It is a direct-fit component within the 10250T series product family and is typically replaced during routine maintenance or when a lens becomes cracked, discolored, or damaged.

Key Features

• Plastic construction for lightweight, durable lens performance
• Designed for 10250T series pilot light and indicating light assemblies
• Compact dimensions suitable for standard control panel cutouts
• Direct replacement component for field service and maintenance

Compatibility

Designed as an OEM-style replacement lens for EATON 10250T series pilot light and indicating device assemblies used in industrial control panel applications.

Installation Notes

Installation is performed by a licensed electrician or qualified panel technician. De-energize the control panel and verify the circuit is locked out and tagged out before servicing any pilot light assembly per NFPA 70E arc flash and lockout/tagout requirements. The lens typically snaps or threads into the pilot light body — consult the 10250T series assembly documentation for the specific attachment method. Inspect the lamp and socket for damage while the assembly is accessible.

Technical Specifications

• Material: Plastic
• Length: 0.9 inches
• Width: 0.9 inches
• Height: 0.8 inches
• Weight: 0.01 pounds
• UPC: 78211320375

Standard Information

• Brand: EATON
• Manufacturer Part Number: 10250TC22
