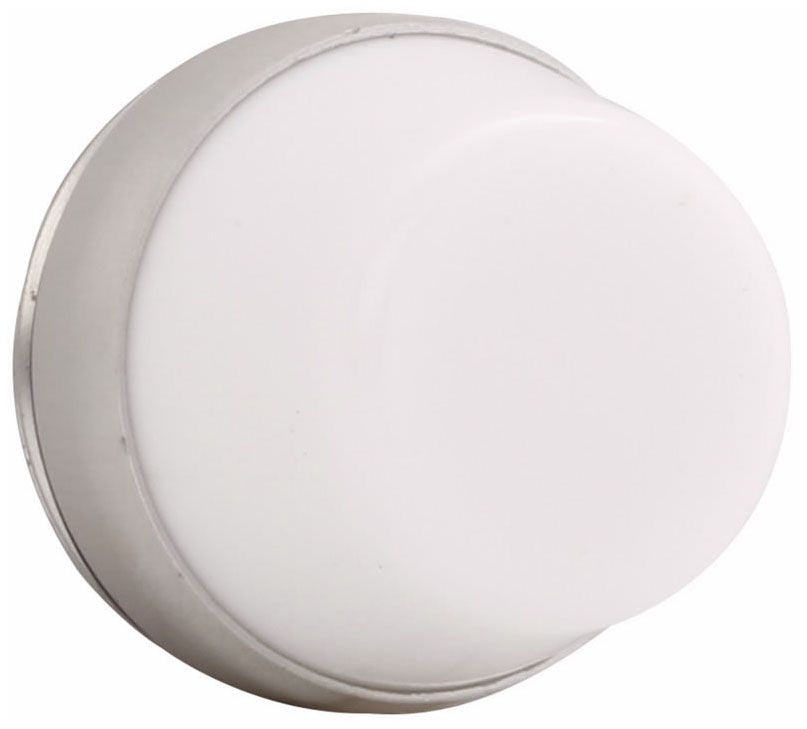

Eaton 10250TC18N Glass Pilot Light Lens

Product Description

The EATON 10250TC18N is a glass lens designed for use with 10250T series pilot light assemblies. This replacement lens fits into the lens cap or operator body of a pilot device, providing a clear or colored viewing window for indicator light status. The glass construction offers durability and resistance to heat and solvents compared to standard plastic lenses. Electricians and panel builders install this lens during initial assembly or when replacing a damaged or discolored lens on an existing pilot device. It is a small but essential component in maintaining clear visual indication on control panels and operator interfaces.

This lens is applicable to industrial and commercial control panel applications where 10250T series pushbuttons and pilot lights are installed. Typical use cases include machine tool control panels, motor control centers, and operator workstations that require reliable visual status indication. The glass material suits environments where exposure to oils, cutting fluids, or elevated temperatures would degrade a plastic lens over time.

Key Features

• Glass construction for improved heat and chemical resistance over plastic lenses
• Designed for use with 10250T series pilot light assemblies and operator devices
• Replacement lens for restoring clear visual indication on control panel pilot devices
• Compact and lightweight at 0.02 pounds for easy handling during panel assembly

Compatibility

Designed as an OEM-style replacement lens for EATON 10250T series pilot light and pushbutton operator assemblies used in industrial control panel applications.

Installation Notes

Installation is performed by qualified electricians during panel assembly or service. De-energize the control panel and follow applicable NFPA 70E lockout and tagout procedures before accessing any pilot device or operator assembly. The lens typically snaps or threads into the operator cap body without special tools. Inspect the lens cap and operator body for damage before reinstalling to ensure a proper fit and seal.

Technical Specifications

• Lens Material: Glass
• Weight: 0.02 pounds
• UPC: 78211377251

Standard Information

• Brand: EATON
• Manufacturer Part Number: 10250TC18N
