Eaton 10250TC11N indicating light & pushbutton lens

Product Description

The Eaton 10250TC11N is an indicating light lens suitable for use with indicating lights or master test push buttons. Eaton's 10250T line of 30.5 mm pushbuttons features a heavy-duty zinc die cast construction. Reliability nibs improve contact reliability even under dry circuit and fine dust conditions.

• Heavy-duty zinc die cast construction
• Improves contact reliability
• Prevents buildup of liquid inside the operator

Product Highlights

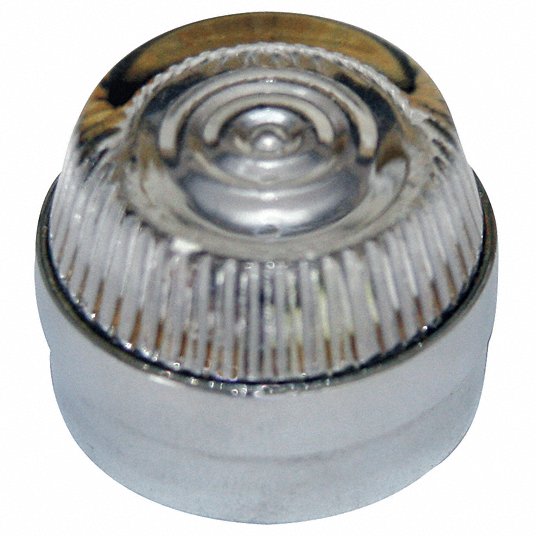

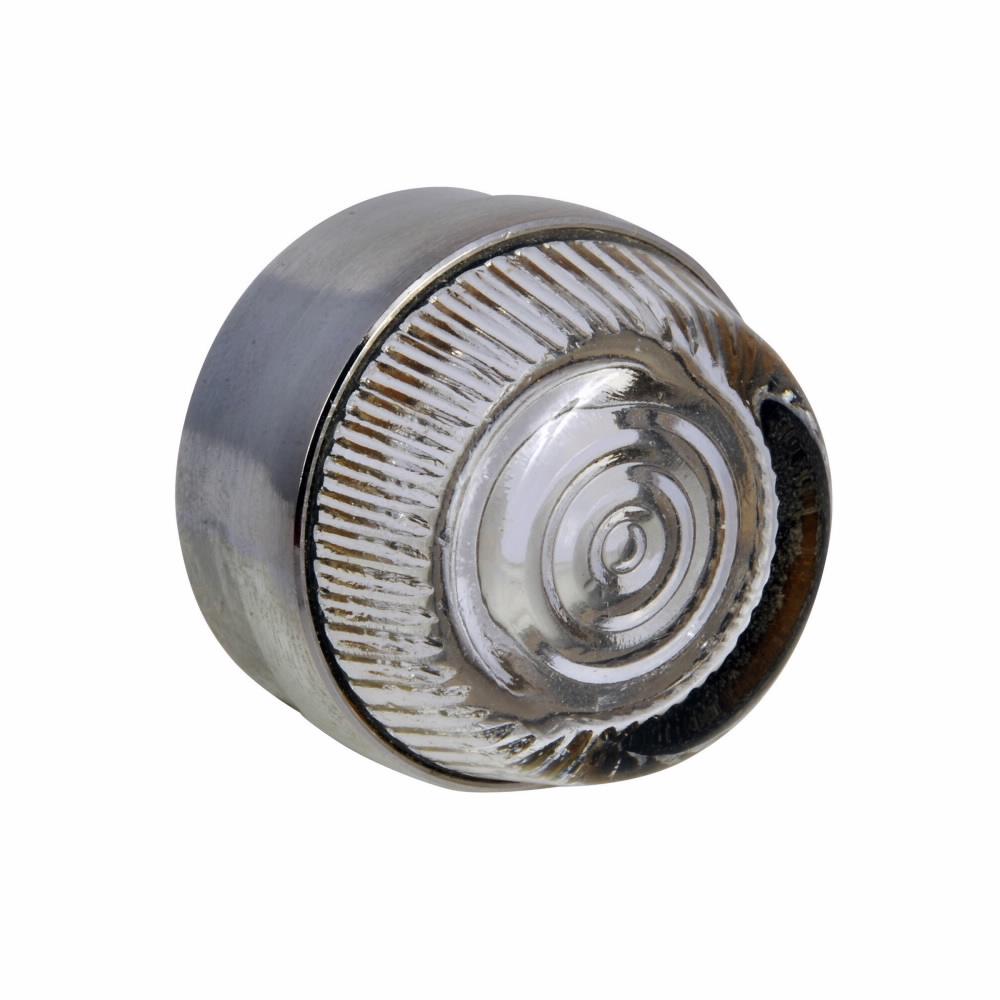

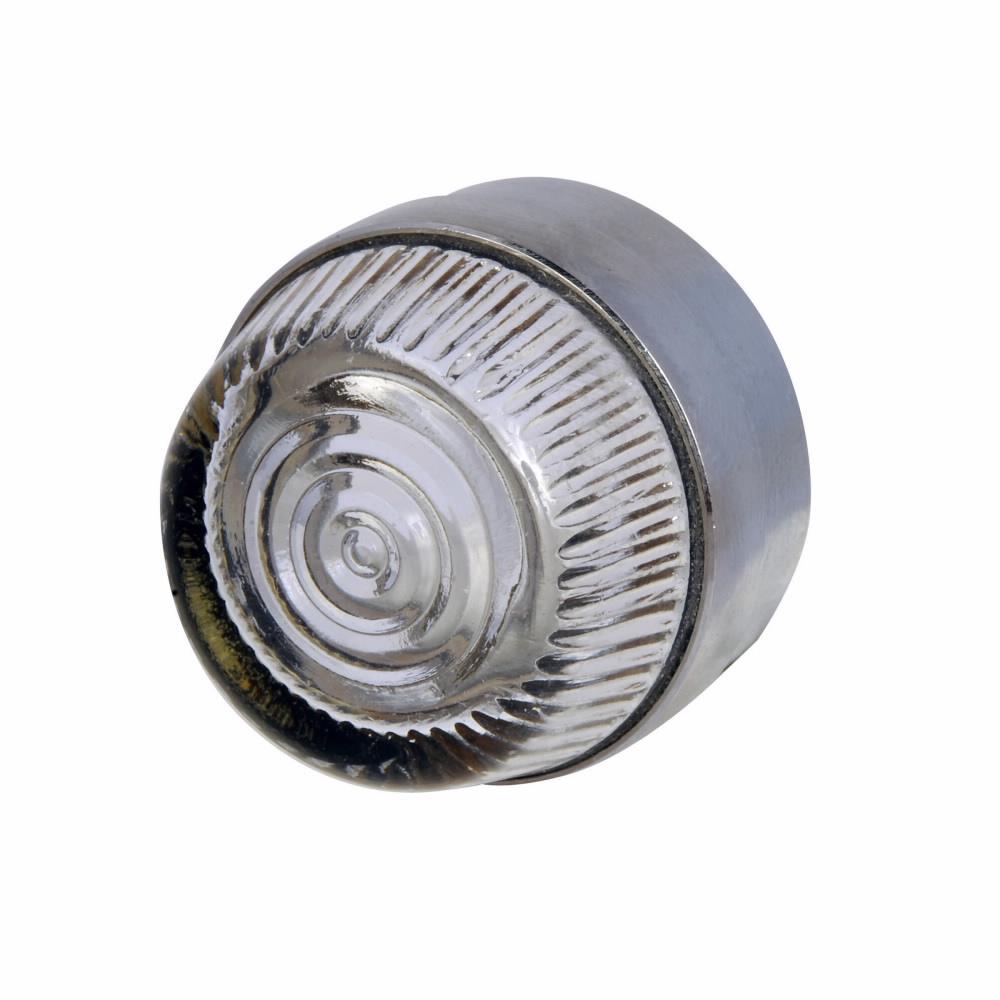

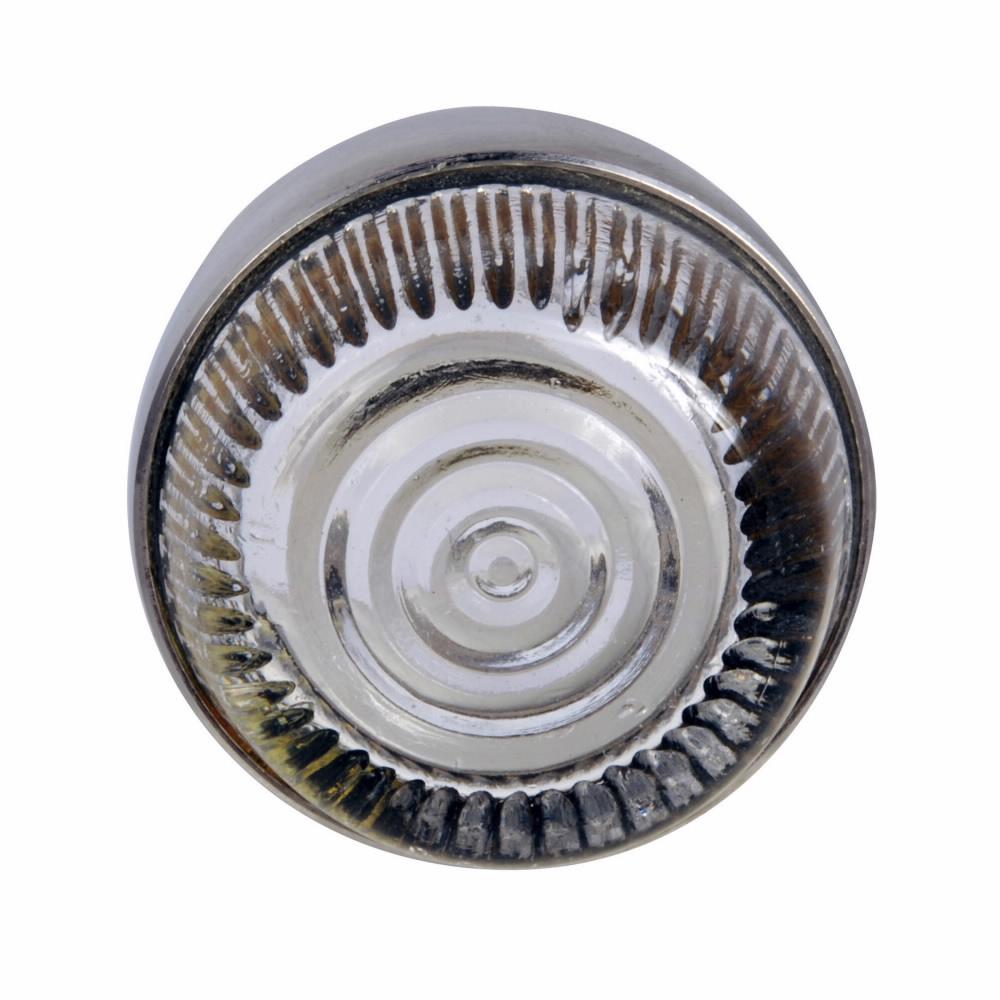

The Eaton 10250TC11N lens enhances visibility and helps protect the light. It is a clear, glass lens compatible with the 10250T series.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: 10250TC11N
• Country of Origin: Dominican Republic

Technical Specifications

• Series: 10250T
• Type: 30.5 mm, Heavy-Duty Watertight/Oiltight
• NEMA Rating: NEMA 1/2/3/3R/4/4X/12/13/IP65
• Shape: Round
• Material: Glass
• SKU: 10250TC11N
• Product Name: Eaton 10250T pushbutton lens
• Catalog Number: 10250TC11N
• UPC: 782113148007
• Product Length/Depth: 1.2 in
• Product Height: 0.8 in
• Product Width: 1.2 in
• Compliances: CE Marked
• Certifications: UL Listed CSA Certified
• Product Type: Pushbutton accessory
• Used with: Indicating light or master test pushbutton
• Actuator color: Clear
• Legend: Blank
• Product category: Lens
• Brand: Eaton
• Light Source Type: Incandescent
• Mounting Type: Panel
• Approval: CE, UL, CSA
• Nema Rating: 1, 2, 3, 3S, 3R, 4, 4X, 12, 13
• Length (in): 1.2
• Width (in): 1.2
• Height (in): 0.8
• For Use With: Indicating Light or Master Test Push Button
• Duty Rating: Heavy Duty
• Body Material: Glass
• Mpn: 10250TC11N
• Upc: 782113148007
• Gtin: 782113148007
• Compatible with Series: 10250T
• Compatible Lamp Bulb Type: Incandescent; LED
• IP Rating: IP65
• Lens Color: Clear
• Lens Material: Glass
• Lens Type: Fresnel
• NEMA Enclosure Rating: 1; 2; 3; 3S; 3R; 4; 4X; 12; 13
• Overall Depth: 1.2 in
• Overall Height: 0.8 in
• Overall Width: 1.2 in
• Panel Mounting Hole Diameter: 30 mm
• Standards: CE; CSA; UL Listed
• UNSPSC: 39121534
• Size: 30.5 mm
