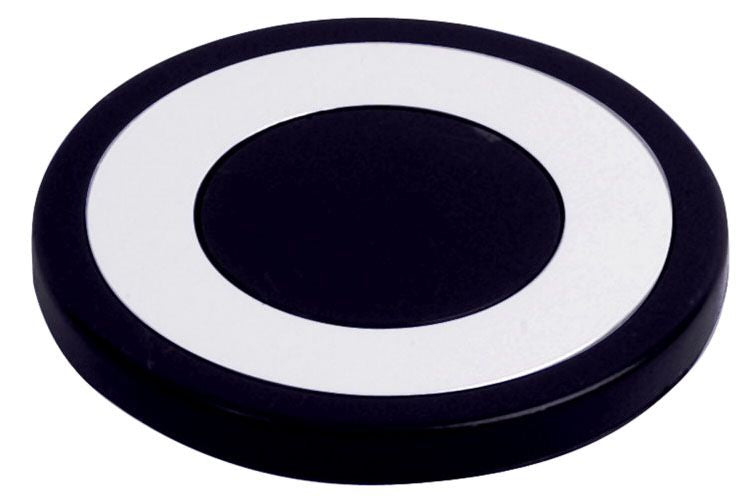

Eaton 10250TB60 Button Type Pushbutton Operator 30.5mm

Product Description

The EATON 10250TB60 is a button type pushbutton operator in the 30.5mm mounting diameter class, designed for use in industrial control panels and operator interface stations. This operator serves as the actuator component that, when paired with a contact block, completes or interrupts a control circuit. It is typically installed in control enclosures, machine panels, and motor control stations where reliable manual switching is required. Electricians and industrial maintenance technicians working under NEC guidelines are the primary installers of this type of operator.

The 10250TB60 fits within the EATON 10250T series of 30.5mm control devices, a platform commonly found in heavy industrial environments including manufacturing, process control, and utility applications. This operator is suited for new panel builds as well as replacement of worn or damaged actuators in existing operator interface assemblies. Its compact footprint allows installation in standard 30.5mm panel cutouts.

Key Features

• Button type actuator design for direct manual operation of control circuits
• 30.5mm mounting diameter fits standard industrial panel cutouts
• Compact dimensions of 1.5 inches x 1.5 inches x 0.3 inches for space-efficient panel layouts
• Lightweight construction at 0.02 pounds
• Part of the EATON 10250T series for broad accessory and contact block compatibility within the same product family

Compatibility

Designed as an OEM-style operator for use with 30.5mm control station assemblies within the EATON 10250T series platform.

Installation Notes

Installation should be performed by a qualified electrician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize the control panel and verify absence of voltage before removing an existing operator or installing this unit. Ensure the panel cutout matches the 30.5mm mounting diameter before mounting. Torque hardware per the enclosure and contact block manufacturer guidelines and verify secure mechanical engagement with the contact block before restoring power.

Technical Specifications

• Mounting Diameter: 30.5mm
• Operator Type: Button Type
• Dimensions (L x W x H): 1.5 inches x 1.5 inches x 0.3 inches
• Weight: 0.02 pounds
• UPC: 78211330761

Standard Information

• Brand: EATON
• Manufacturer Part Number: 10250TB60
