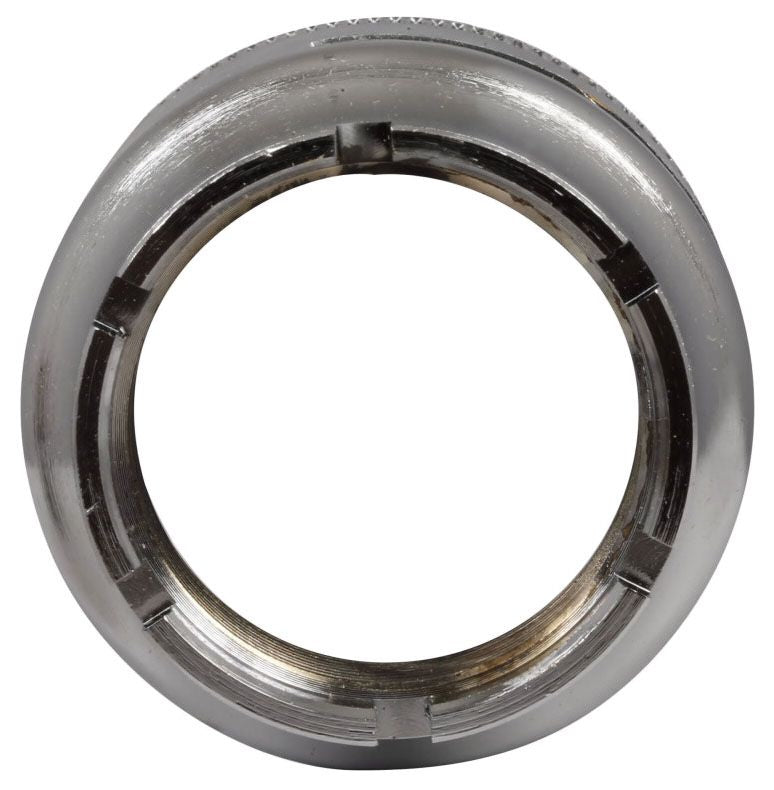

Eaton 10250TA6 30.5mm Pilot Light Operator

Product Description

The EATON 10250TA6 is a 30.5 mm pilot light operator designed for use in industrial control panels and operator interface assemblies. This compact indicating light unit mounts into a standard 30.5 mm panel cutout and provides a clear visual status indication for machine or process control circuits. It is intended for installation by licensed electricians or qualified industrial control technicians working on panel fabrication, machine tool wiring, or control system retrofits. The unit ships at approximately 0.2 pounds and fits within a footprint of 2.1 inches by 2.0 inches by 1.8 inches.

The 10250TA6 is suited for use in manufacturing environments, motor control centers, and industrial enclosures where standardized 30.5 mm operator devices are specified. It is compatible with the 10250T series mounting hardware and operator assemblies commonly found in industrial panel builds. Electricians and panel builders working with NEMA-rated enclosures will find this device fits standard knockouts and cutouts dimensioned for 30.5 mm operators.

Key Features

• 30.5 mm mounting diameter fits standard industrial panel cutouts
• Compact form factor: 2.1 inches long by 2.0 inches wide by 1.8 inches deep
• Lightweight construction at 0.2 pounds for easy panel integration
• Part of the EATON 10250T series operator device family
• Designed for use as a pilot light or indicating light operator in control panels

Compatibility

Designed as an OEM-style replacement or direct-fit operator for industrial control panels requiring 30.5 mm pilot light operators in the EATON 10250T series form factor.

Installation Notes

Installation should be performed by a qualified electrician in accordance with applicable NEC requirements and local codes. De-energize and lockout/tagout the panel or enclosure before installing or servicing any operator device. Ensure the panel cutout is sized correctly for the 30.5 mm mounting diameter before inserting the operator. Do not overtighten the mounting hardware, as this may crack the operator body or distort the panel surface.

Technical Specifications

• Mounting Diameter: 30.5 mm
• Length: 2.1 inches
• Width: 2.0 inches
• Height: 1.8 inches
• Weight: 0.2 pounds
• UPC: 78211322343

Standard Information

• Brand: EATON
• Manufacturer Part Number: 10250TA6
