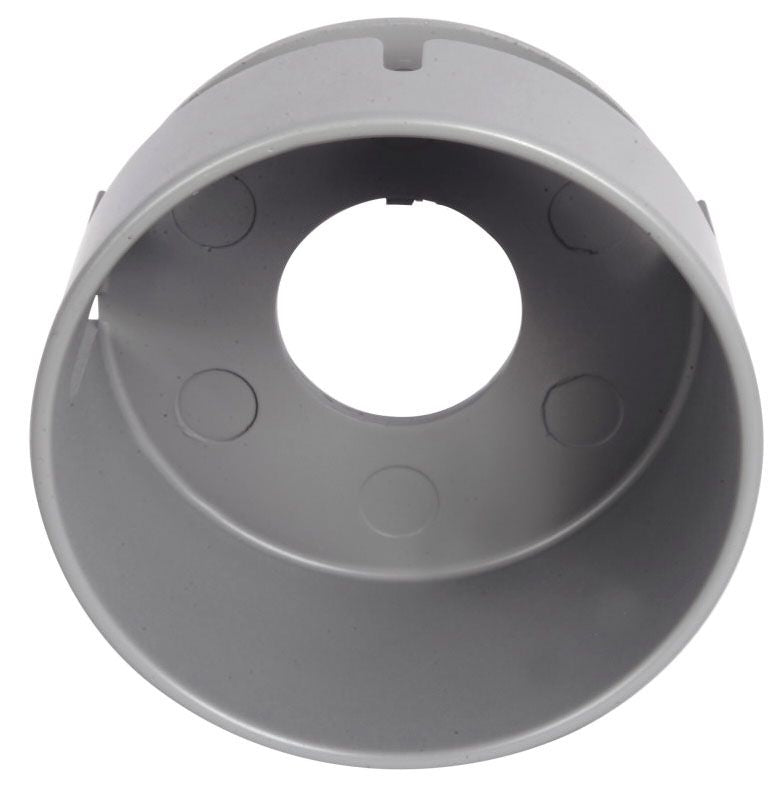

Eaton 10250TA56 30.5mm Pilot Light Operator

Product Description

The EATON 10250TA56 is a 30.5mm pilot light operator designed for use with push button and selector switch assemblies in industrial control panel applications. This operator serves as the illuminated actuator component, providing both a tactile control interface and a visual status indicator in a single unit. Electricians and panel builders use it when assembling or servicing operator interface devices on machine control enclosures, motor starters, and other industrial electrical equipment. Its 30.5mm mounting footprint fits standard 30.5mm cutouts, making it a direct-fit option for compatible Eaton 10250T series assemblies.

This operator is suited for industrial and commercial electrical panel installations where operator interface components require replacement or new assembly. Typical applications include machine control stations, control panels on manufacturing equipment, and motor control centers. It is installed by licensed electricians or qualified industrial maintenance technicians during new panel builds or field service of existing control enclosures.

Key Features

• 30.5mm mounting diameter fits standard industrial cutout dimensions
• Pilot light operator combines actuation and illumination in one assembly
• Part of the Eaton 10250T series operator interface platform
• Compact package dimensions support use in space-constrained enclosures
• Lightweight construction at 0.65 pounds for easy panel integration

Compatibility

Designed as an OEM-style replacement or assembly component for 30.5mm Eaton 10250T series push button and pilot light assemblies used in industrial control panel applications.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and all applicable local codes. De-energize and lock out the control panel before removing or installing any operator interface component. Verify that the operator is fully seated and secured in the panel cutout before restoring power. Do not exceed the rated electrical parameters of the assembly.

Technical Specifications

• Mounting Diameter: 30.5mm
• Package Dimensions (L x W x H): 5.9 inches x 4.0 inches x 3.8 inches
• Weight: 0.65 pounds
• UPC: 78211328404

Standard Information

• Brand: EATON
• Manufacturer Part Number: 10250TA56
