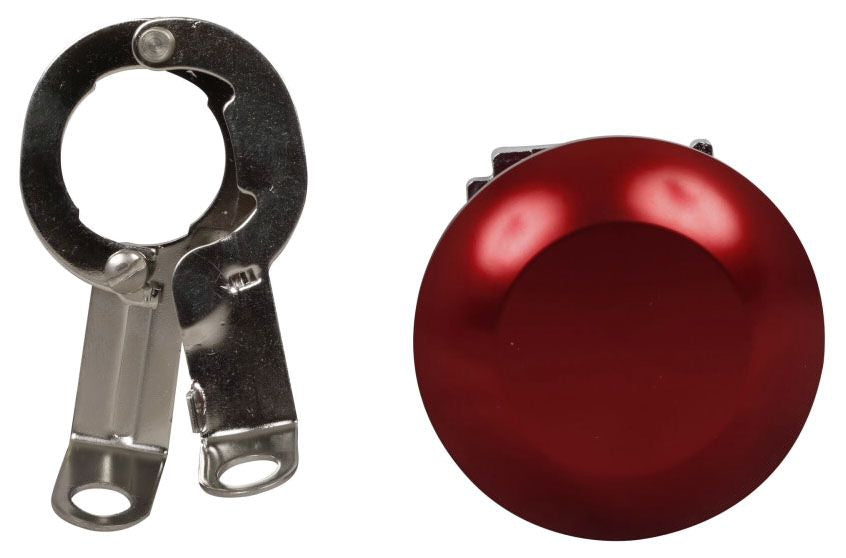

Eaton 10250TA52 Jumbo Hand Latch Operator

Product Description

The EATON 10250TA52 is a jumbo hand latch designed for use with 10250T series operator control stations. This mechanical latch mechanism secures the operator handle in position, providing positive locking action during industrial control applications. It is a direct-fit replacement or supplemental component for compatible push-pull and selector-type operator assemblies. Licensed electricians and industrial maintenance technicians typically install and service this type of component on machine control panels, motor control centers, and plant-floor enclosures. The 10250TA52 ships at 0.5 pounds and fits within a compact footprint, making it straightforward to stock and field-install.

The 10250TA52 is suited for industrial and commercial electrical control applications where the 10250T series operator platform is already in use. Typical scenarios include retrofitting or replacing latching hardware on existing control stations mounted in NEMA-rated enclosures on production equipment, conveyor systems, and machine tool panels. Maintenance electricians servicing aging operator assemblies will find this a direct accessory match for the 10250T product family. It is not intended for residential wiring applications.

Key Features

• Jumbo-format hand latch sized for the 10250T operator series
• Positive mechanical locking action secures operator handle position
• Compact package dimensions: 4.2 inches x 3.2 inches x 3.3 inches
• Lightweight at 0.5 pounds for easy field handling and stocking
• OEM EATON component ensures proper fit within the 10250T platform

Compatibility

Designed as an OEM-style accessory for EATON 10250T series operator control stations. Consult EATON product documentation to confirm fitment with specific operator handle configurations before installation.

Installation Notes

Installation should be performed by a qualified electrician in accordance with NFPA 70 (NEC) requirements. De-energize and lock out the control circuit before servicing any operator station component. Verify that the latch orientation and handle travel are correct before restoring power. Do not force the latch mechanism into position, as improper seating can prevent reliable operator action.

Technical Specifications

• Package Weight: 0.5 pounds
• Package Dimensions (L x W x H): 4.2 inches x 3.2 inches x 3.3 inches
• UPC: 78211322361

Standard Information

• Brand: EATON
• Manufacturer Part Number: 10250TA52
