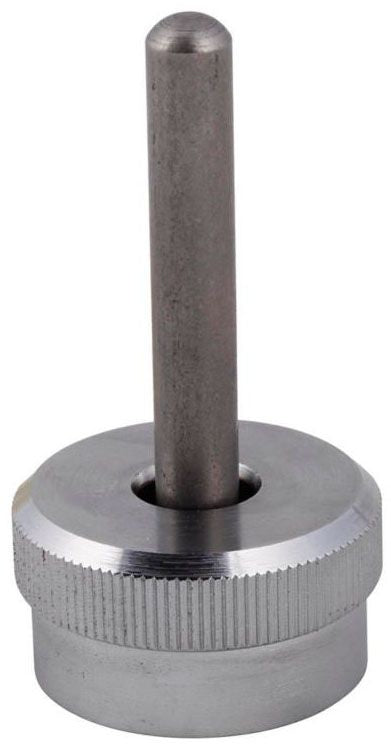

Eaton 10250TA5 Wobble Stick Operator Actuator

Product Description

The EATON 10250TA5 is a wobble stick operator actuator designed for use with industrial control stations and pendant stations. A wobble stick actuator responds to contact from any direction, making it well suited for applications where an operator needs to trigger a control signal through incidental or intentional contact rather than a direct push or pull action. Licensed electricians and industrial controls technicians are the primary installers of this type of actuator in panel or pendant assemblies.

The 10250TA5 is intended for use in industrial environments where a multi-directional actuator improves operator safety and process control. Typical applications include machine tool controls, conveyor systems, and other automated equipment where a wobble or trip-wire style input is required. This actuator fits into the 10250T series control station family and is used where flexible actuator geometry is an advantage over standard pushbutton or selector switch operators.

Key Features

• Multi-directional wobble stick design allows contact from any angle to trigger the control circuit
• Compatible with 10250T series industrial control station bodies
• Lightweight construction at 0.25 pounds, suited for panel and pendant mounting
• Designed for industrial control and machine safety applications

Compatibility

Designed as an OEM-style actuator operator for use with EATON 10250T series industrial control stations. No additional specific model compatibility data was provided in the source data.

Installation Notes

Installation should be performed by a qualified electrician or industrial controls technician in accordance with applicable NEC requirements. De-energize and lock out the control circuit before removing or installing any actuator operator. Verify the actuator is fully seated and secured in the control station body before restoring power. Do not exceed the mechanical or electrical ratings of the associated contact block assembly.

Technical Specifications

• Weight: 0.25 pounds
• UPC: 78211322342

Standard Information

• Brand: EATON
• Manufacturer Part Number: 10250TA5
