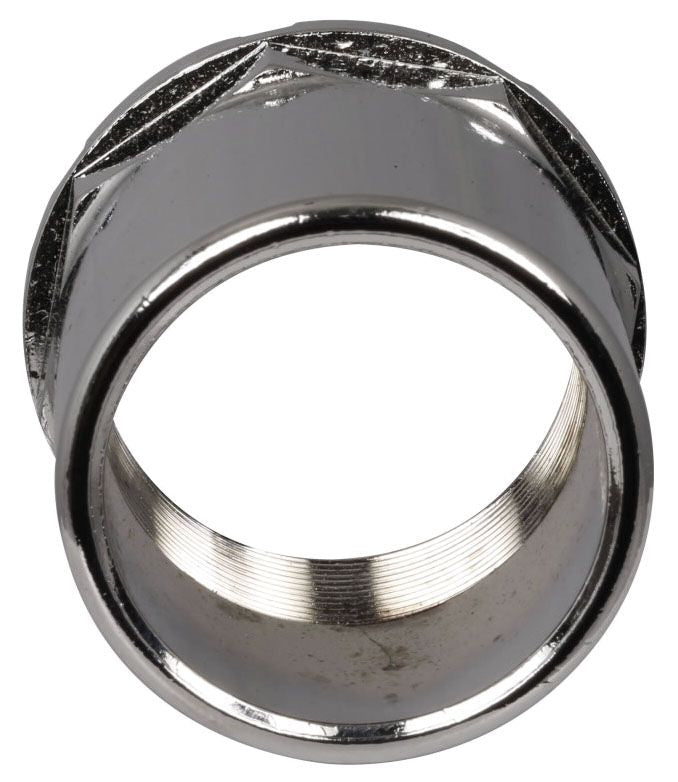

Eaton 10250TA12 Extended Retaining Ring

Product Description

The EATON 10250TA12 is an extended retaining ring designed for use with industrial control devices and operator interface components. Retaining rings of this type secure push buttons, selector switches, and similar panel-mount components in place within an enclosure cutout. The 10250TA12 provides the extended-style profile, which gives a deeper grip on the mounting surface compared to standard retaining hardware. Electricians and panel builders working on industrial control panels and operator stations are the primary installers of this component.

The 10250TA12 is suited for industrial and commercial control panel applications where 10250T-series operator devices are installed. It is typically used in manufacturing, process control, and machine tool environments where reliable panel hardware retention is required. The extended design accommodates panel thicknesses that standard retaining hardware may not adequately secure.

Key Features

• Extended retaining profile for a more secure grip on panel cutouts
• Compatible with 10250T-series operator devices
• Compact form factor fits standard industrial panel layouts
• Lightweight construction at 0.15 pounds

Compatibility

Designed as an OEM-style retaining ring for use with EATON 10250T-series push button and operator interface devices in industrial control panel applications.

Installation Notes

Installation is performed by qualified electricians or panel builders. De-energize and lock out the control panel before servicing any operator devices or hardware. Use appropriate hand tools to thread or seat the retaining ring without overtightening, which can crack the ring or damage the panel cutout. Follow applicable NEC guidelines for industrial control panel construction.

Technical Specifications

• Weight: 0.15 pounds
• Length: 2 inches
• Width: 2 inches
• Height: 2.2 inches
• UPC: 78211320453

Standard Information

• Brand: EATON
• Manufacturer Part Number: 10250TA12
