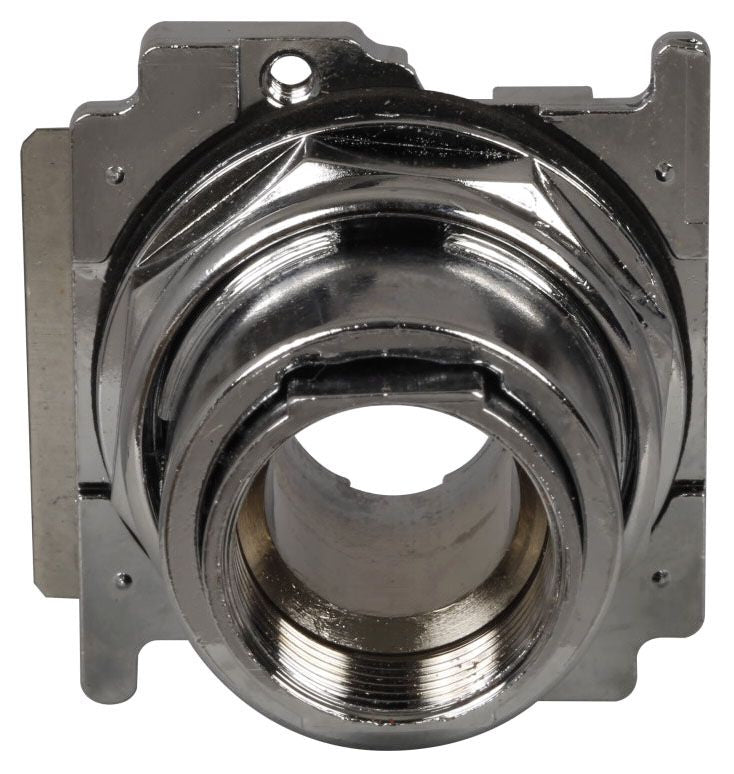

Eaton 10250T9 Standard Push Button Operator 30.5mm

Product Description

The EATON 10250T9 is a standard-type push button operator designed for use in industrial control stations and operator interface assemblies. Built to the 30.5 mm mounting standard, this operator mounts into compatible control station enclosures and actuates the switching contacts behind it. Electricians and industrial control technicians install this component as part of motor control, machine control, or process control panels. The unit measures 1.9 inches in length, 1.9 inches in width, and 2.1 inches in height, and weighs approximately 0.3 pounds, making it a compact and lightweight addition to any control assembly.

This push button operator is suited for industrial environments where reliable manual input is required at a control station. Typical applications include motor start and stop functions, equipment enable or disable switching, and panel-mounted operator control in both light manufacturing and heavy industrial settings. Licensed electricians and controls technicians are the primary installers of this type of device in new panel builds and retrofit or replacement scenarios.

Key Features

• Standard 30.5 mm mounting footprint for compatibility with industry-standard control stations
• Compact form factor at 1.9 x 1.9 x 2.1 inches
• Lightweight construction at 0.3 pounds for easy panel integration
• Standard operator type suitable for general-purpose push button control applications

Compatibility

Designed as an OEM-style replacement or new-installation operator for standard 30.5 mm industrial control station enclosures and contact block assemblies.

Installation Notes

Installation should be performed by a qualified electrician in accordance with NEC requirements and applicable local codes. De-energize the control panel and verify zero voltage with a meter before beginning any wiring or mounting work. The operator body threads or snaps into the control station enclosure cutout before the contact block is attached from the rear. Do not overtighten the mounting hardware, as this can crack the operator body or misalign the contact actuator.

Technical Specifications

• Mounting Size: 30.5 mm
• Dimensions (L x W x H): 1.9 inches x 1.9 inches x 2.1 inches
• Weight: 0.3 pounds
• UPC: 78211320058

Standard Information

• Brand: EATON
• Manufacturer Part Number: 10250T9
