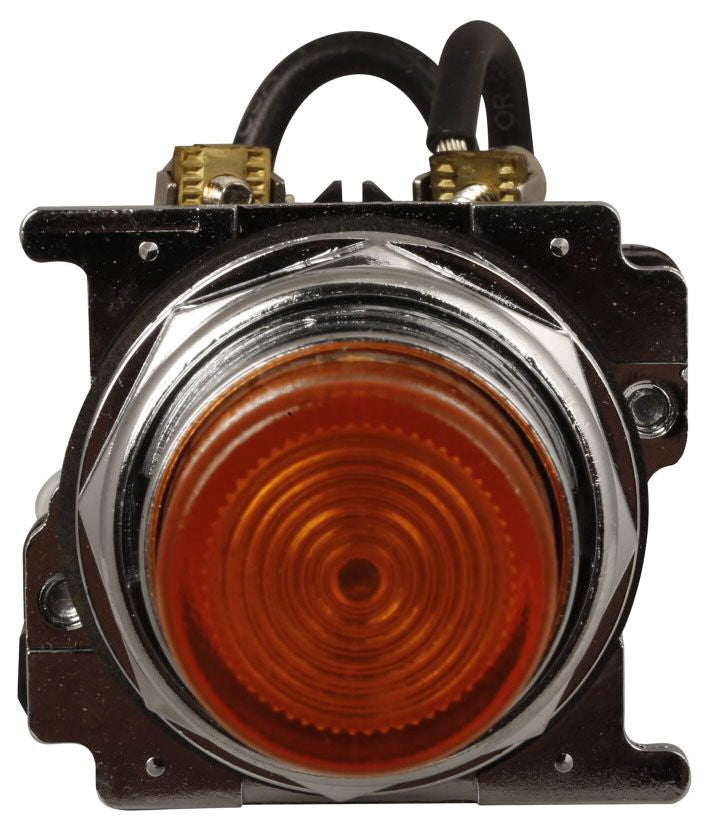

Eaton 10250T74NG Press to Test Pilot Light

Product Description

The EATON 10250T74NG is a press-to-test pilot light indicator designed for use in industrial control panels and electrical enclosures. It allows operators and electricians to verify lamp function without interrupting the circuit by pressing the lens to activate the bulb. This type of indicator is a standard component in machine control wiring, motor control centers, and panel assemblies where visual status indication is required. The unit weighs 0.45 pounds and fits within a compact footprint, making it suitable for densely populated control panels.

This pilot light is used in commercial and industrial electrical applications where operators need reliable, at-a-glance status confirmation for equipment or circuit conditions. Typical installation scenarios include motor starters, automated machinery panels, conveyor control stations, and other hardwired control enclosures. Licensed electricians and industrial control technicians are the primary installers of this type of device.

Key Features

• Press-to-test function allows lamp verification without disconnecting the circuit
• Compact form factor suitable for high-density control panel layouts
• Designed for panel-mount installation in industrial enclosures
• Lightweight construction at 0.45 pounds

Compatibility

Designed as an OEM-style replacement or new-installation pilot light indicator for industrial control panels and motor control center assemblies compatible with the EATON 10250T series mounting configuration.

Installation Notes

Installation should be performed by a qualified electrician in accordance with applicable NEC guidelines. De-energize the control panel and lock out and tag out all power sources before installing or replacing this indicator. Verify the panel cutout size matches the mounting requirements of the 10250T series before installation. Do not exceed the voltage and current ratings specified on the device label.

Technical Specifications

• Weight: 0.45 pounds
• Length: 2.4 inches
• Width: 2.2 inches
• Height: 4.7 inches
• UPC: 78211377454

Standard Information

• Brand: EATON
• Manufacturer Part Number: 10250T74NG
