Product Description

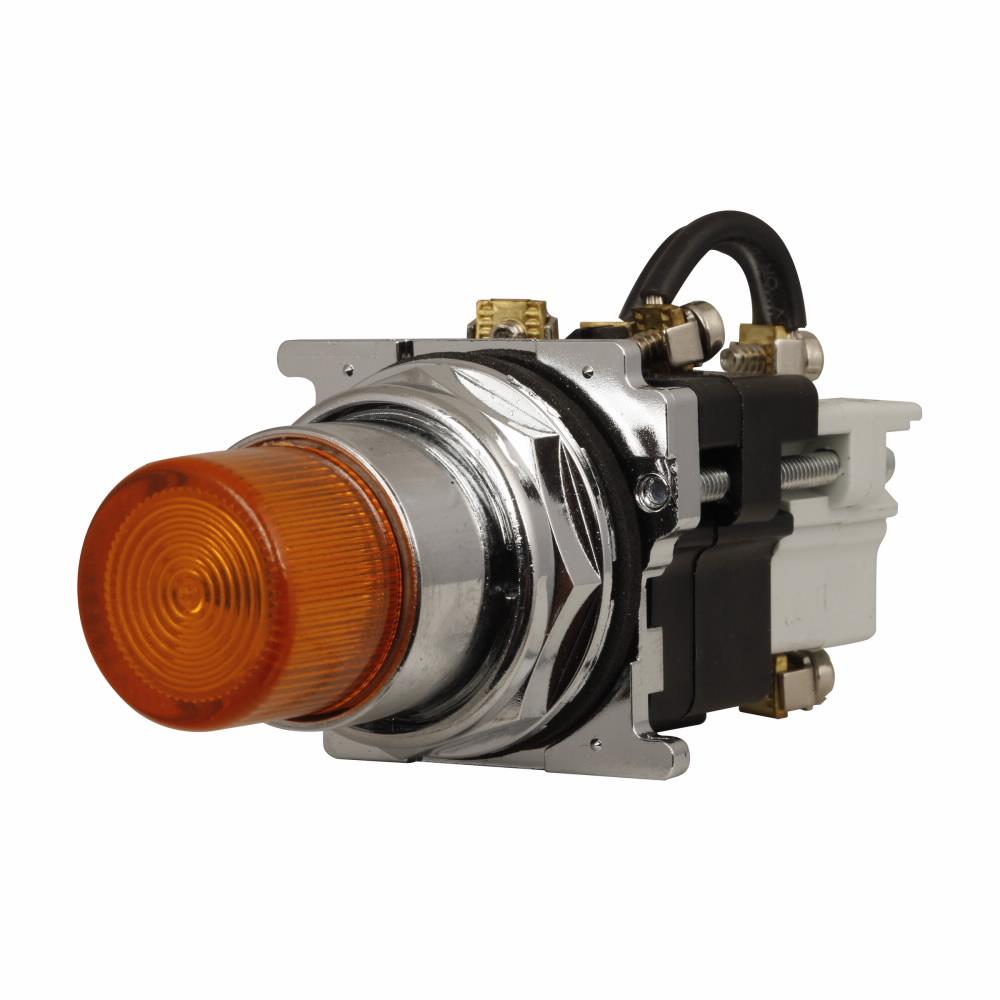

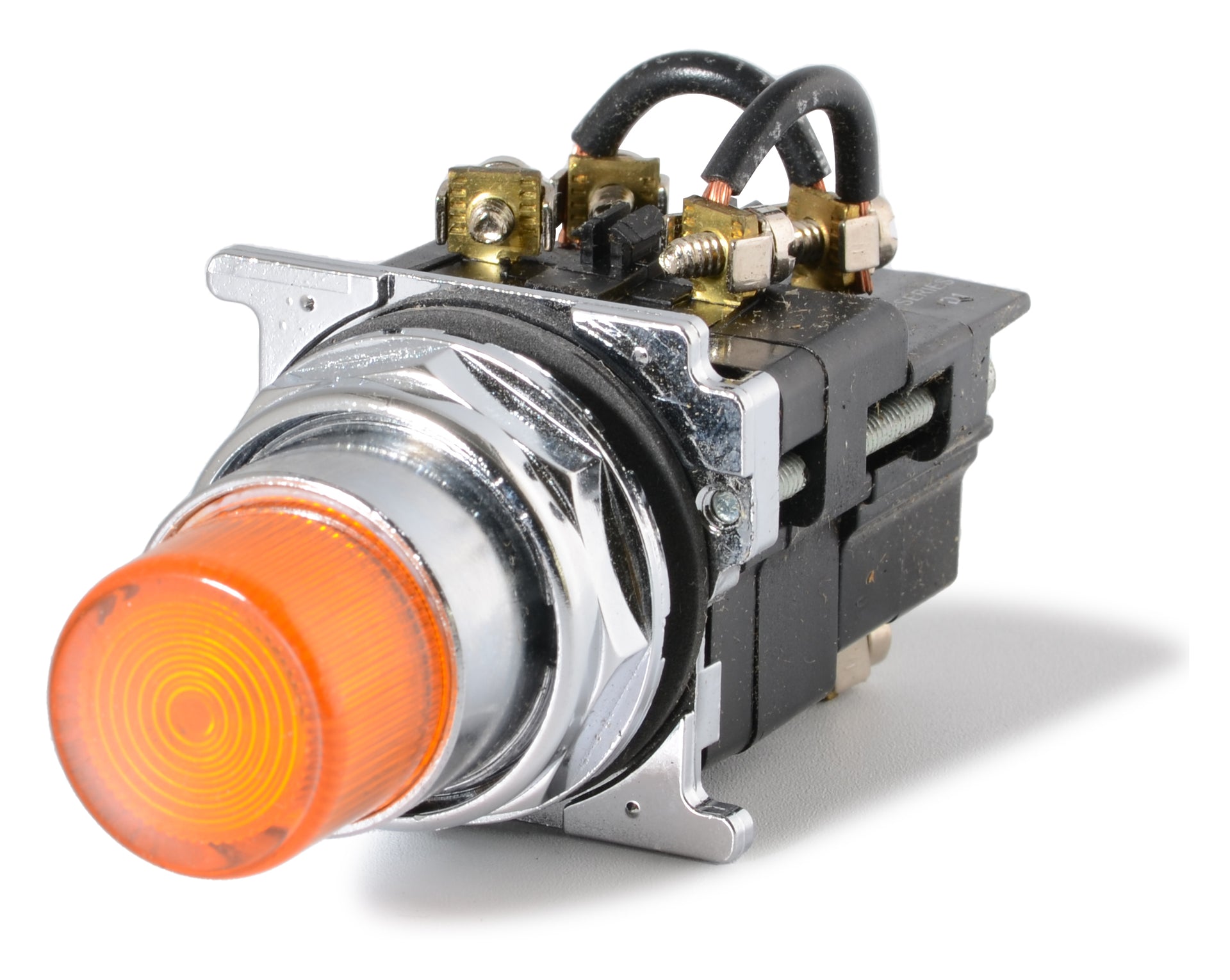

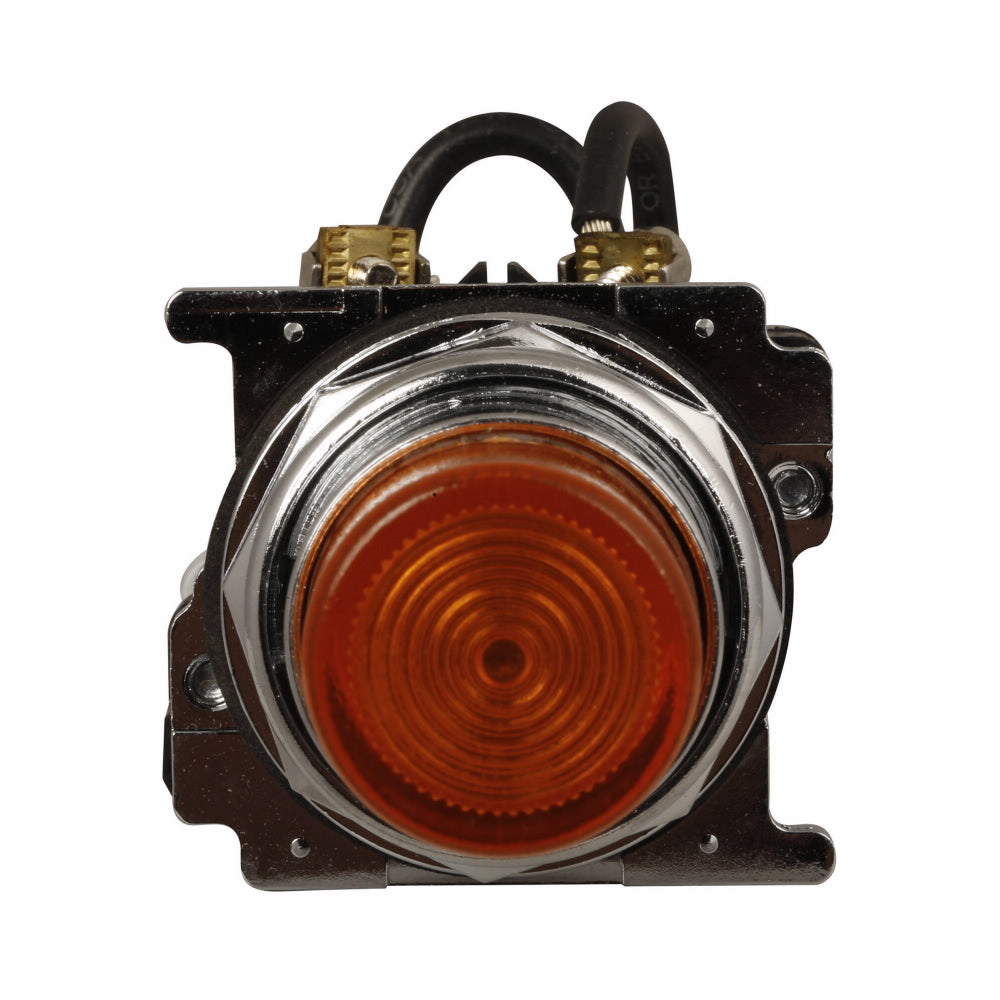

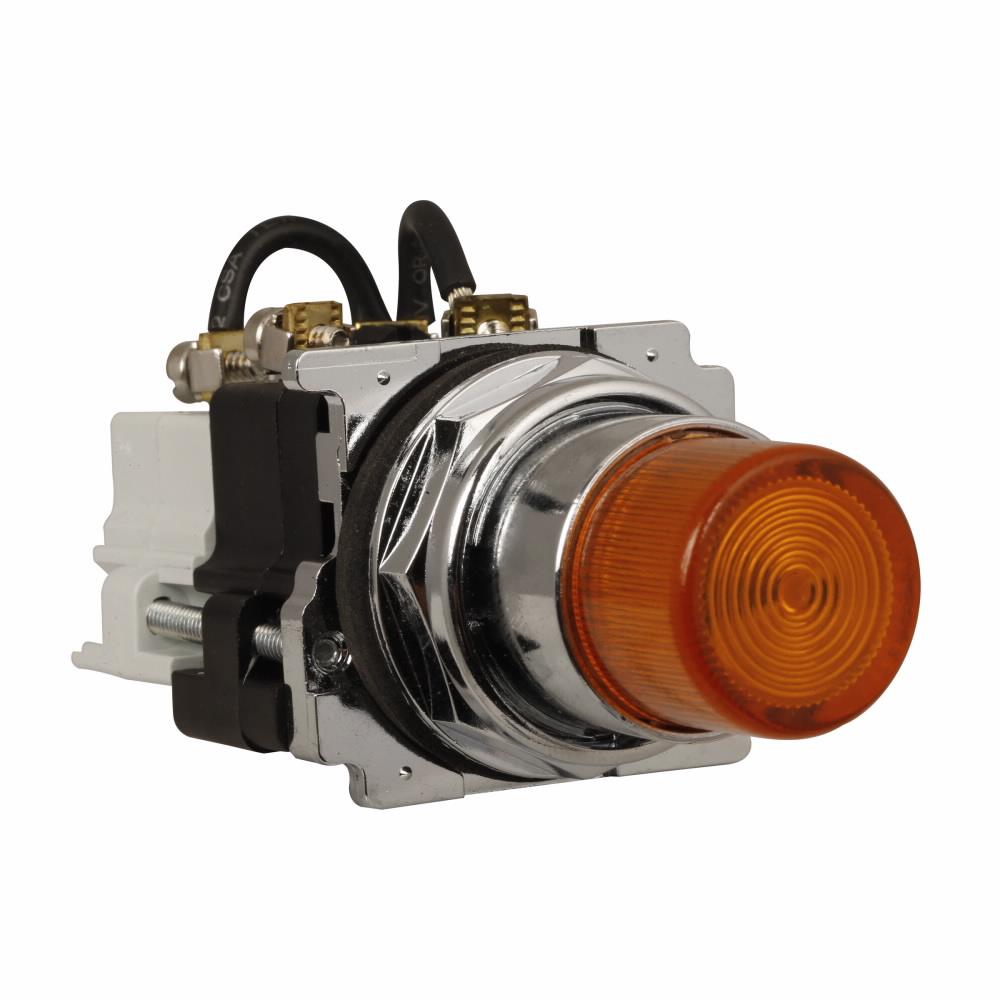

The EATON 10250T74NA is an indicating light featuring a heavy-duty zinc die cast construction. Reliability nibs improve contact reliability even under dry circuit and fine dust conditions. Drainage holes prevent the build up of liquid inside the operator, which can prevent operation in freezing environments. It is oil/watertight and uses an incandescent lamp.
- Enclosed silver contacts with reliability nibs
- Diaphragm seals with drainage holes
- Grounding nibs on the operator casing
Product Highlights
This heavy-duty oil/watertight indicating light is suitable for automation, logic control equipment, electrical assemblies, panels and OEMs applications.
Product Information
Standard Information
-
Brand: EATON
-
Manufacturer Part Number: 10250T74NA
-
Country of Origin: Dominican Republic
Technical Specifications
-
Bezel/Housing: Die Cast Zinc
-
Enclosure Type: NEMA 3/3R/4/4X/12/13
-
Lamp Type: Incandescent
-
Lens Color: Amber
-
Lens Material: Plastic
-
Series: 10250T
-
Size: 30.5 mm
-
Type: Heavy Duty Oil/Watertight PresTest Actuator
-
Voltage Rating: 120 VAC
-
Application: Automation, Logic Control Equipment, Electrical Assemblies, Panels and OEMs Applications
-
Standards/Approvals: CE Certified|CSA Certified|cULus Listed|UL Listed
-
Product Length/Depth: 4.9 in
-
Product Height: 2.2 in
-
Product Width: 2.5 in
-
Compliances: CE Marked
-
Certifications: UL Listed CSA Certified
-
Product Type: Pushbutton
-
Light unit type: Incandescent, transformer
-
Light unit voltage: 120 Vac
-
Actuator: PresTest
-
Style: 30.5 mm
-
Rating: NEMA 3R NEMA 12 NEMA 4X NEMA 3 NEMA 13 NEMA 4
-
Brand: Eaton
-
Nema Rating: 3R, 12, 4X, 3, 13, 4
-
Duty Rating: Heavy Duty
-
Mpn: 10250T74NA
-
Upc: 782113774558
-
Gtin: 00782113774558
-
UNSPSC Code: 39120000
-
Dimensions: 2.2 X 0.45 in W X 4.90 in L
-
Unit of Measure: EA
-
Category: Optoelectronics
-
Panel Indicators, Pilot Lights: Panel Indicators, Pilot Lights
-
Ratings: AC
-
Manufacturer: Eaton Electrical
-
Panel Cutout Shape: Round
-
Panel Cutout Dimensions: 1.20" (30.50mm)
-
Part Status: Active
-
Lens Size: 35.10mm Dia
-
Termination Style: Screw Terminal
-
Ingress Protection: IP65, NEMA 3, 3R, 4, 4X, 12, 13
-
Lens Transparency: Fresnel
-
Body Finish: Chrome Plated
-
Body Material: Metal
-
IP Rating: IP65
-
Includes Lamp Module: Lamp Module Included
-
Includes Lens: Lens Included
-
Includes Push-To-Test: Push-To-Test Included
-
Lamp Bulb Color: Amber
-
Lamp Module Type: Transformer
-
Max Lamp Bulb Voltage: 120 V AC
-
Max Voltage Rating (Supply): 120 V AC
-
NEMA Enclosure Rating: 3; 3R; 4; 4X; 12; 13
-
Overall Depth: 4.9 in
-
Overall Height: 2.2 in
-
Overall Width: 2.5 in
-
Panel Mounting Hole Diameter: 30 mm
-
Resistance Properties: Oil and Grease Resistant; Watertight
-
Standards: CE; CSA; UL Listed
-
Terminal Connection: Saddle Clamp
-
UNSPSC: 39121534
-
Voltage: 120V
