Eaton 10250T68 Pushbutton Light Unit 600 VAC

Product Description

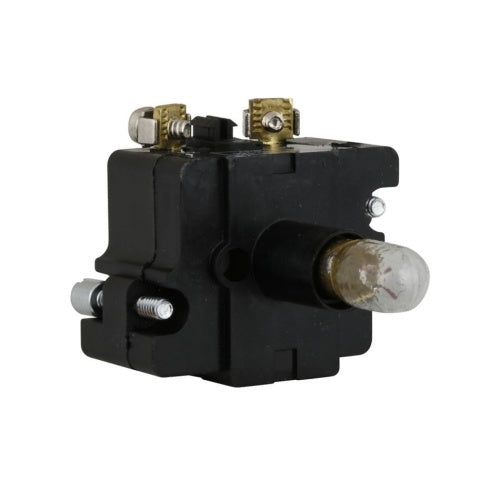

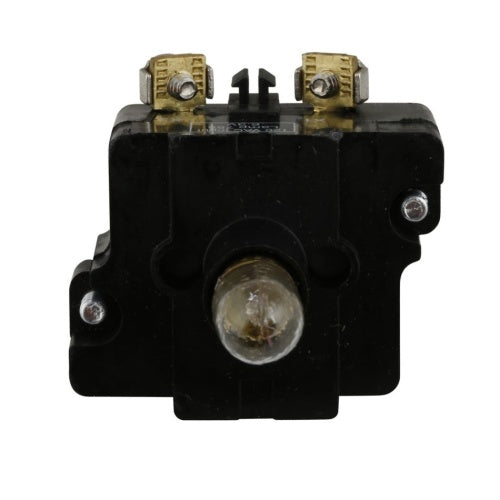

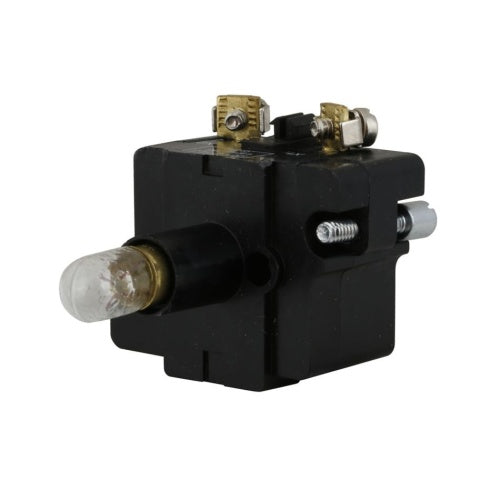

The Eaton 10250T68 is a 30.5 mm heavy-duty pushbutton light unit with an incandescent transformer, designed for use in challenging environments. Constructed with robust zinc die-casting, ensuring durability and longevity. It features reliability nibs that enhance contact performance, even in dry circuit and fine dust conditions. Drainage holes safeguard against liquid accumulation.

• Heavy-duty zinc die-cast construction
• 30.5 mm diameter
• 600 VAC voltage rating

Product Highlights

The 10250T series pushbuttons are water and oil-tight, making them ideal for applications demanding unwavering reliability and durability.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: 10250T68

Technical Specifications

• Product Name: Eaton 10250T pushbutton light unit
• Catalog Number: 10250T68
• UPC: 782113458618
• Product Length/Depth: 2.1 in
• Product Height: 3.2 in
• Product Width: 2.4 in
• Compliances: CE Marked
• Certifications: UL Listed CSA Certified
• Product Type: Pushbutton accessory
• Type: 30.5 mm, Heavy-Duty
• Light unit type: Incandescent, transformer
• Voltage rating: 600 V
• LED lamp number: #755
• Series: 10250T
• UNSPSC: 39121544
• Lamp Type: Incandescent
• Application: Illuminated Push-Pull Devices, Electrical Assemblies, Panels and EOEM Applications
• Size: 30.5 mm
• Alternate Mfr Part Number: 10250T68
• Brand: Eaton - Cutler Hammer
• Component: Push Button
• (Switching-Indication) AC Voltage: 600 Volt
• Manufacturer: Eaton
