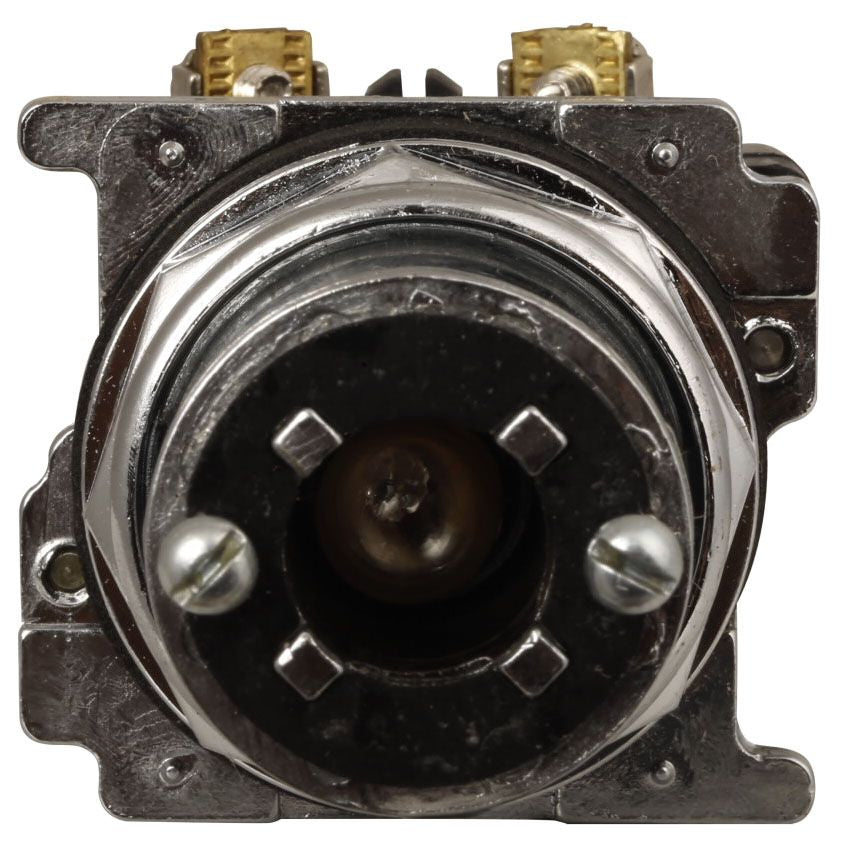

Eaton 10250T6383 Knob Lever Type Selector Switch

Product Description

The EATON 10250T6383 is a knob and lever type operator designed for use with 30 mm industrial control stations and selector switch assemblies. It provides the physical actuation mechanism that allows operators to select between control circuit positions in industrial and commercial electrical panels, machine control enclosures, and operator interface stations. This component is installed by licensed electricians and industrial controls technicians working on motor control, process control, and machinery automation systems.

This operator fits into heavy-duty industrial environments where reliable manual actuation is required. Typical applications include machine tool control panels, conveyor systems, pump control stations, and factory automation equipment. It is used wherever a durable selector switch operator is needed to meet the demands of frequent use in industrial service conditions.

Key Features

• Knob and lever type actuation for positive, repeatable switch selection
• Designed for 30 mm control station mounting format
• Compact form factor at 3.4 inches long by 2.4 inches wide by 2.1 inches tall
• Lightweight construction at 0.35 pounds for easy panel integration
• Suited for industrial control and automation panel applications

Compatibility

Designed as an OEM-style operator component for use with 30 mm industrial selector switch control station assemblies in commercial and industrial electrical control applications.

Installation Notes

Installation should be performed by a qualified electrician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize the control circuit and lock out the power source before removing or installing any control station component. Verify the operator seats fully and locks into the contact block or switch body before restoring power. Do not force the operator into place, as improper seating can cause intermittent contact or premature wear.

Technical Specifications

• Operator Type: Knob and Lever
• Length: 3.4 inches
• Width: 2.4 inches
• Height: 2.1 inches
• Weight: 0.35 pounds
• UPC: 78211334757

Standard Information

• Brand: EATON
• Manufacturer Part Number: 10250T6383
