Eaton 10250T6323 selector switch 30.5 mm

Product Description

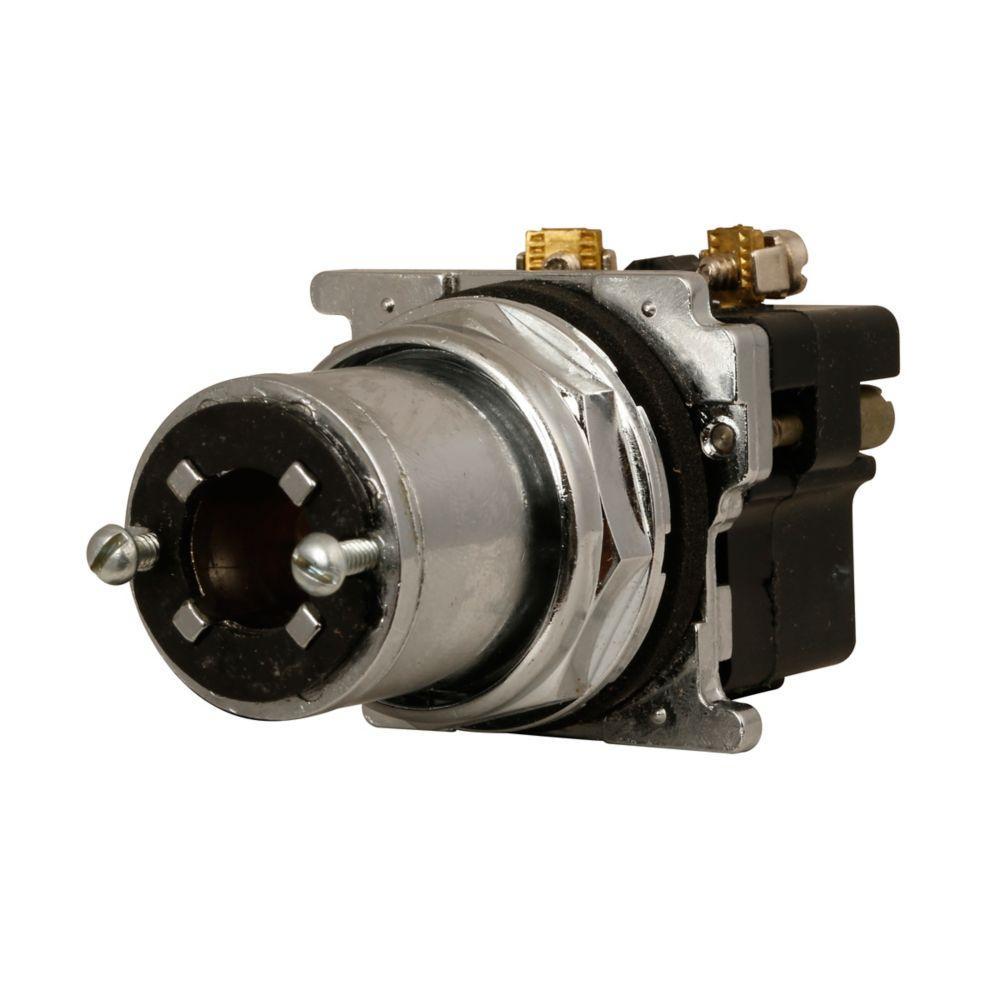

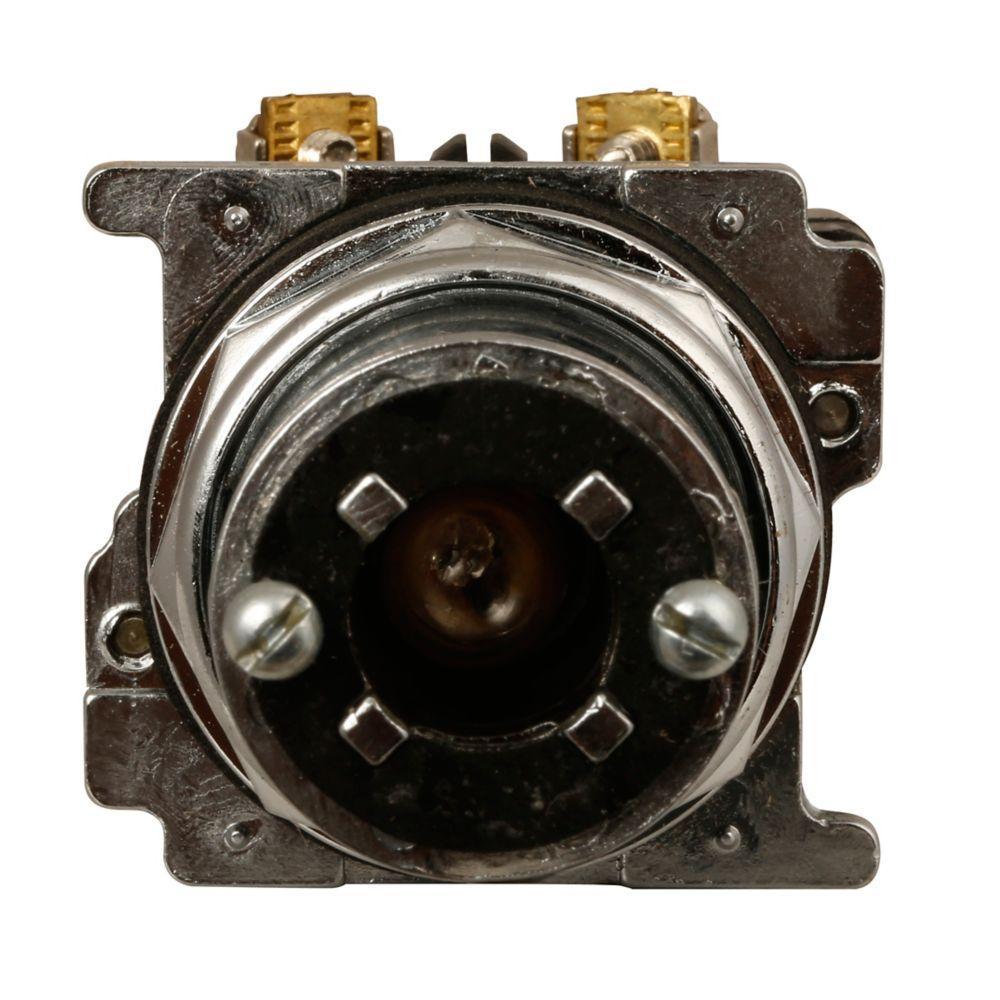

The Eaton 10250T6323 is a 30.5 mm pushbutton line featuring a die cast zinc construction with polished chrome housing and mounting nut. It is a full voltage heavy duty oil/watertight illuminated selector switch with maintained/spring return from right contact mode. It has 3 positions and a 60 deg left center/right throw.

• Heavy duty die cast zinc construction
• Enclosed silver contacts with reliability nibs
• Diaphragm seals with drainage holes

Product Highlights

The Eaton 10250T selector switch is designed for use in demanding environments. Its robust construction and reliable performance make it suitable for a variety of industrial applications.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: 10250T6323

Technical Specifications

• Bezel/Housing: Polished Chrome
• Cam Code: 3
• Contact Mode: Maintained/Spring Return from Right
• Enclosure Type: NEMA 1/2/3/3R/4/4X/12/13/IP65
• Lamp Type: Incandescent
• Material: Die Cast Zinc
• Series: 10250T
• Temperature Rating: 1 to 150 deg F
• Throw: 60 deg Left Center/Right
• Type: Full Voltage Heavy Duty Oil/Watertight Illuminated
• Voltage Rating: 12 VAC/VDC
• Size: 30.5 mm
• Number of Positions: 3
• Product Length/Depth: 1 in
• Product Height: 1 in
• Product Width: 1 in
• Product Diameter: 1.38 in
• Compliances: CE Marked
• Certifications: CSA Certified UL Listed
• Product Type: Pushbutton
• Bezel: Chrome
• Illumination: Illuminated
• Rating: NEMA 3, NEMA 3R, NEMA 4, NEMA 4X, NEMA 12, NEMA 13
• Manufacturer: Eaton
• Selector Function: Spring Return From Right Maintained at Left
• Max Voltage: 12 VAC, 12 VDC
• Lamp Voltage: 12 VAC, 12 VDC
• Mounting: 30 mm
• NEMA Rating: NEMA 12, NEMA 13, NEMA 3, NEMA 3R, NEMA 4, NEMA 4X
• Approvals: CE
