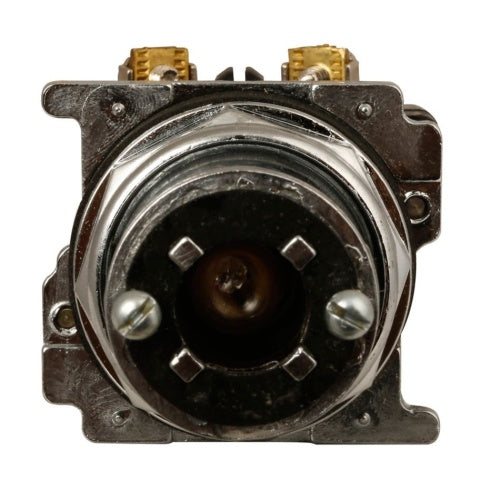

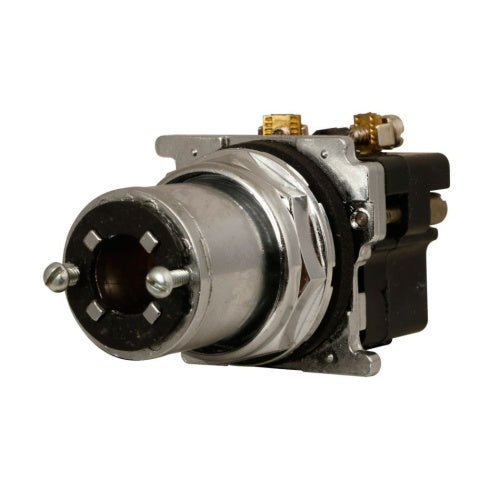

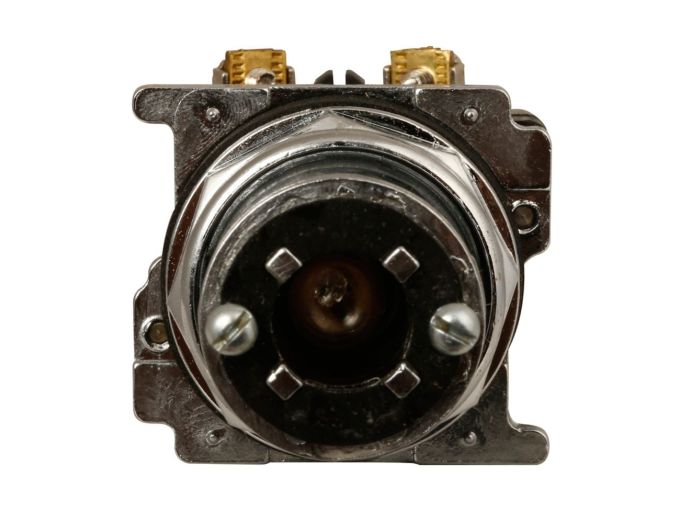

Eaton 10250T6223 Pushbutton, Illuminated, 3 Position, 120 Vac

Product Description

The EATON 10250T6223 CUTLER HA mmER Pushbutton is a 30.5 mm heavy-duty operator with a three-position design using cam 3 and a 60 throw. It features an illuminated incandescent transformer light unit with a 120 Vac full voltage and 6 Volt lamp. Suitable for NEMA 3, 3R, 4, 4X, 12, and 13 environments.

• Warranty is one year
• Compliance with CE Marked
• Certification with UL Listed and CSA Certified

Product Highlights

This EATON Cutler Hammer Pushbutton is widely used in industrial control panels and process automation systems for reliable machine control and equipment mode selection.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: 10250T6223

Technical Specifications

• UNSPSC Code: 39120000
• Alternate Mfr Part Number: 10250T6223
• Brand: Eaton - Cutler Hammer
• Dimensions: 0.40 in W X 3.40 in L
• Manufacturer Part Number: 10250T6223
• Series: 10250T Series
• Unit of Measure: EA
• Manufacturer: Eaton
• Product Series: 10250T
• Family Series: Eaton Switches, 10250T Series
• Description: Eaton 10250T pushbutton, 10250T, 30.5 mm, Heavy-Duty, 120 Vac with 6 Volt Lamp, Cam 3, NEMA 3, 3R, 4, 4X, 12, 13, Illuminated, Three position, Incandescent, Transformer light unit, 60 ° throw
• Illuminated: Yes
• Number of Positions: 3
• Mounting: 30 mm
• Selector Function: Spring Return From Right Maintained at Left
• Max Voltage: 120 VAC, 120 VDC
• Lamp Type: Incandescent
• Lamp Voltage: 120 VAC, 120 VDC
• Bezel: Metal Round
• NEMA Rating: NEMA 12, NEMA 13, NEMA 3, NEMA 3R, NEMA 4, NEMA 4X
• Approvals: CE, CSA, UL
• Net Weight: 0.4 lbs
• Gross Weight: 0.4 lbs
• (Switching-Indication) NEMA Rating: NEMA 4X
• Component: Push Button
• (Switching-Indication) AC Voltage: 120 Volt
• (Switching-Indication) Size: 30.5 mm
• (Switching-Indication) Light Type: LED - Transformer
• Type: Heavy-Duty
• IP/NEMA Rating: NEMA 3R, NEMA 4X, NEMA 12, NEMA 4
• SKU: 10250T6223
