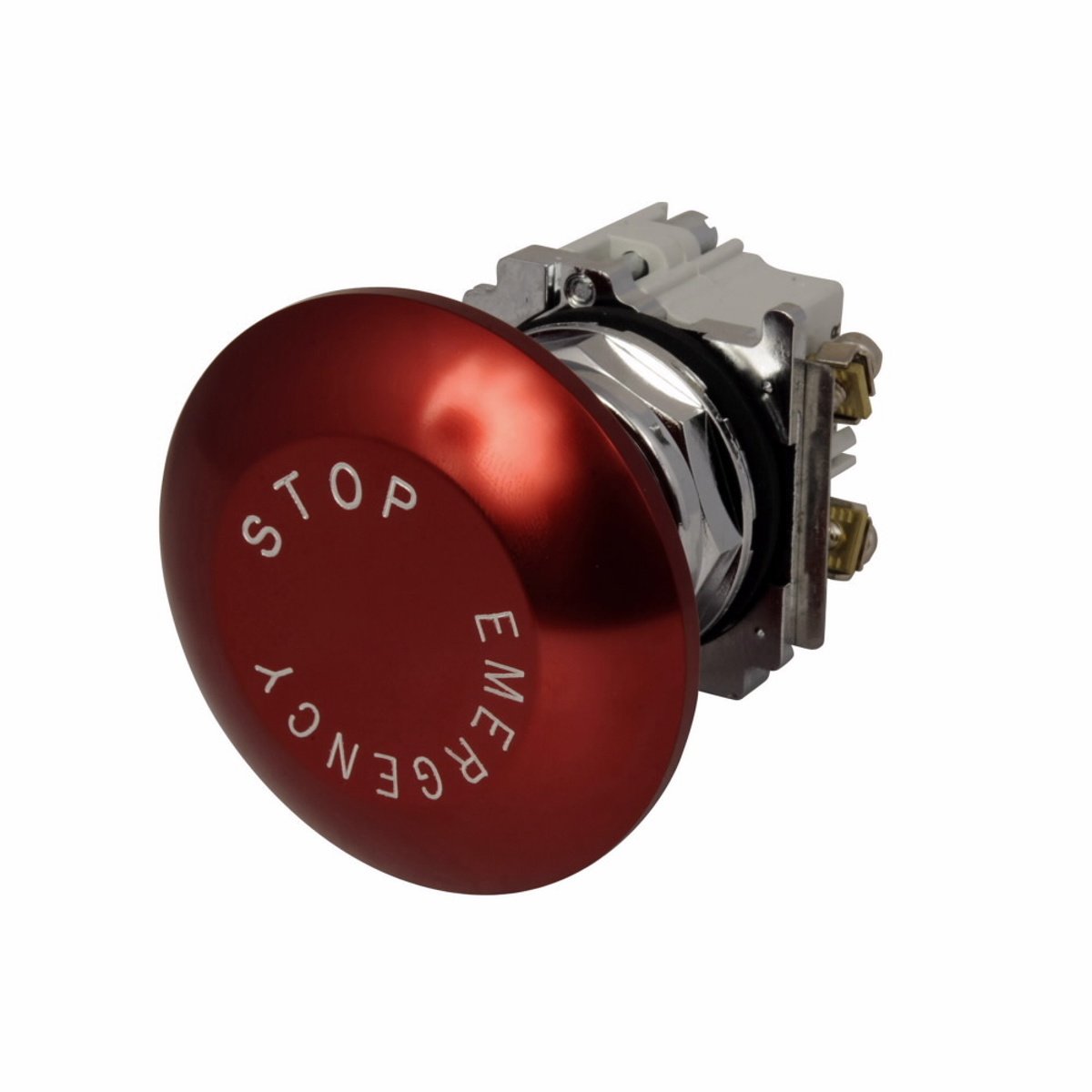

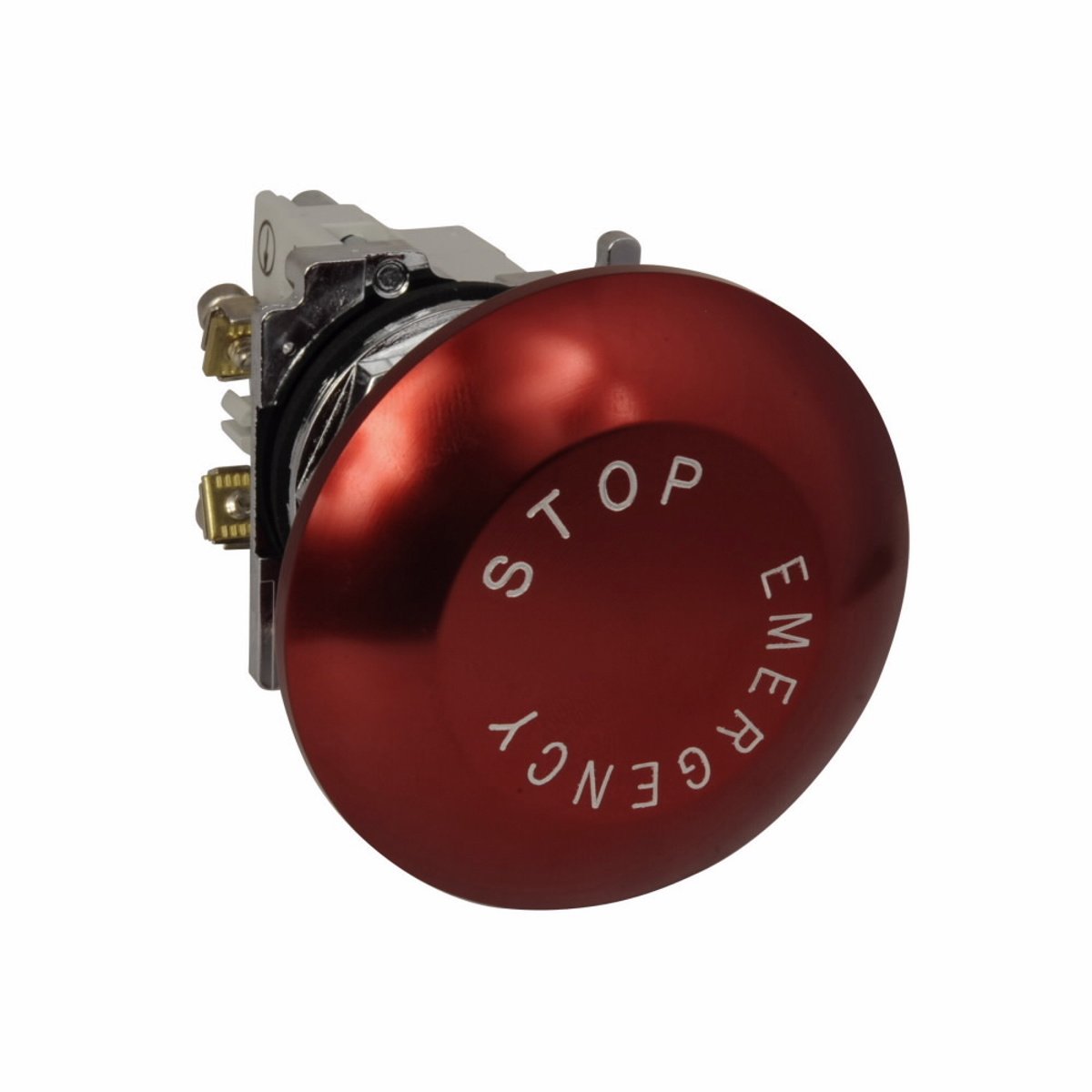

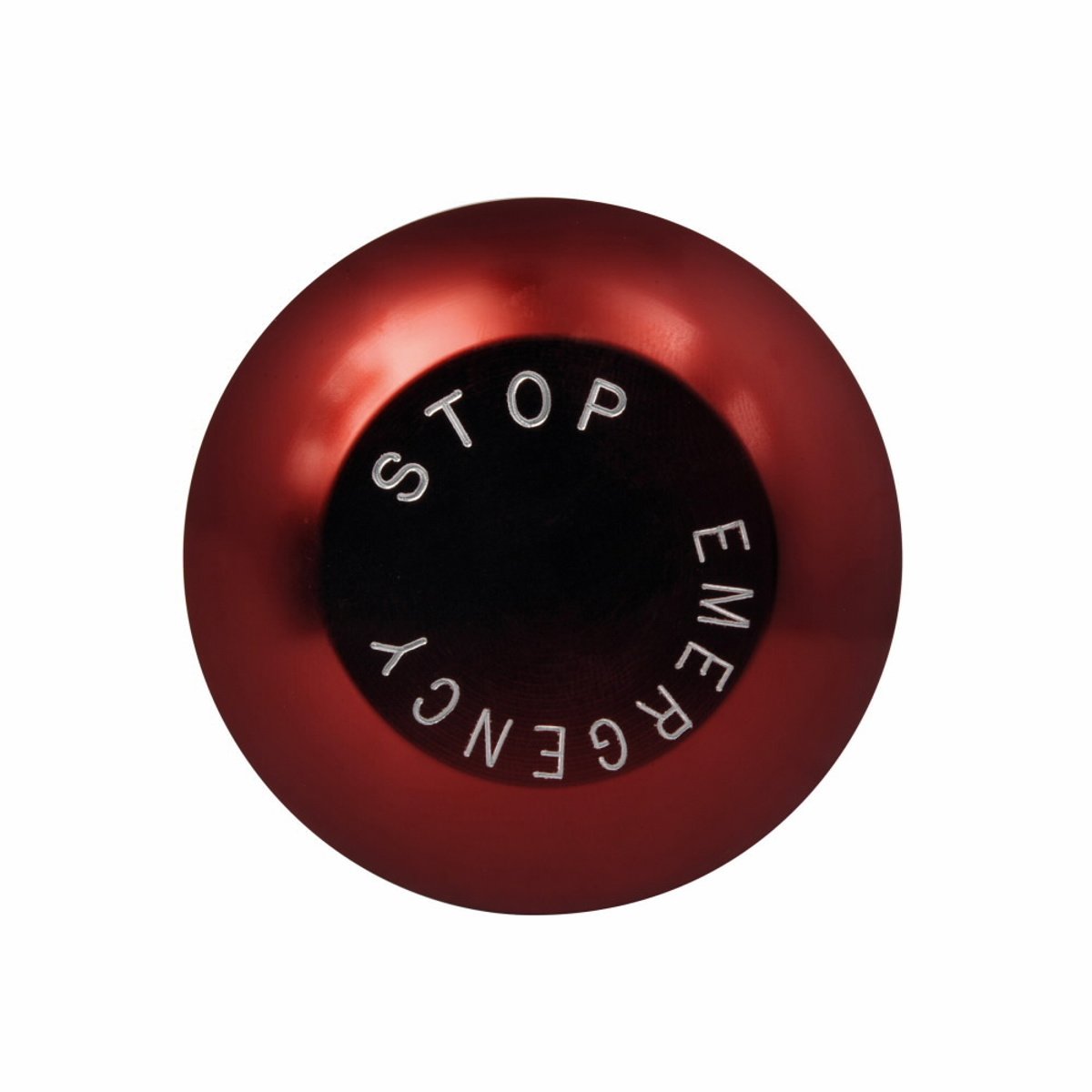

Eaton 10250T5J63-1X Pushbutton 65 mm

Product Description

The Eaton 10250T5J63-1X pushbutton features a heavy-duty zinc die cast construction. Reliability nibs improve contact reliability even under dry circuit and fine dust conditions. Drainage holes prevent the buildup of liquid inside the operator, which can prevent operation in freezing environments. It has a 1NO-1NC contact configuration, and is non-illuminated with maintained push and pull operation.

• Heavy-duty zinc die cast construction with chrome plated housing and mounting nut.
• Features reliability nibs to improve contact reliability.
• Drainage holes prevent build-up of liquid inside the operator.

Product Highlights

This 65 mm EATON pushbutton is ideal for stationary machinery and equipment. It is NEMA rated 3, 3R, 4, 4X, 12, and 13.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: 10250T5J63-1X
• Country of Origin: Dominican Republic

Technical Specifications

• Catalog Number: 10250T5J63-1X
• Manufacturer: Eaton
• Brand: EATON
• Country of Origin: Dominican Republic
• Made in USA: No
• Actuator: Standard
• Application: Emergency stop
• Contact Configuration: 1NO-1NC
• Standard: UL Listed,CSA Certified,CE Marked
• UPC: 782113948973
• GTIN: 00782113948973
• Item Type: Pushbutton
• Size: 65 mm
• Bezel/Housing: Polished Chrome Bezel
• Contact Mode: Maintained
• Contact Rating: 10 A at 600 VAC
• Enclosure Type: NEMA 1/2/3/3R/4/4X/12/13/IP65
• Environmental Conditions: 1 to 150 deg F Operating Temperature, 95% Relative Humidity at 60 deg C
• Finish: Polished Chrome
• Legend: EMERGENCY STOP
• Material: Die-Cast Zinc
• Number of Positions: 2
• Series: 10250T
• Terminal Type: Exposed Screw
• Type: Assembled Heavy Duty
• Contact Type: Slow Make/Break
• Operator Type: Push-Pull
• Duty: Heavy-Duty
• NEMA: 3, 3R, 4, 4X, 12, 13
• Illumination: Non-illuminated
• Position: Two-position
• Operation: Maintained push and pull
• Actuator color: Red actuator
• Product Length/Depth: 4 in
• Product Height: 2.5 in
• Product Width: 3.3 in
• Compliances: CE Marked
• Certifications: UL Listed CSA Certified
• Catalog Notes: Assembled at Factory
• Operating mode: Push: maintained Pull: maintained
• Rating: NEMA 3 NEMA 4X NEMA 3R NEMA 12 NEMA 13 NEMA 4
• IP Rating [Specifications]: 65
• Basic Material [Specifications]: Metal
• Head Material [Specifications]: Aluminum
