Eaton 10250T5B63-1X Pushbutton Heavy-Duty Non-Illuminated 40 mm 1NO-1NC

Product Description

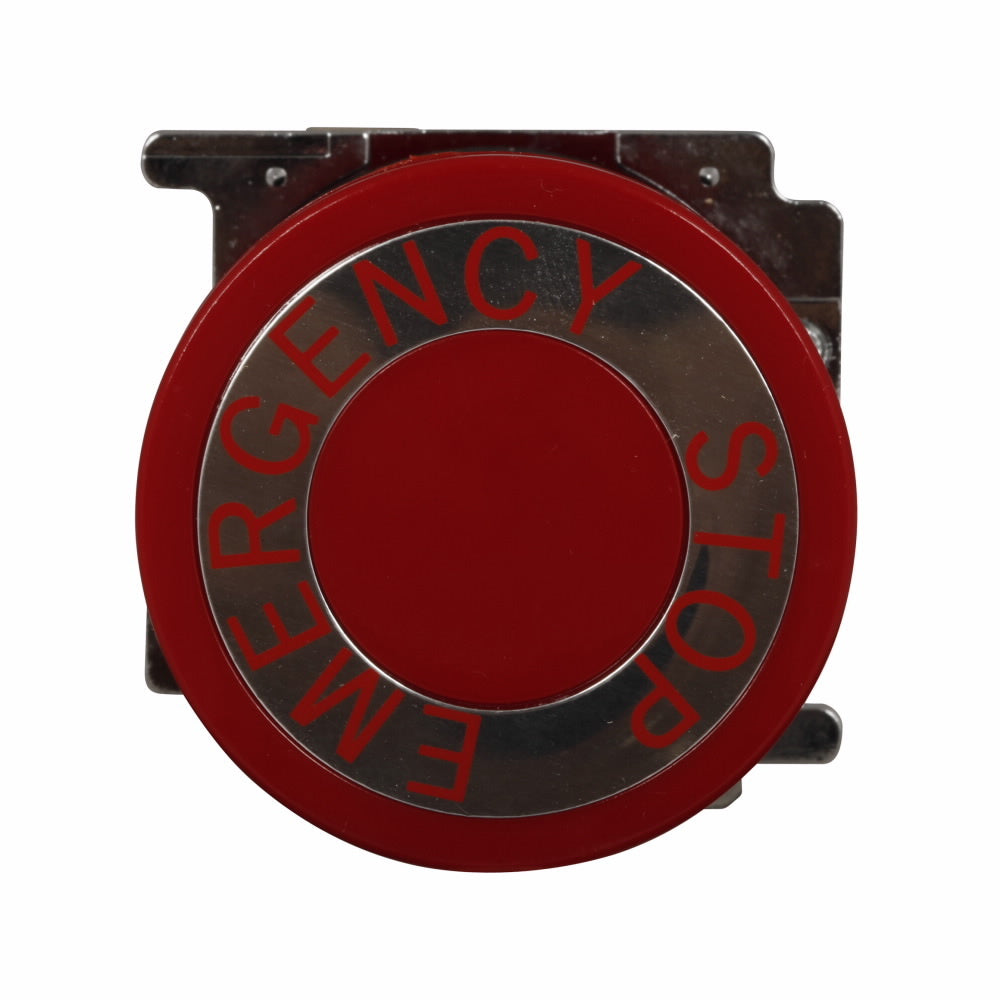

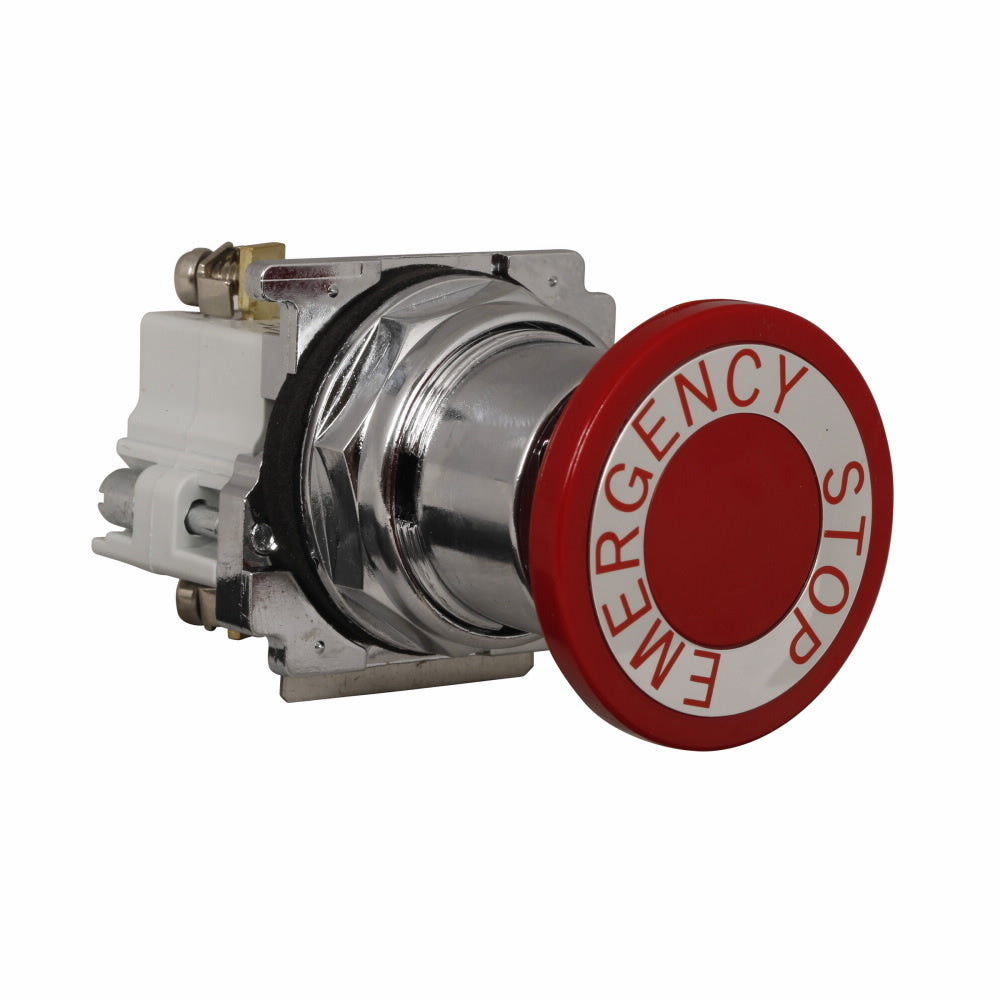

Eaton 10250T5B63-1X is a heavy-duty pushbutton with a diameter of thirty point five mm. It features a zinc die-cast construction ensuring durability in various environments. This model is designed for emergency stop applications. The pushbutton's contact configuration is one normally open and one normally closed, allowing for versatile use in machinery and equipment.

• Constructed with a durable zinc die-cast body
• Includes two positions: maintained push and pull operation
• Provides clear EMERGENCY STOP indication

Product Highlights

This pushbutton is ideal for use in stationary machinery outside factory settings. The design includes drainage holes to prevent liquid accumulation, enhancing reliability.

Product Information

Standard Information

• Manufacturer: Eaton
• Country of Origin: Dominican Republic

Technical Specifications

• Catalog Number: 10250T5B63-1X
• UPC: 782113752525
• Size: 40 mm
• Actuator Type: Standard
• Contact Configuration: 1 NO-1 NC
• Environmental Rating: NEMA 1, 2, 3, 3R, 4, 4X, 12, 13
• Operating Temperature: 1 to 150 degrees Fahrenheit
• Humidity: 95% at 60 degrees Celsius
