Eaton 10250T5B62-S101 Pushbutton Control Station EMERGENCY STOP

Product Description

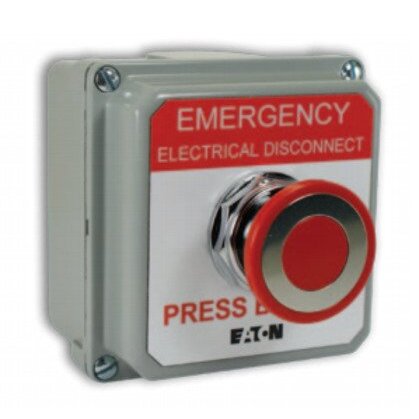

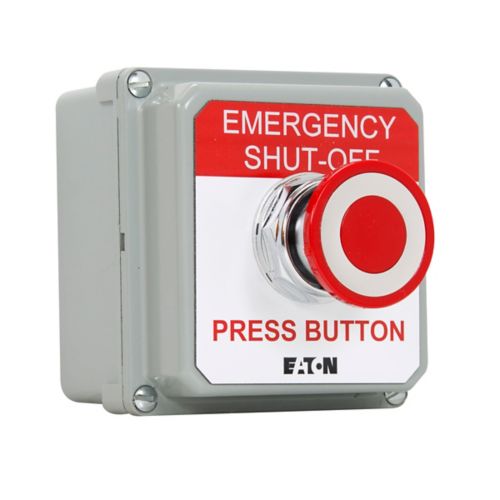

The Eaton 10250T5B62-S101 is an assembled control station with a push/pull operator for emergency stop functionality. It features a gray, die-cast zinc enclosure and 1NO-1NC contact configuration. This control station is suitable for applications requiring reliable emergency stop functionality in demanding environments.

• Enclosed silver contacts with reliability nibs
• Diaphragm seals with drainage holes
• Grounding nibs on the operator casing

Product Highlights

Eaton's 10250T pushbutton control station offers a robust and reliable solution for emergency stop applications, with a focus on durability and functionality in harsh environments.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: 10250T5B62-S101

Technical Specifications

• SKU: 10250T5B62-S101
• Product Name: Eaton 10250T pushbutton control station
• Catalog Number: 10250T5B62-S101
• UPC: 786685357447
• Product Length/Depth: 3 in
• Product Height: 4 in
• Product Width: 3.88 in
• Compliances: RoHS Compliant CE Marked
• Certifications: UL Listed CSA Certified
• Product Type: Pushbutton control station
• Type: Emergency stop
• Actuator color: Gray
• Enclosure: ASA 61 gray die cast zinc
• Contact configuration: 1 NO-1 NC
• Series: 10250T
• Product category: Push/pull operator
• Degree of protection: NEMA 4X NEMA 4 NEMA 13 NEMA 12
• Inscription: EMERGENCY STOP
• Color: Gray
• Material: Die-cast Zinc
• Operator Type: Push-Pull Pushbutton
• Number of Operators: 1
• NEMA Rating: NEMA 4/4X/12/13
• Size: 30 mm
