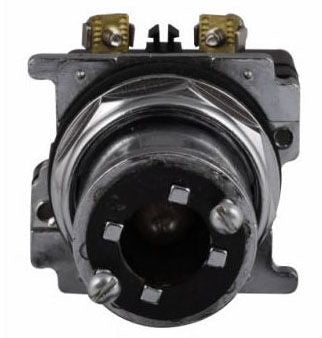

Eaton 10250T5971 Knob Lever Type Operator

Product Description

The EATON 10250T5971 is a knob and lever type operator designed for use with industrial control stations and pushbutton enclosures. This component serves as the manual actuating interface between an operator and the underlying electrical control circuit. Licensed electricians and industrial maintenance technicians install this type of operator as part of control station assemblies in machine control, process automation, and panel wiring applications. The compact form factor and standard mounting footprint make it a straightforward field replacement or new-installation component for control station builds.

This operator is suited for industrial and commercial control panel applications where a knob or lever-style actuator is required. It fits into the 10250T series control station product family, making it applicable to a wide range of operator interface assemblies found in manufacturing facilities, utilities, and commercial mechanical rooms. Installers typically mount this type of operator into a drilled enclosure knockout or a dedicated control station body.

Key Features

• Knob and lever style actuation for manual control station operation
• Compact dimensions of 3.4 inches by 2.4 inches by 2.1 inches for standard panel fitment
• Lightweight at 0.4 pounds for easy handling during installation
• Part of the EATON 10250T series operator interface platform
• Designed for use in industrial control station and enclosure assemblies

Compatibility

Designed as an OEM-style replacement or new-installation operator for industrial control stations and pushbutton enclosure assemblies requiring a knob or lever type actuator.

Installation Notes

Installation of control station operators should be performed by a qualified electrician in accordance with applicable NEC requirements. De-energize and lock out the control panel before removing or installing any operator component. Verify that the enclosure or control station body is compatible with the operator mounting interface before beginning installation. Do not force the operator into position, as damage to the actuator or contact block may result.

Technical Specifications

• Operator Type: Knob and Lever
• Length: 3.4 inches
• Width: 2.4 inches
• Height: 2.1 inches
• Weight: 0.4 pounds
• UPC: 78211322743

Standard Information

• Brand: EATON
• Manufacturer Part Number: 10250T5971
