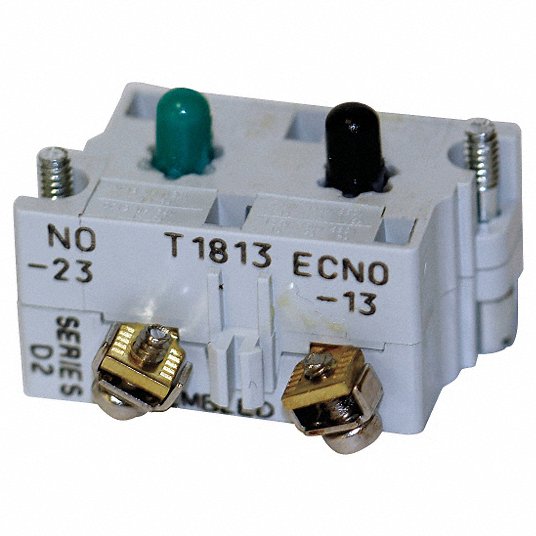

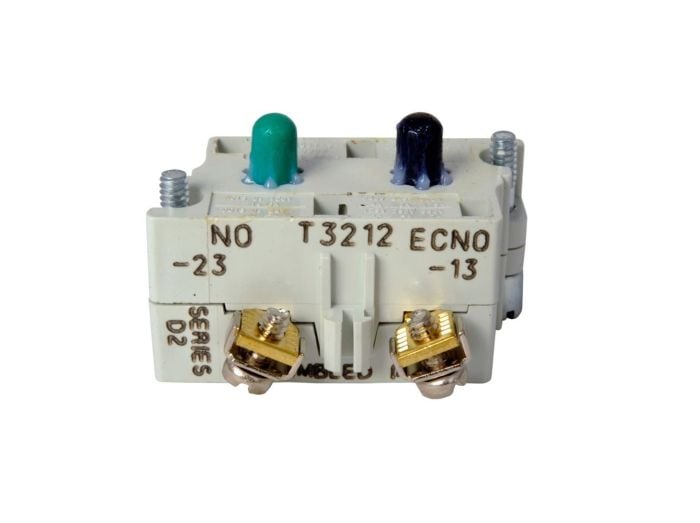

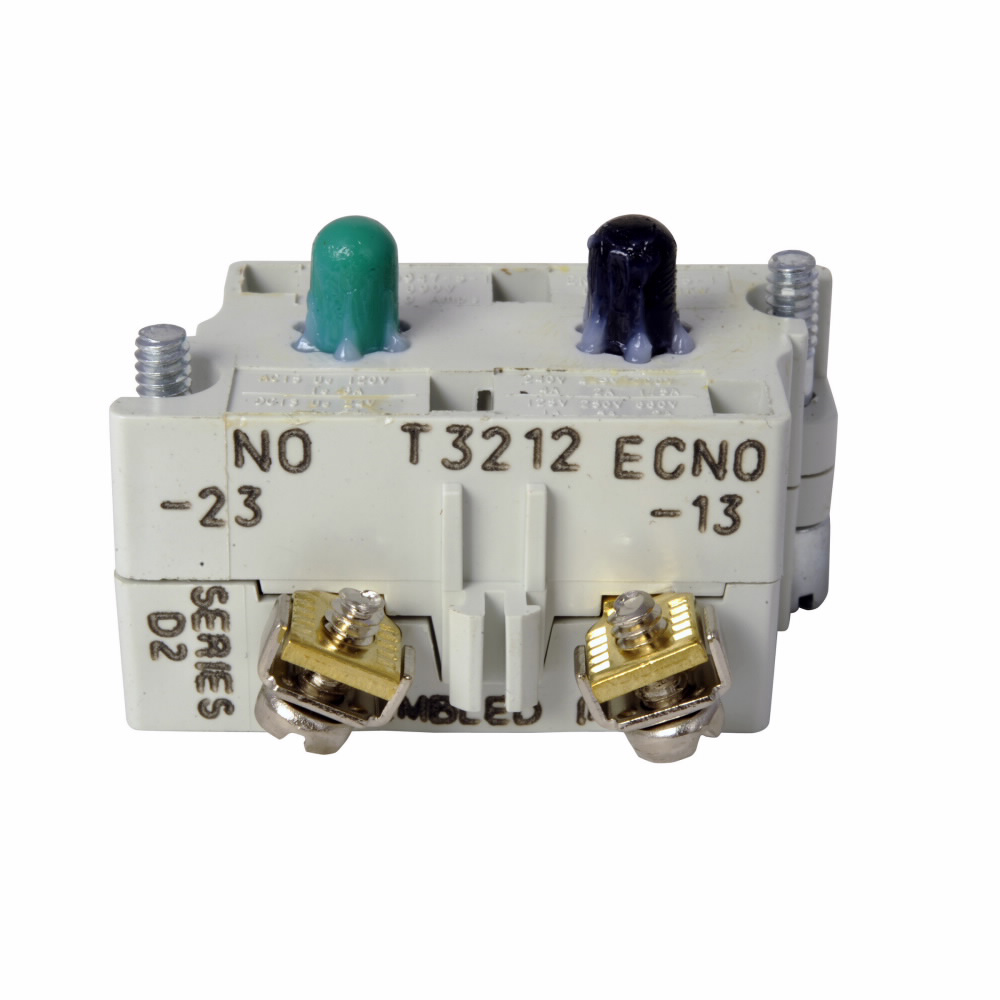

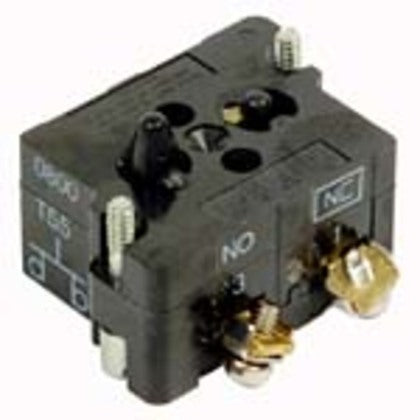

Eaton 10250T57 Contact Block 30.5 mm

Product Description

The Eaton 10250T57 is a contact block designed for use with compatible operator switches and pilot lights to connect input and output wires. Features a heavy-duty zinc die-cast construction with chrome plated housing and mounting nut. Suitable for stationary machinery and equipment outside factory environments.

• 30.5 mm Mounting Size
• Heavy-Duty Oiltight Design
• Pressure terminal

Product Highlights

The Eaton 10250T57 contact block ensures reliable connections in demanding industrial applications.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: 10250T57
• Country of Origin: Dominican Republic

Technical Specifications

• GTiN: 00782113225449
• Size: 30.5 mm
• Type: Heavy-Duty
• Brand: Eaton
• Material: Silver Contact
• Used With: Push Buttons
• Duty Rating: Heavy Duty
• Product UPC: 78211322544
• 12-Digit UPC: 782113225449
• Applications: Stationary Machinery and Equipment Outside Factory
• Terminal Type: Pressure
• Contact Configuration: 1 NO (EC), 1 NC (LO)
• Product Type: Pushbutton accessory
• Series: 10250T
• Rating: NEMA 3 NEMA 4 NEMA 12 NEMA 3R NEMA 13 NEMA 4X
• Terminals: Pressure
• Catalog Number: 10250T57
• Compatible with Series: 10250T; E34
• Compatible Operator: Push Button
• AC Contact Rating: 10 A @ 660 V
• DC Contact Rating: 10 A @ 600 V
• Includes Mounting Block: Mounting Block Included
• Mounting Location: Front
• NEMA Contact Rating Designation: A600/P600
• Panel Mounting Hole Diameter: 30 mm
• Standards: CE; CSA; UL
• Switch Action: Momentary
• Terminal Connection Type: Screw Clamp
• UNSPSC: 39121512
• Poles: 2
• Mounting: Base
• Volts AC: 600
• Circuit Arrangement: ECNO/NO
• Manufacturer Part Number: 10250T57
• Manufacturer: Eaton
• Product Series: 10250T
• Family Series: Eaton Switches, 10250T Series
• Description: Eaton 10250T pushbutton contact block, 10250T series, Special Function Contact Block, 1LONC-1ECNO special function, NEMA 3, 3R, 4, 4X, 12, 13, Pressure terminal
• Net Weight: 0.1 lbs
• Gross Weight: 0.1 lbs
• Amperage: 10
• Voltage: 660VAC/VDC
• Approval: UL, CSA, CE
• Nema Rating: 3, 3R, 4, 4X, 12, 13
• Width (in): 1.3
• Action: Momentary
