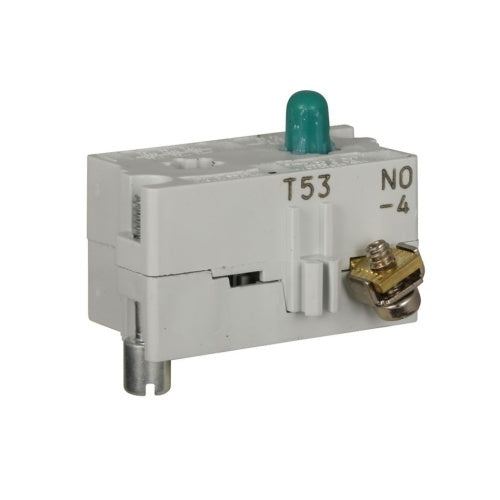

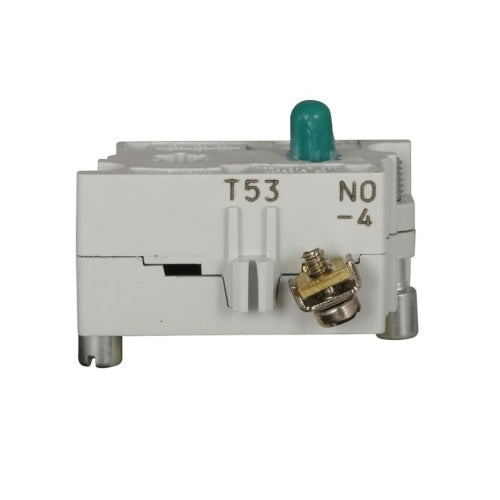

Eaton 10250T53E Pushbutton Contact Block 30.5 mm

Product Description

The Eaton 10250T53E is a 10250T series pushbutton contact block. These heavy-duty 30.5 mm pushbuttons are constructed with robust zinc die-casting for durability and longevity. Reliability nibs enhance contact performance, and drainage holes safeguard against liquid accumulation. It offers a comprehensive range of functionality options within a single metal operator housing.

• Heavy-duty zinc die-cast construction
• Durable chrome finish
• Rugged, one-piece metal body

Product Highlights

Eaton's 10250T pushbuttons are ideal for applications demanding unwavering reliability and durability.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: 10250T53E

Technical Specifications

• Product Name: Eaton 10250T pushbutton contact block
• Catalog Number: 10250T53E
• UPC: 782113392172
• Product Length/Depth: 1.8 in
• Product Height: 2.2 in
• Product Width: 1.3 in
• Product Type: Pushbutton accessory
• Type: Contact Block
• Contact configuration: 1 NO (logic level)
• Series: 10250T
• Terminals: Pressure
• Brand: CUTLER HAMMER
• Sub Component: Contact Block
• Component: Accessories
• (Switching-Indication) Size: 30.5 mm
• Size: 30 mm
• Poles: 1
• Volts AC: 600
• Category: Switches
• Configurable Switch Components: Configurable Switch Contact Blocks
• Circuit: SPST-NO
• Manufacturer: Eaton Electrical
• Requires: Switch Body
• Termination Style: Screw Terminal
• Packaging: Box
• Contact Rating @ Voltage: 6A @ 120VAC, 10A @ 110VDC
• Part Status: Active
• Compatible Series: Eaton, 10250T
