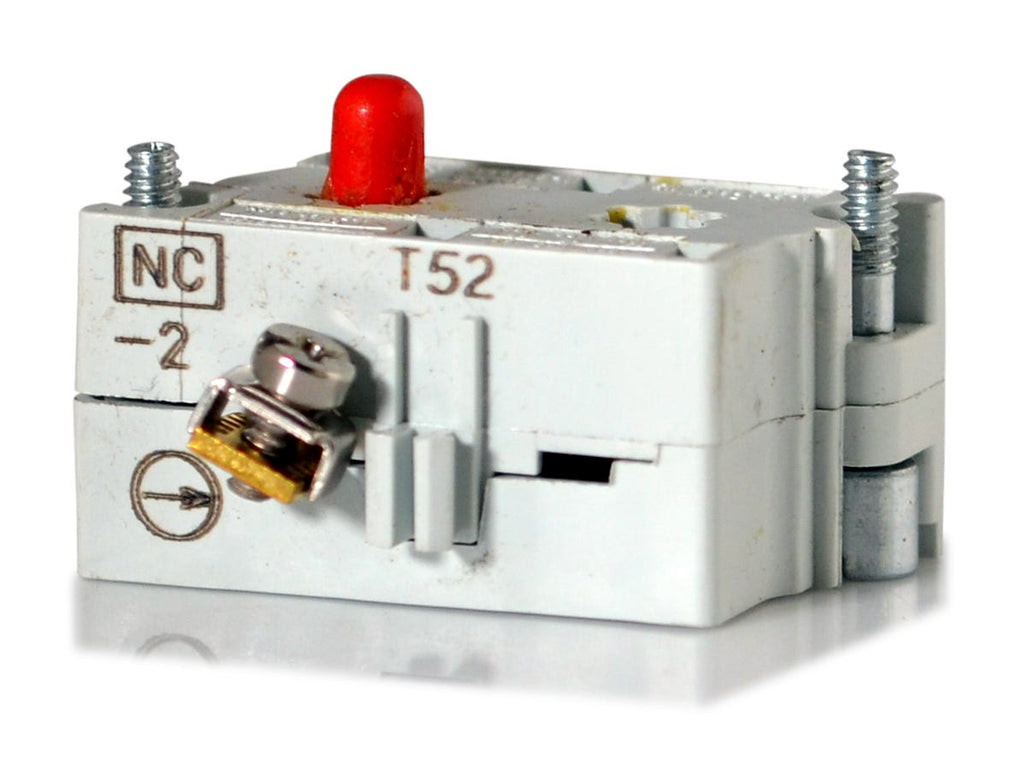

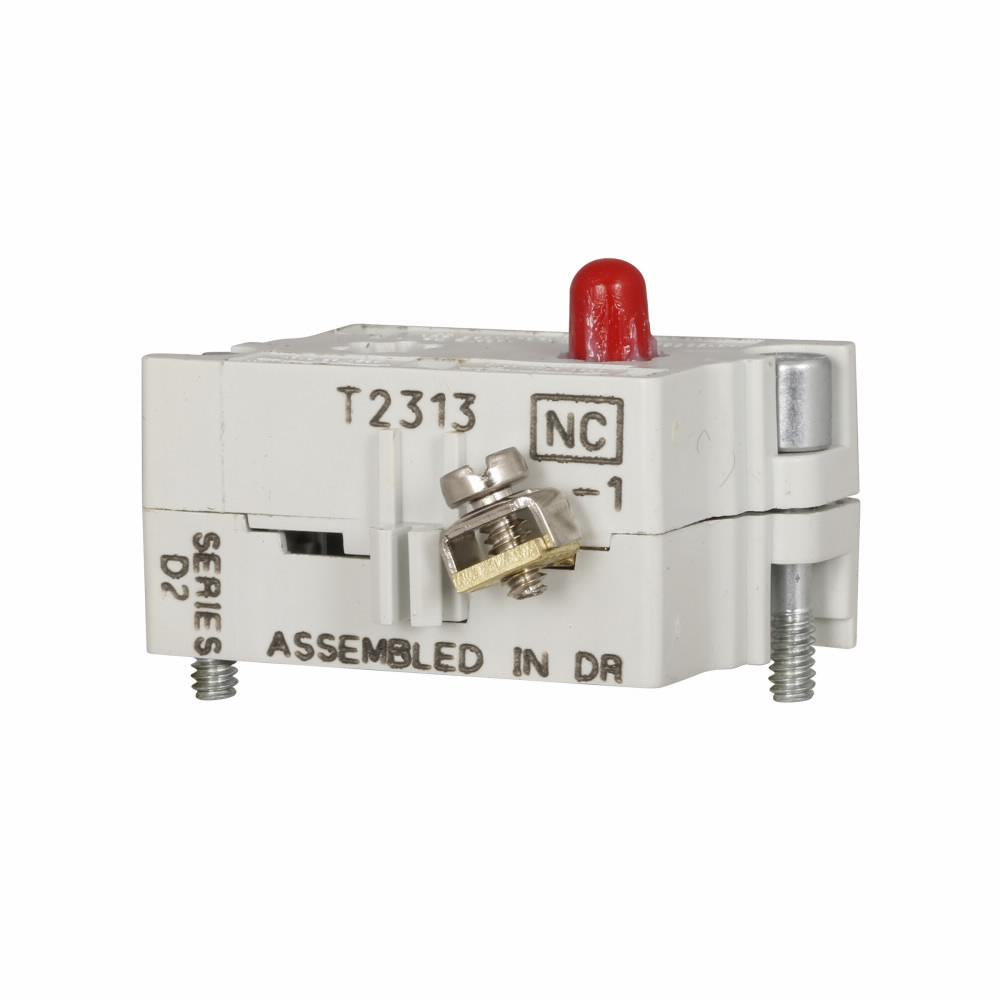

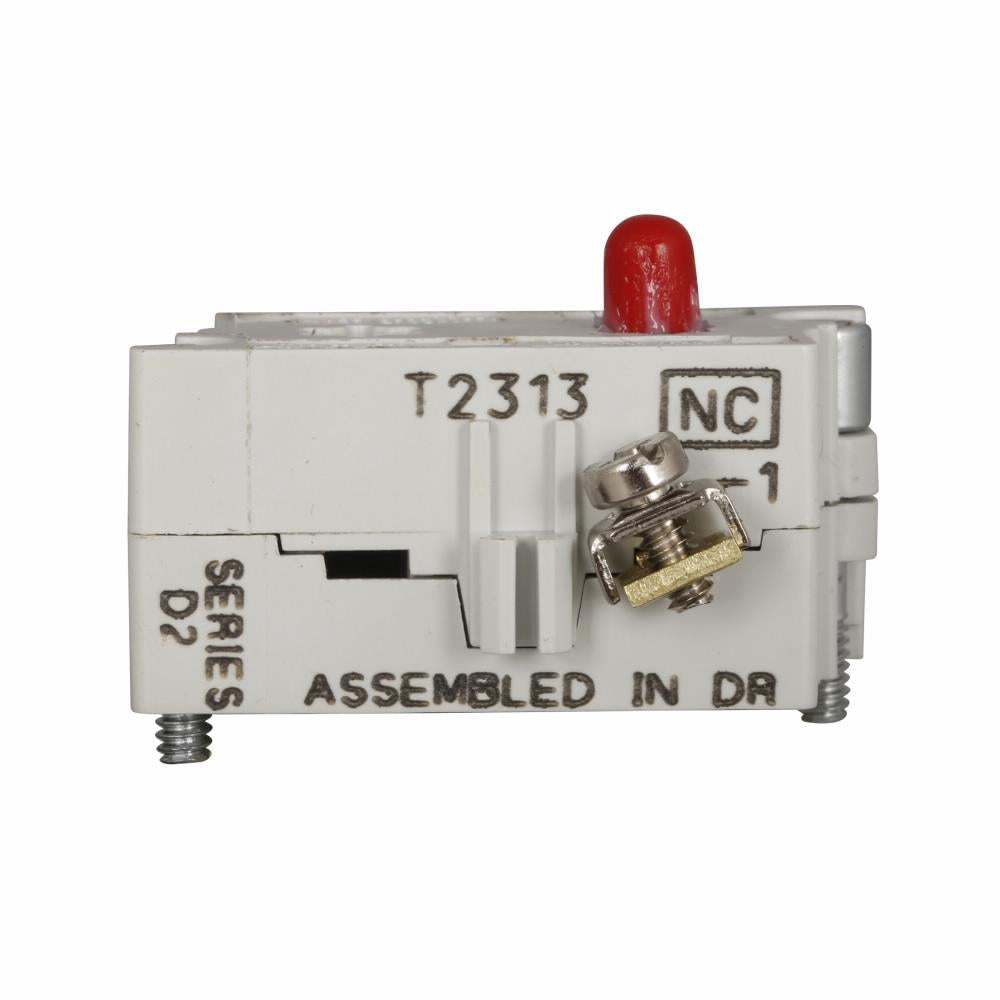

Eaton 10250T52 Contact Block 30.5 mm

Product Description

The EATON 10250T52 is a 30.5 mm contact block featuring heavy-duty zinc die-cast construction. Reliability nibs improve contact reliability even under dry circuit and fine dust conditions. Drainage holes prevent the buildup of liquid inside the operator, which can prevent operation in freezing environments. It has a pressure plate terminal connection type and a standard block type.

• Contact blocks feature enclosed silver contacts with pointed reliability nibs
• Reliability nibs improve contact reliability
• Drainage holes prevent the buildup of liquid

Product Highlights

The EATON 10250T52 contact block is designed for use with 30.5 mm pushbuttons in heavy-duty applications. Its robust construction and reliable contacts ensure consistent performance in demanding environments.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: 10250T52
• Country of Origin: United States

Technical Specifications

• Block Material: Thermoplastic
• Material: Die-Cast Zinc
• Mounting Type: Base
• NEMA Rating: NEMA 1/2/3/3R/4/4X/12/13
• Operator Type: Pushbutton
• Series: 10250T
• Terminal Type: Pressure
• Type: Heavy Duty Standard
• Size: 30.5 mm
• Contact Configuration: 1NC
• Contact Rating: 10 A at 600 VAC
• Contact Material: Silver
• Applications: Stationary Machinery and Equipment Outside Factory - Stationary Machinery and Equipment Outside Factory - Other
• Duty Rating: Heavy Duty
• Height: 1.3 Inch
• Length: 2.2 Inch
• Product Name: Eaton 10250T pushbutton contact block
• Catalog Number: 10250T52
• UPC: 782113203492
• Product Length/Depth: 2.2 in
• Product Height: 1.3 in
• Product Width: 1.9 in
• Compliances: CE Marked
• Certifications: UL Listed CSA Certified
• Product Type: Pushbutton accessory
• Mounting method: Base
• Brand: Eaton
• Amperage: 10A
• Voltage: 600V
• Poles: 1
• Mpn: 10250T52
• Gtin: 782113203492
• Volts AC: 600
• Circuit Arrangement: NC
• Primary brand: Eaton
• Secondary brand: Cutler-Hammer
• Main function: Contacts block
• Functions: Standard contacts block
• Rated current: 6A (120Vac; AC-15) 4A (240Vac; AC-15) 2A (660Vac; AC-15) 1A (125Vdc; DC-13) 0.55A (250Vdc; DC-13) 0.1A (660Vdc; DC-13)
• Normally Closed (NC) auxiliary contacts: 1 NC contacts
• Technical compatibility with: 10250 series
• Manufacturer product status: Commercialized
