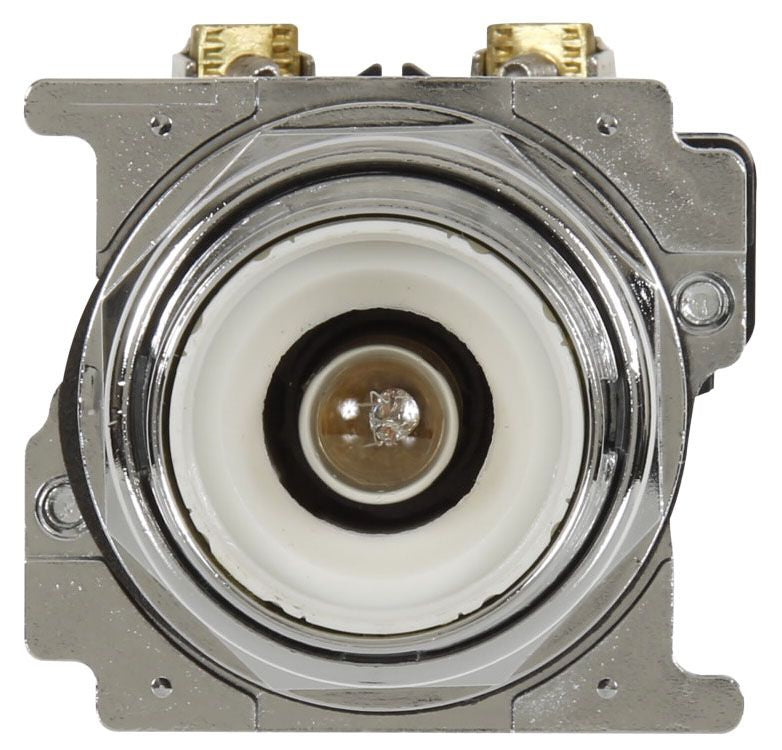

Eaton 10250T476 30.5 Mm Pushbutton Operator

Product Description

The EATON 10250T476 is a 30.5 mm pushbutton operator designed for industrial control panel applications. This operator mounts into a 30.5 mm cutout and serves as the actuating component in a pushbutton station or control enclosure. Licensed electricians and industrial maintenance technicians install this type of device to initiate or interrupt control circuits in machine control, motor control, and process automation systems. At 0.25 pounds, it is a compact, lightweight component suited for panel-mount configurations where space and weight are practical considerations.

The 10250T476 fits into the EATON 10250T series of heavy-duty pushbutton operators, which are a common choice in industrial and commercial electrical control systems. This operator is appropriate for use in manufacturing, processing, and utility control panels where reliable operator input devices are required. It is installed by licensed electricians working on low-voltage control circuits in both new construction and retrofit panel builds.

Key Features

• 30.5 mm mounting size fits standard industrial control panel cutouts
• Lightweight construction at 0.25 pounds for easy panel integration
• Part of the EATON 10250T heavy-duty operator series
• Compact footprint: 3.3 inches x 2.4 inches x 2.1 inches

Compatibility

Designed as an OEM-style replacement or addition for industrial control panels and enclosures that accept 30.5 mm pushbutton operators.

Installation Notes

Installation should be performed by a qualified electrician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize and lock out the control panel before installing or replacing any operator component. Verify that the panel cutout is 30.5 mm before mounting. Secure the operator body according to manufacturer torque guidance found in the product documentation.

Technical Specifications

• Mounting Size: 30.5 mm
• Dimensions (L x W x H): 3.3 inches x 2.4 inches x 2.1 inches
• Weight: 0.25 pounds
• UPC: 78211322606

Standard Information

• Brand: EATON
• Manufacturer Part Number: 10250T476
