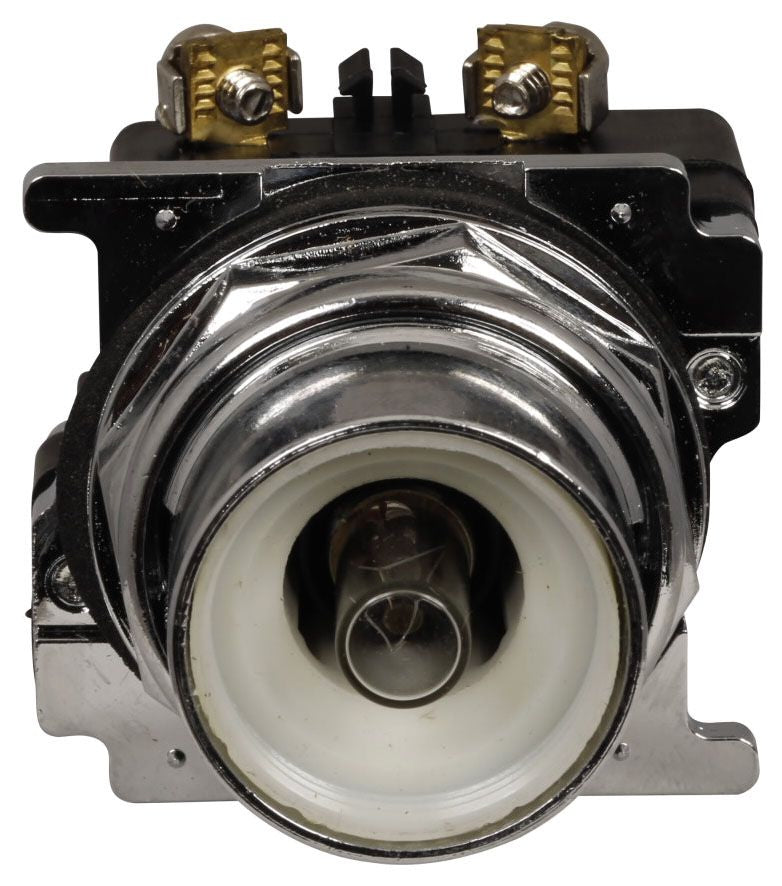

Eaton 10250T471 30.5mm Pushbutton Operator

Product Description

The EATON 10250T471 is a 30.5mm pushbutton operator designed for use in industrial control and panel applications. It serves as the actuator component of a momentary or maintained pushbutton assembly, mounting into a compatible enclosure or panel cutout and interfacing with contact blocks to complete a control circuit. Electricians and panel builders install this type of operator during new panel construction or as a field replacement when an existing operator is worn, damaged, or being upgraded. The 30.5mm body diameter is a widely used industrial standard sizing.

This operator is suited for industrial control panels, machine tool applications, and general-purpose electrical enclosures where a 30.5mm format pushbutton is specified. It is intended for use with compatible contact blocks and legend plates within the EATON 10250T series platform. Installation is typically performed by licensed electricians or qualified control panel assemblers working under NFPA 79 or NEC guidelines.

Key Features

• 30.5mm body diameter matches standard industrial panel cutout sizing
• Designed for use with compatible 10250T series contact blocks
• Compact form factor suitable for dense panel layouts
• Lightweight construction at 0.2 pounds

Compatibility

Designed as an OEM-style replacement or new-installation operator for 30.5mm industrial control panel assemblies within the EATON 10250T series platform.

Installation Notes

Installation should be performed by a licensed electrician or qualified panel assembler. De-energize and lock out the control panel before removing or installing any operator or contact block. Verify that the panel cutout diameter matches the 30.5mm body before mounting. Follow applicable NEC and NFPA 79 requirements for industrial control panel wiring and assembly.

Technical Specifications

• Body Diameter: 30.5mm
• Package Dimensions (L x W x H): 2.4 inches x 2.1 inches x 3.3 inches
• Weight: 0.2 pounds
• UPC: 78211322602

Standard Information

• Brand: EATON
• Manufacturer Part Number: 10250T471
