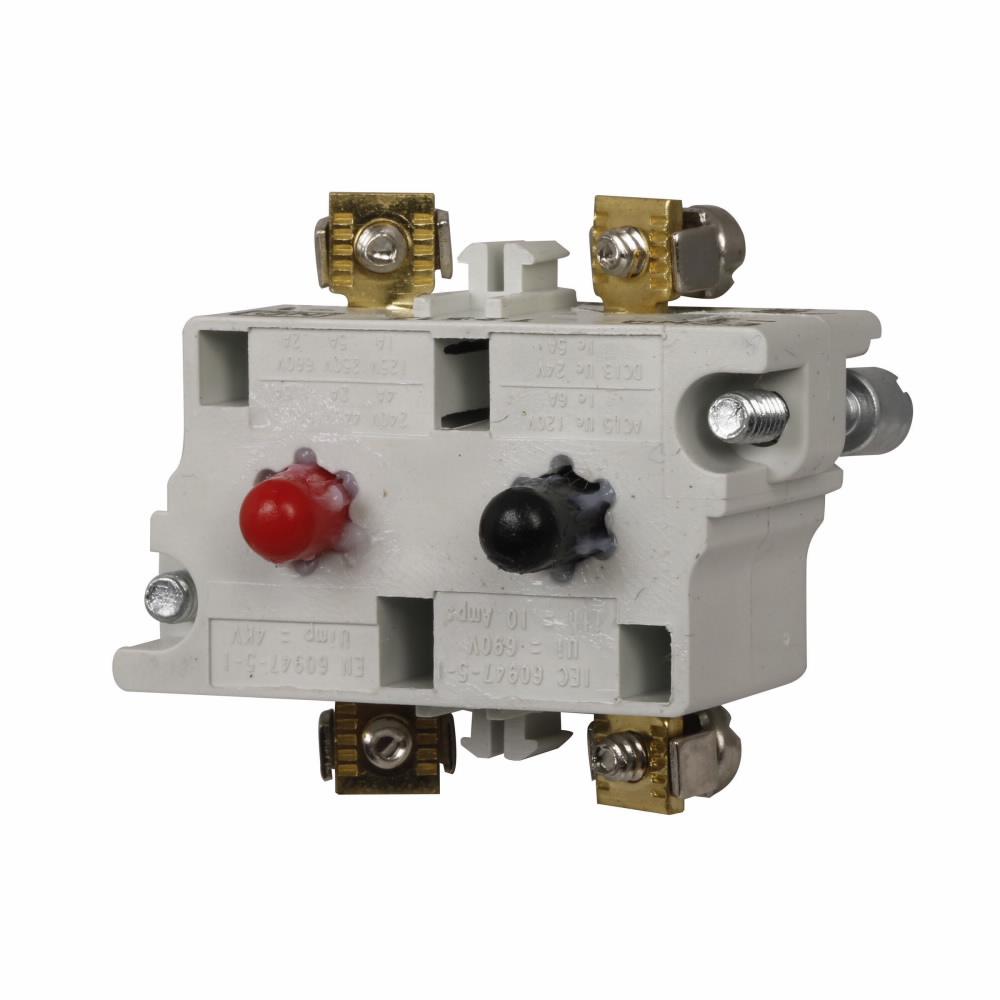

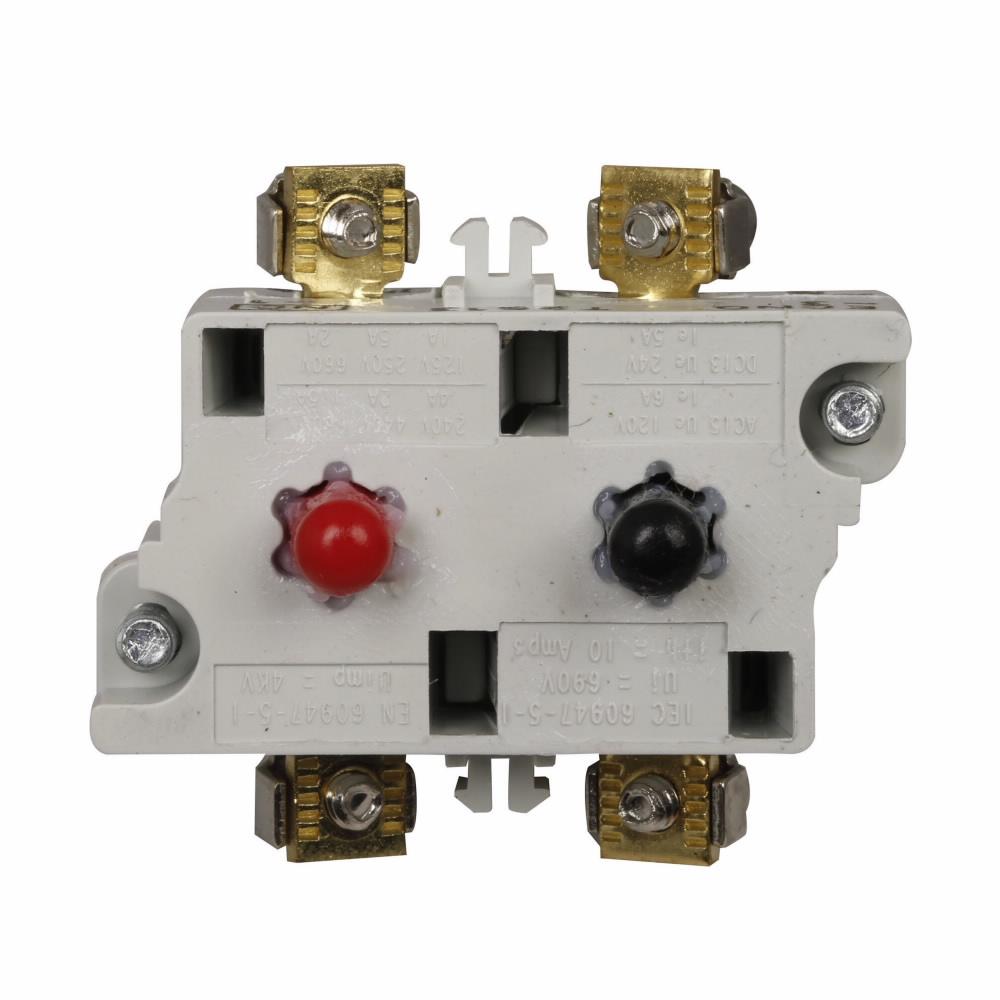

Eaton 10250T47 Contact Block

Product Description

The Eaton 10250T47 contact block features a heavy-duty zinc die-cast construction. Reliability nibs improve contact reliability even under dry circuit and fine dust conditions. Drainage holes prevent the buildup of liquid inside the operator, which can prevent operation in freezing environments. It secures with compatible operator switches, pilot lights, and other switches to connect input and output wires.

• Stack up to 6-blocks unless otherwise noted
• Contact Configuration: 1ECNO-1NC
• NEMA 3/3R/4/4X/12/13 rated

Product Highlights

This 30.5 mm contact block is ideal for applications where reliability and durability are required.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: 10250T47
• Country of Origin: Dominican Republic

Technical Specifications

• Block Material: Thermoplastic
• Dimensions: 1.9 in L x 1.3 in W x 2.2 in H
• Enclosure Type: IP65
• Material: Die-Cast Zinc
• Mounting Type: 4-Stack
• NEMA Rating: NEMA 3/3R/4/4X/12/13
• Operator Type: Pushbutton
• Series: 10250T
• Terminal Type: Pressure
• Type: Heavy Duty Special Purpose
• Size: 30.5 mm
• Contact Configuration: 1ECNO-1NC
• Contact Rating: 10 A at 600 VAC, 5 A at 250 VDC
• Contact Material: Silver
• Action: Momentary
• Product Length/Depth: 1.9 in
• Product Height: 2.2 in
• Product Width: 1.3 in
• Product Weight: 0.1 lb
• Compliances: CE Marked
• Certifications: CSA Certified
• UL Listed: UL Listed
• Catalog Notes: Early closing NO and standard NC. Stack up to 6 blocks unless otherwise noted.
• Product Type: Pushbutton accessory
• Compatible with Series: 10250T; E34
• Compatible Operator: Push Button
• AC Contact Rating: 10 A @ 660 V
• DC Contact Rating: 10 A @ 600 V
• Includes Mounting Block: Mounting Block Included
• NEMA Contact Rating Designation: A600/P600
• Panel Mounting Hole Diameter: 30 mm
• Standards: CE; CSA; UL Listed
• Switch Action: Momentary/Make Before Break
• Terminal Connection Type: Screw Clamp
• Amperage: 10
• Voltage: 660VAC, 600VDC
• Approval: UL, CSA, CE
• Terminal Connection: Pressure
• Length (in): 1.9
• Width (in): 1.3
• Height (in): 2.2
• For Use With: 30.5mm Push Buttons
• Duty Rating: Heavy Duty
