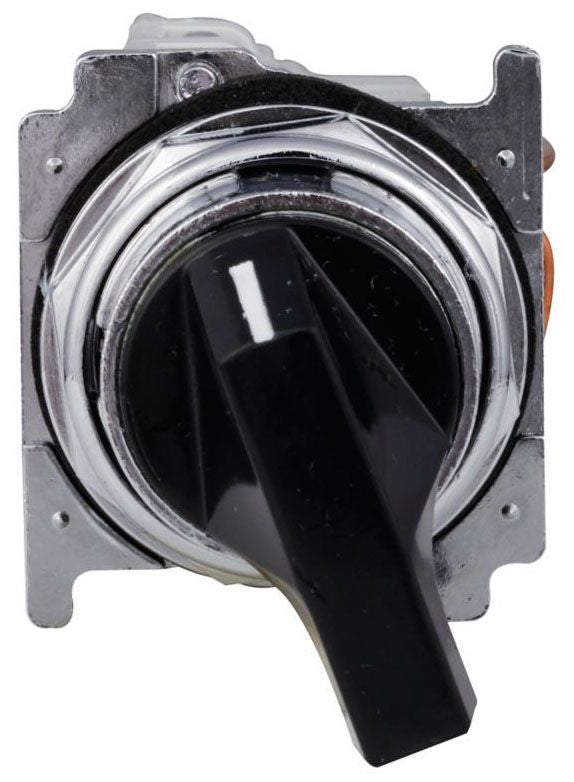

Eaton 10250T46LB Lever Type Knob Operator

Product Description

The EATON 10250T46LB is a lever type knob operator designed for use with 10250T series industrial control devices. This component serves as the actuating mechanism that engages the switch contact block beneath it, translating a rotary lever motion into a reliable electrical switching action. It is a replacement or new-installation operator head suited for panel-mount control stations found in industrial and commercial electrical environments. Licensed electricians and industrial maintenance technicians are the typical installers of this type of component.

This lever type knob operator is used in industrial control panel applications where rotary-style actuation is required. It fits into the 10250T series 30mm mounting footprint commonly found in factory automation, motor control, and machine tool panels. It is appropriate for both new panel builds and field replacement of worn or damaged operator heads on existing control stations.

Key Features

• Lever type knob design provides rotary actuation for 10250T series contact blocks
• 30mm series mounting footprint for standard industrial panel cutouts
• Compact and lightweight at 0.4 pounds for easy panel integration
• Designed as an OEM-style operator head for industrial control stations

Compatibility

Designed as an OEM-style replacement operator head for EATON 10250T series industrial control and pilot device stations using 30mm panel-mount configurations.

Installation Notes

Installation should be performed by a qualified electrician in accordance with applicable NEC requirements and local codes. De-energize the control panel and verify the absence of voltage before removing or installing any operator head or contact block assembly. Ensure the operator head is fully seated and secured before restoring power to the panel.

Technical Specifications

• Weight: 0.4 pounds
• UPC: 78211345841

Standard Information

• Brand: EATON
• Manufacturer Part Number: 10250T46LB
