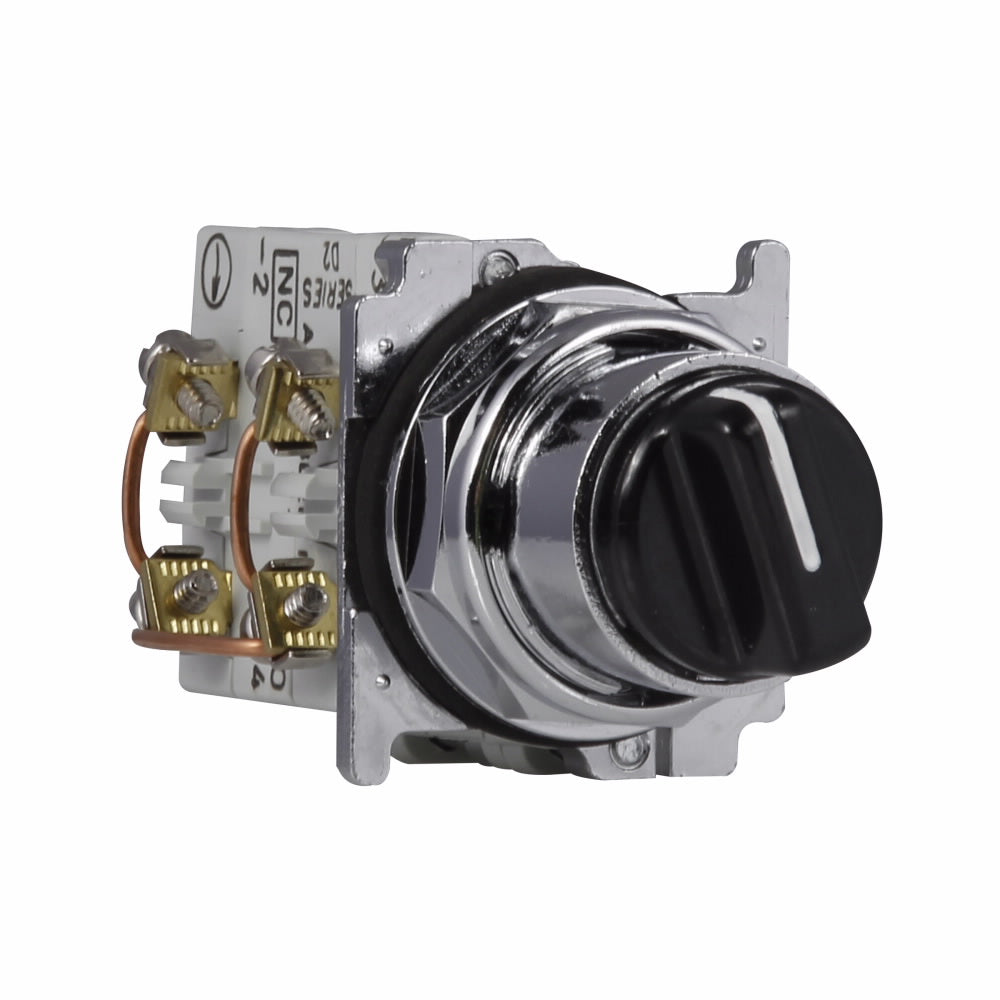

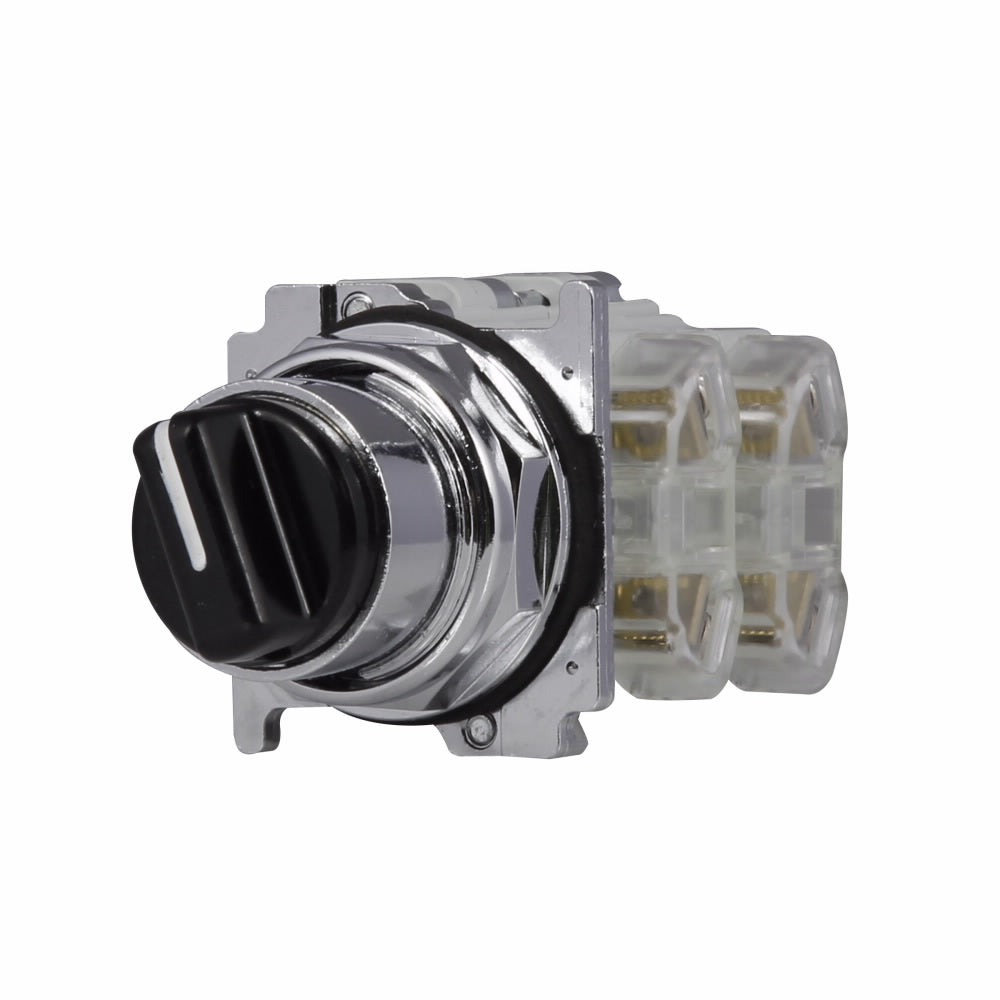

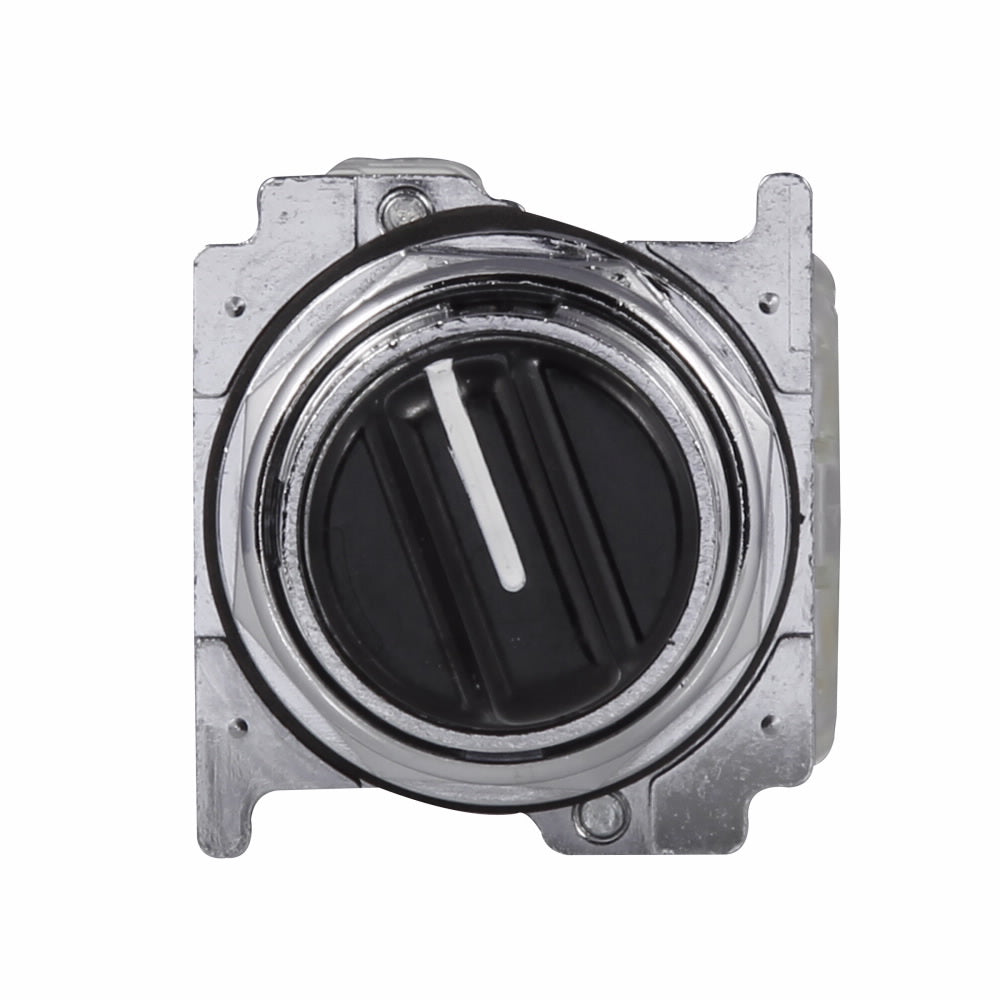

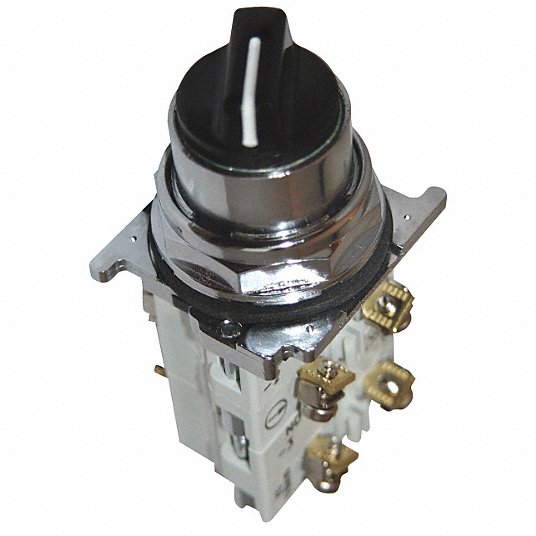

Eaton 10250T46KB Selector Switch 30.5 mm

Product Description

The EATON 10250T46KB is a 30.5 mm selector switch featuring heavy-duty zinc die-cast construction. Reliability nibs improve contact reliability, even under dry circuit and fine dust conditions. Drainage holes prevent liquid buildup inside the operator, preventing operation in freezing environments. It is ideal for automation and logic control equipment applications.

• Enclosed silver contacts with reliability nibs
• Diaphragm seals with drainage holes
• Grounding nibs on the operator casing

Product Highlights

This heavy-duty, non-illuminated selector switch features a maintained contact mode, a 40-degree throw, and a polished chrome metal bezel/housing.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: 10250T46KB
• Country of Origin: Dominican Republic

Technical Specifications

• Actuator: Knob
• Bezel/Housing: Polished Chrome Metal
• Contact Mode: Maintained
• Enclosure Rating: NEMA 3/3R/4/4X/12/13/IP65
• Material: Die Cast Zinc
• Number of Positions: 4
• Series: 10250T
• Throw: 40 deg
• Type: Heavy Duty
• Size: 30.5 mm
• Contact Configuration: 2NO-2NC
• Product Length/Depth: 2.6 in
• Product Height: 4.7 in
• Product Width: 2.2 in
• Product Weight: 0.4 lb
• Compliances: CE Marked
• Certifications: CSA Certified UL Listed
• Illumination: Non-illuminated
• NEMA Rating: NEMA 3, NEMA 3R, NEMA 4, NEMA 4X, NEMA 12, NEMA 13
• IP Rating: IP65
• AC Contact Rating: 10 A @ 600 V
• DC Contact Rating: 5 A @ 250 V
• Operator Head Color: Black
• Operator Head Material: Polymer
• Panel Mounting Hole Diameter: 30 mm
• Standards: CE; CSA; UL Listed
• Switch Head Type: Short Lever
• Contacts: 1-NC 1-NO 1-NO 1-NC
• Contact Rating: 10A/600V AC
• Terminals: Standard Screw
• Application: Automation and Logic Control Equipment Applications
• Part #: 10250T46KB
• Category: Selector Switch
