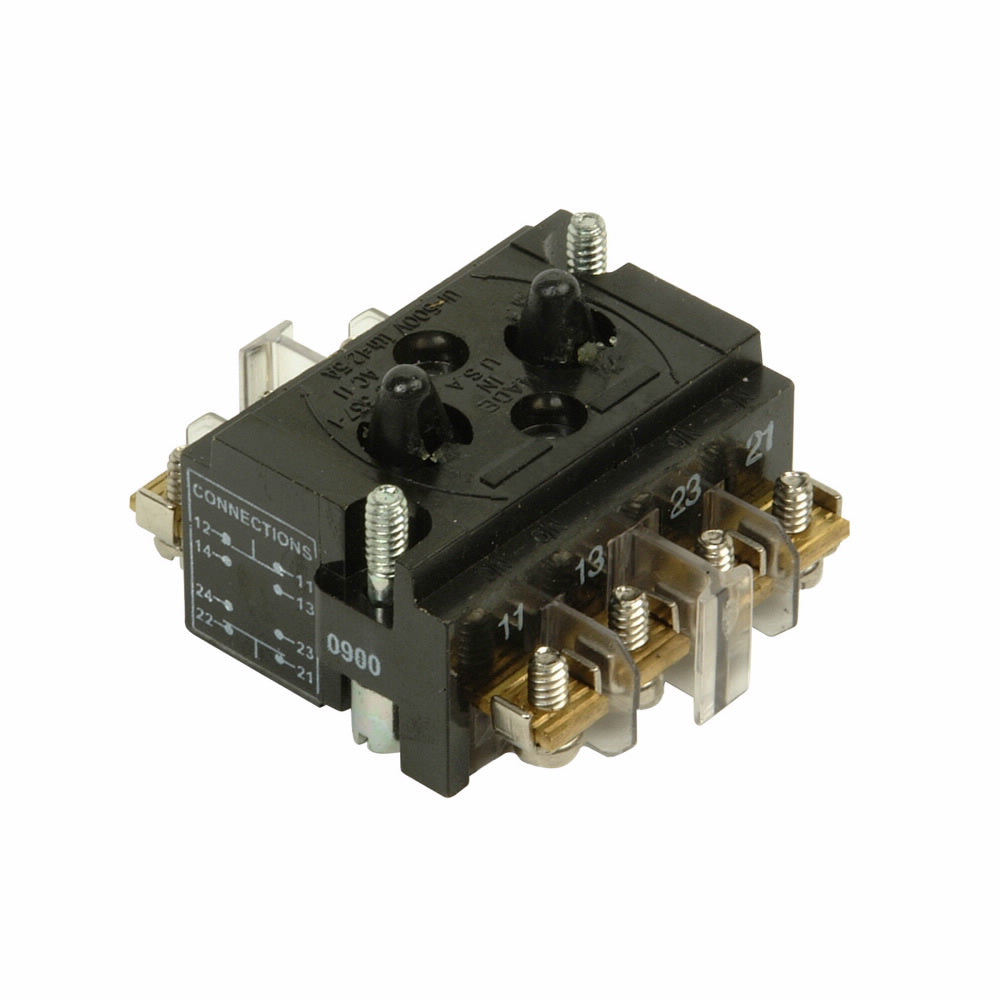

Eaton 10250T44 Contact Block

Product Description

The Eaton 10250T44 is a contact block from the 10250T line of 30.5 mm pushbuttons featuring heavy-duty zinc die-cast construction. Reliability nibs improve contact reliability even under dry circuit and fine dust conditions. It has a contact rating of 10A at 600VAC, 5A at 250VDC and a pressure terminal connection.

• Contact blocks feature enclosed silver contacts with pointed reliability nibs
• To ensure reliable switching, these nibs bite through oxide, which can form on silver contacts, eliminating the need for expensive logic level blocks for most applications
• Four circuits in single block depth, rated 300V max

Product Highlights

The Eaton 10250T44 contact block features enclosed silver contacts, reliable switching, and a heavy-duty zinc die-cast construction.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: 10250T44

Technical Specifications

• Block Material: Thermoplastic
• Enclosure Type: IP65
• Material: Die-Cast Zinc
• Mounting Type: 4-Stack
• NEMA Rating: NEMA 3/3R/4/4X/12/13
• Operator Type: Pushbutton
• Series: 10250T
• Terminal Type: Pressure
• Type: Heavy Duty Standard
• Size: 30.5 mm
• Contact Configuration: 2NO-2NC
• Contact Rating: 10 A at 600 VAC, 5 A at 250 VDC
• Contact Material: Silver
• Catalog Number: 10250T44
• UPC: 782113208275
• Product Length/Depth: 2 in
• Product Height: 2.3 in
• Product Width: 2 in
• Product Type: Pushbutton accessory
• Amperage: 10
• Voltage: 600VAC, 250VDC
• Poles: 2
• Approval: CE, UL, CSA
• Terminal Connection: Pressure
• Nema Rating: 3
• Length (in): 2
• Width (in): 2
• Height (in): 2.3
• Mpn: 10250T44
• Upc: 782113208275
• Gtin: 782113208275
