Eaton 10250T430 Pushbutton 30.5 mm

Product Description

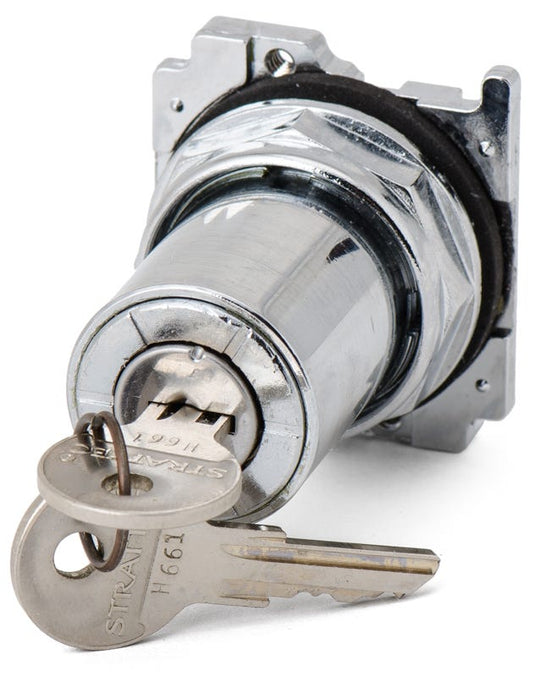

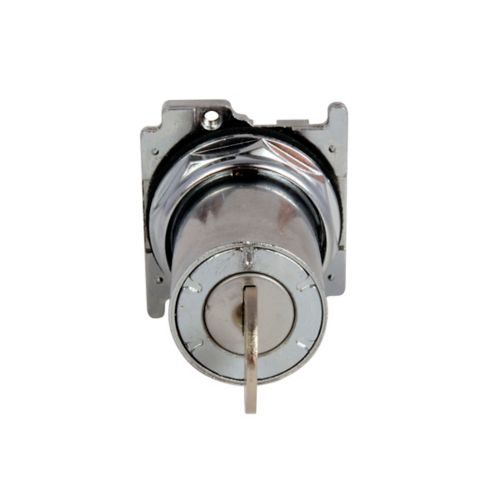

The Eaton 10250T430 is a 30.5 mm heavy-duty pushbutton with a key-operated, silver actuator and chrome bezel. It features 3 keyed positions (lock up, free momentary, lock down) and is non-illuminated. This pushbutton is suitable for automation and logic control equipment and stationary machinery. It is NEMA 3, 3R, 4, 12, and 13 rated.

• Key removal in all positions
• Heavy-duty zinc die cast construction
• Drainage holes prevent liquid buildup

Product Highlights

The Eaton 10250T430 offers a robust and reliable solution for heavy-duty applications requiring secure and versatile pushbutton control.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: 10250T430
• Country of Origin: Dominican Republic

Technical Specifications

• SKU: 10250T430
• Product Name: Eaton 10250T pushbutton
• Catalog Number: 10250T430
• UPC: 782113225920
• Product Length/Depth: 1.9 in
• Product Height: 2.3 in
• Product Width: 1.9 in
• Product Type: Pushbutton
• Type: 30.5 mm, Heavy-Duty
• Actuator color: Silver
• Bezel: Chrome
• Actuator Type: Key Operated
• Operating mode: 3 keyed positions (lock up, free momentary, lock down)
• Rating: NEMA 3, NEMA 3R, NEMA 4, NEMA 12, NEMA 13
• Illumination: Non-illuminated
• Series: 10250T
• Brand: Eaton
• Approval: UL, CSA, CE
• Nema Rating: 3, 3R, 4, 12, 13
• Length (in): 1.9
• Width (in): 1.9
• Height (in): 2.3
• Duty Rating: Heavy Duty
• Action: 3 Keyed Positions
• Mpn: 10250T430
• Gtin: 782113225920
• Manufacturer: Eaton
• Application: Automation and Logic Control Equipment, Stationary Machinery and Equipment Outside Factory Applications
• Operator Type: Keyed
• Enclosure Type: NEMA 3/3R/4/12/13
• Size: 30.5
• Manufacturer Series: 10250T
• Country of Origin: Dominican Republic - Subject to change
• Operating Cap: Keyed, Remove all Positions
• Bezel/Housing: Metal, Chrome
• Positions: 3
• Contact Mode: Maintained
