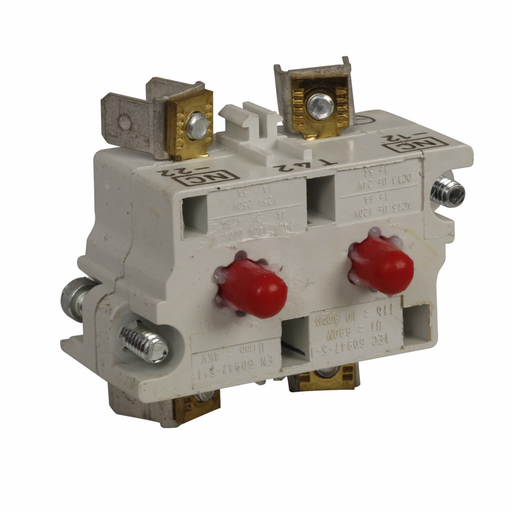

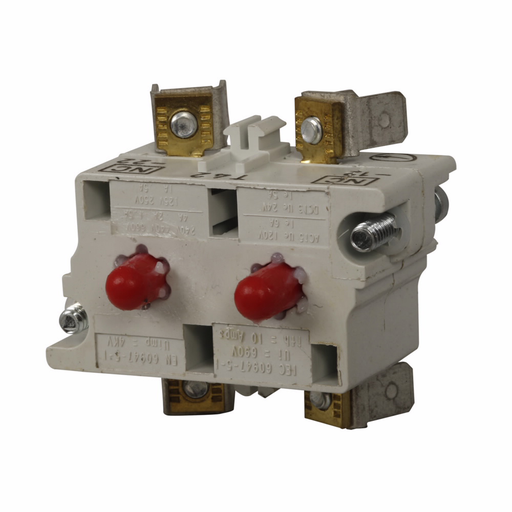

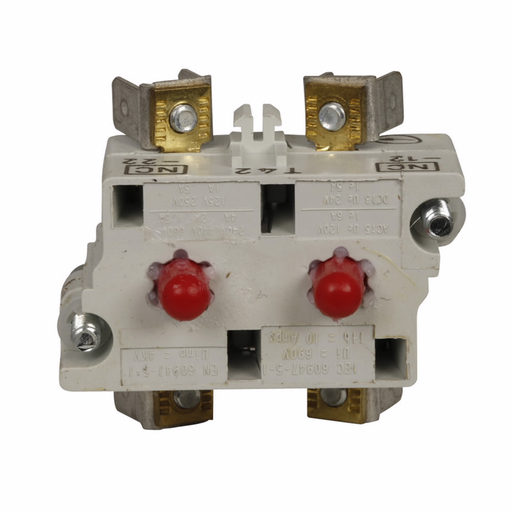

Eaton 10250T42 Pushbutton Contact Block 600 VAC 10 Amp

Product Description

The Eaton 10250T42 is a pushbutton contact block from the 10250T series. This standard contact block has a 2NC configuration and spade terminals. It is rated for heavy-duty applications and suitable for stationary machinery and equipment outside factory settings.

• Contact Configuration: 2 NC (standard)
• Terminal Type: Spade
• Duty Rating: Heavy Duty

Product Highlights

The Eaton 10250T42 contact block is CE Marked, UL Listed, and CSA Certified.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: 10250T42
• Country of Origin: DOM

Technical Specifications

• Applications: Stationary Machinery and Equipment Outside Factory
• Contact Configuration: 2 NC (standard)
• Duty Rating: Heavy Duty
• Size: 30.5 mm
• Standard: CE Marked,CSA,UL
• Terminal Type: Spade
• Type: Standard
• Brand: Eaton
• Product Name: Eaton 10250T pushbutton contact block
• Catalog Number: 10250T42
• Product Length/Depth: 1.8 in
• Product Height: 2 in
• Product Width: 1.4 in
• Series: 10250T
• Terminals: Spade
• Amperage: 10
• Voltage: 660VAC/VDC
• Poles: 2
• Mounting Type: Base
• Approval: UL, CSA, CE
• Terminal Connection: Spade
• Nema Rating: 3, 3R, 4, 4X, 12, 13
• Length (in): 1.8
• Width (in): 1.4
• Height (in): 2
• For Use With: 30.5mm Push Buttons
• Mpn: 10250T42
• Connector Type: Screw
• Number of Items: 1
• Manufacturer: Eaton Cutler-Hammer
• Manufacturer Part Number: 10250T42
• Unit of Measure: EA
• Volts AC: 600
• Package Qty: 1.0000
• Manufacture: EATON
• Mfr Catalog Number: 10250T42
• Product Group: GH01A
• UNSPSC: 39122221
• Product Category: Standard Industrial Conta
• Commodity Code: 4227
• Country of Origin: DOM
