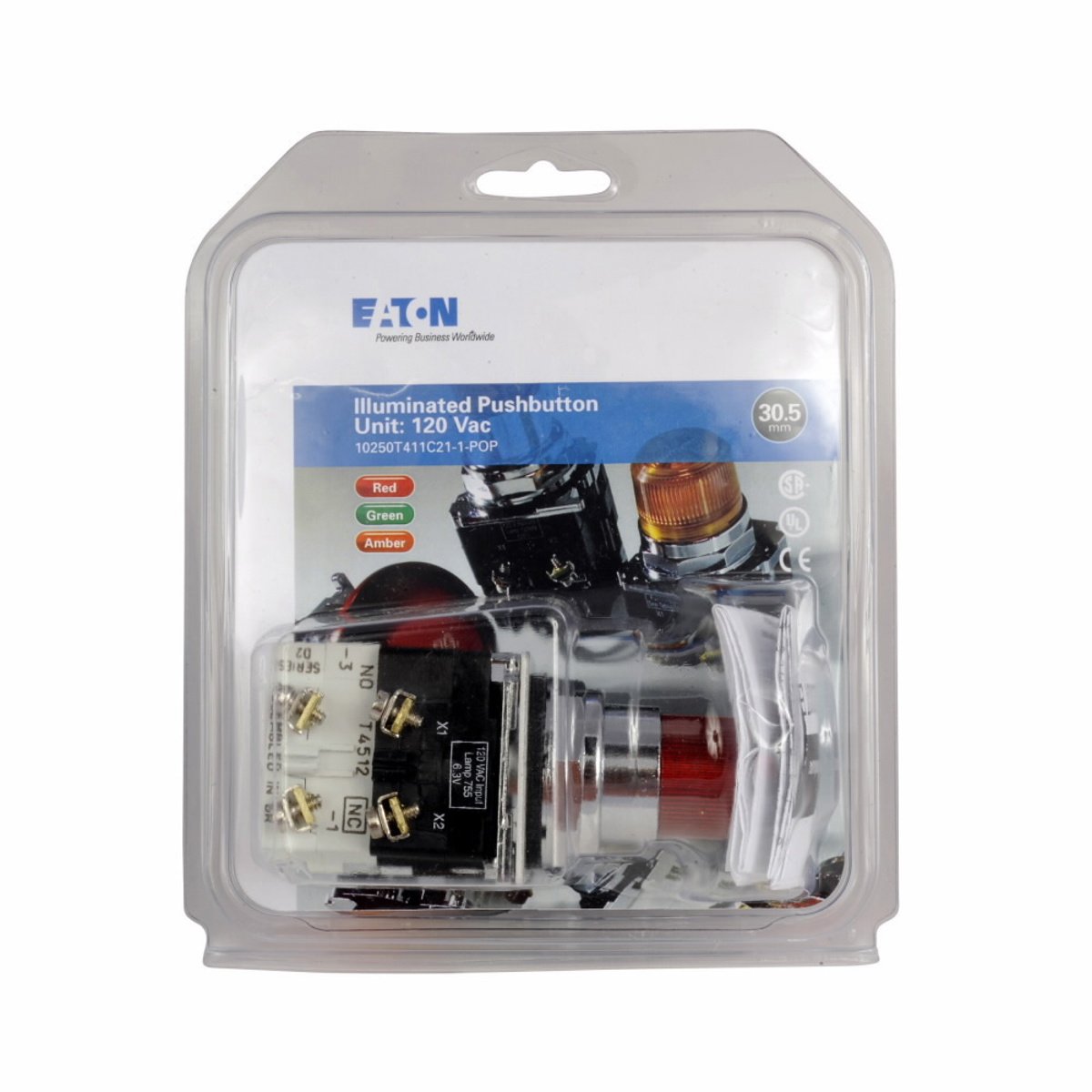

EATON 10250T411C21-1-POP Pushbutton Illuminated 30.5 mm 1NO-1NC Contact

Product Description

EATON 10250T411C21-1-POP is a pushbutton featuring a diameter of thirty point five millimeters designed for various industrial control applications. This heavy-duty illuminated pushbutton is made from die-cast zinc, ensuring durability and reliability. It operates with a momentary contact mode and is equipped with NEMA-rated protection to withstand environmental elements.

• Die-cast zinc construction for durability.
• Momentary contact configuration with one normally open and one normally closed contact.
• Waterproof design suitable for harsh environments.

Product Highlights

Ideal for commercial and institutional settings, this pushbutton includes reliability nibs to improve contact performance and drainage holes to prevent liquid buildup.

Product Information

Standard Information

• Manufacturer: EATON
• Part Number: 10250T411C21-1-POP

Technical Specifications

• Actuator: Extended Button
• Material: Die-Cast Zinc
• Contact Configuration: 1NO-1NC
• Contact Rating: 10 A at 600 VAC, 5 A at 250 VDC
• Lamp Type: Incandescent
• Enclosure Type: NEMA 3/3R/4/4X/12/13/IP65
• Environmental Conditions: 10 to 150 deg F Operating Temperature, 95% Relative Humidity at 60 deg C
• Size: 30.5 mm
